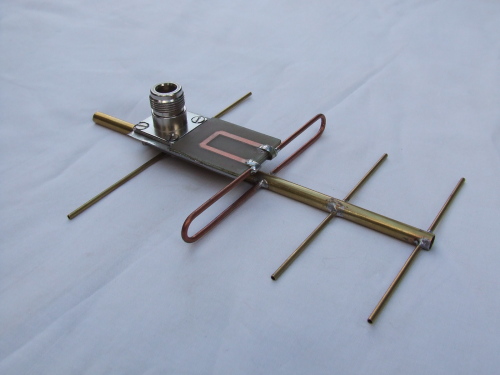

Yagi 1,345 GHz

Started by Admin,

Posted

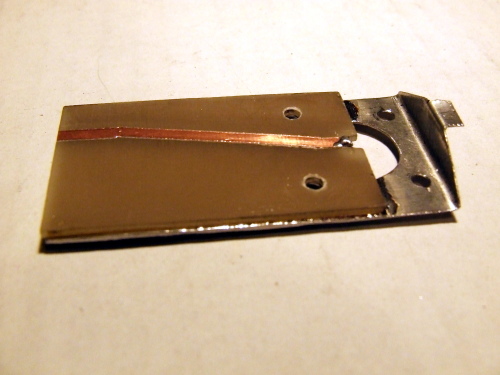

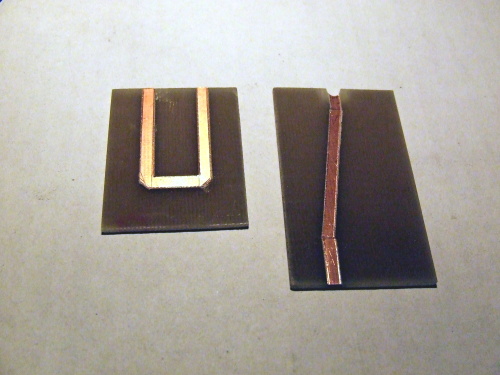

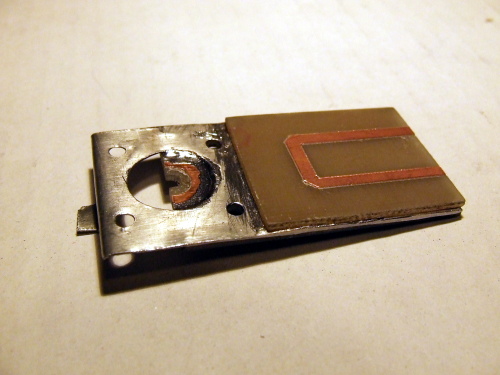

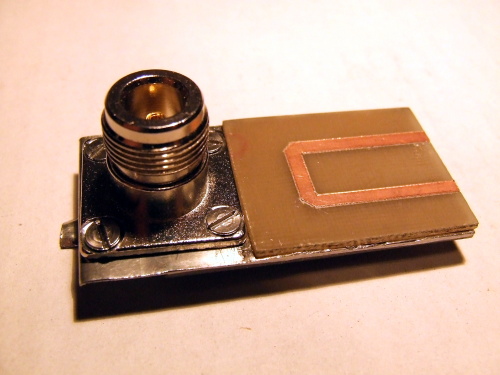

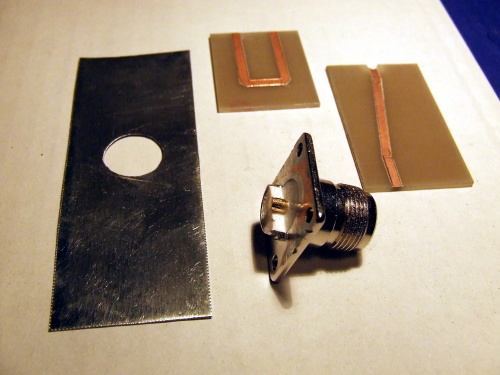

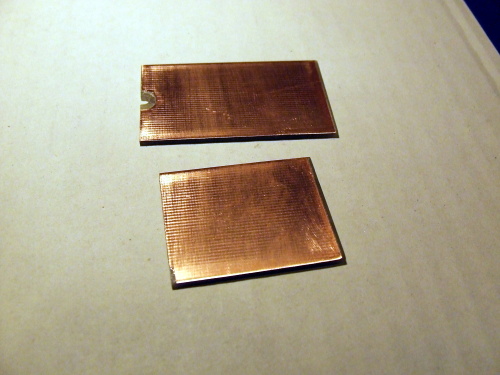

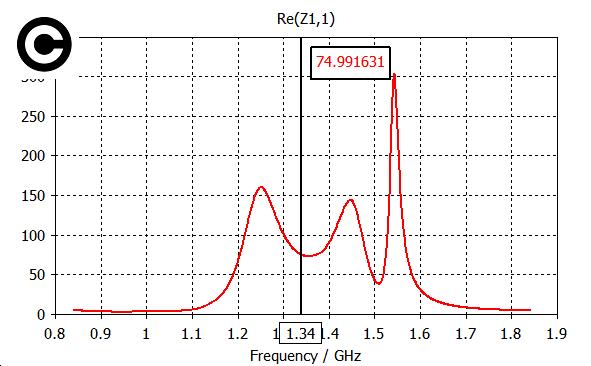

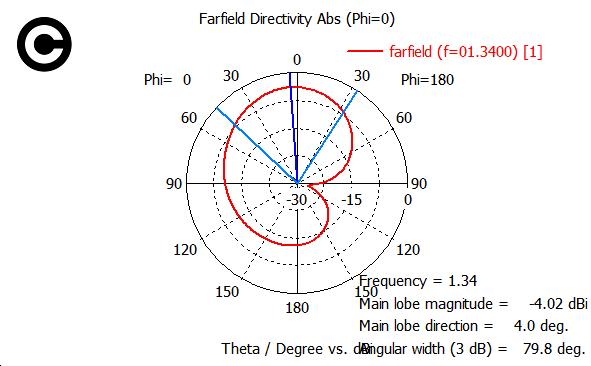

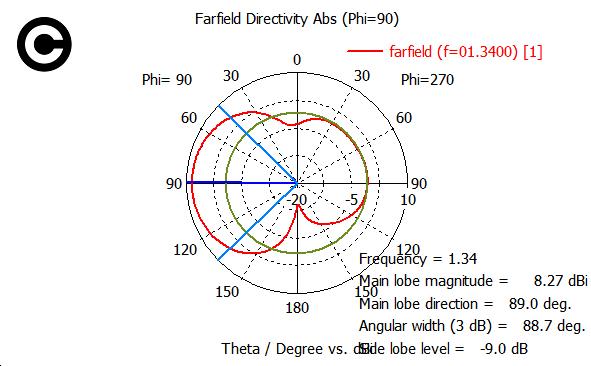

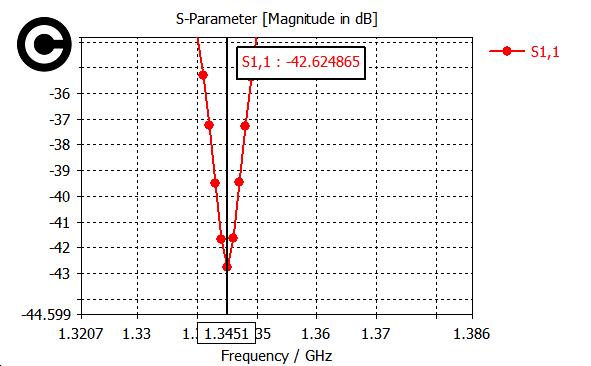

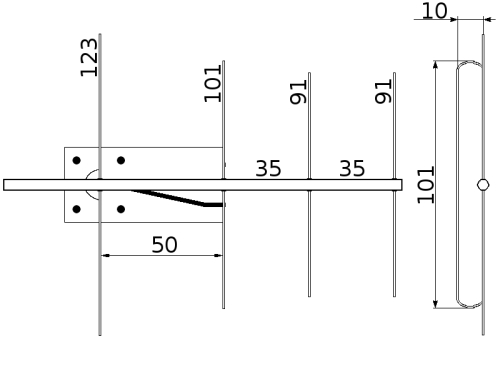

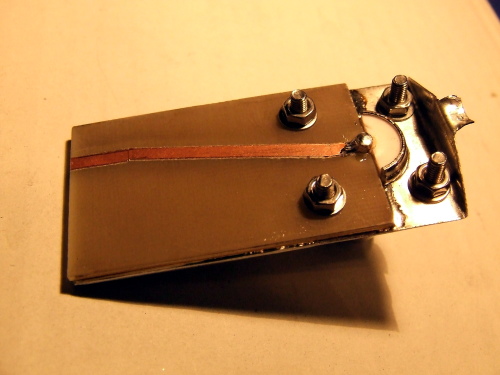

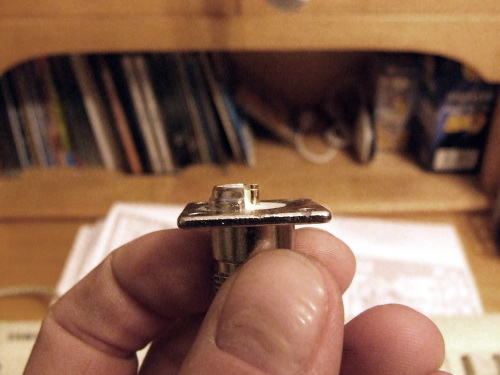

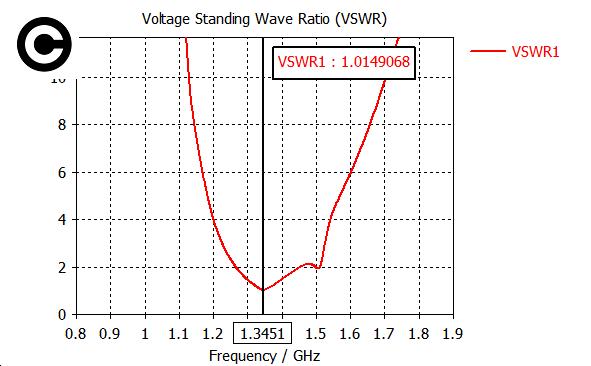

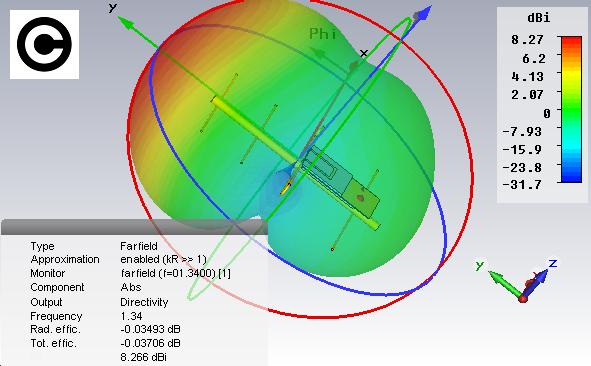

This yagi antenna it pretty simple to execute, but it is worth making an adapting loop still coping lambda / 2,by  a double plated pcb circuit























Share this post

Link to post
Share on other sites

Posted

admin, please make me an antenna yagi that covers a frequency of 800-2200 mhz ...

Share this post

Link to post
Share on other sites

Posted

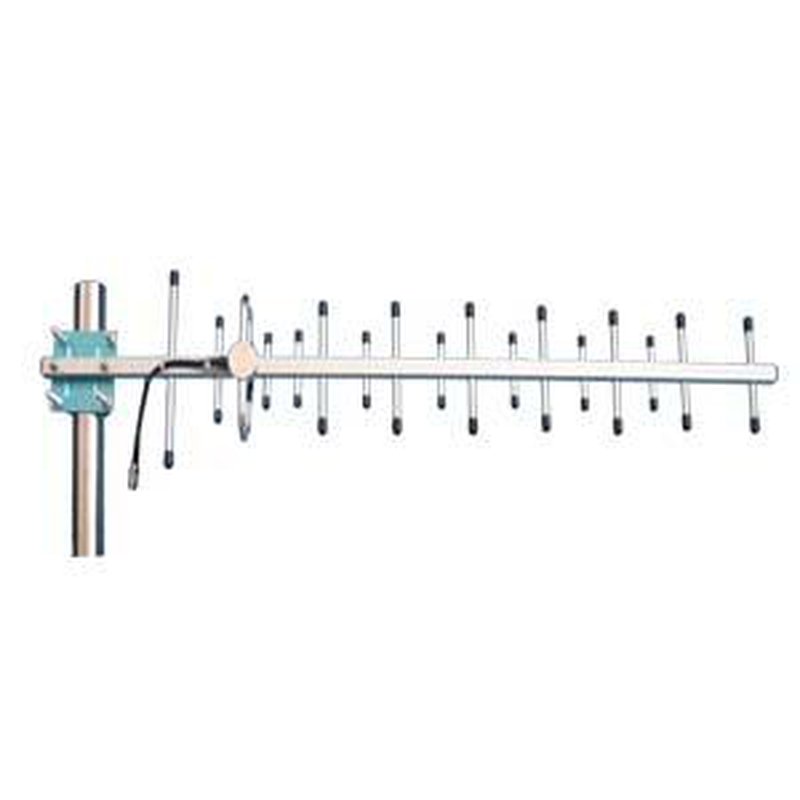

,,,for this frequency band, I don't think it's possible...!!!

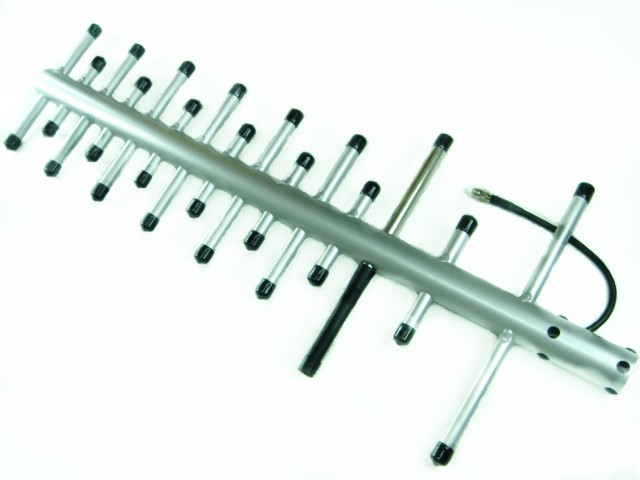

,,,maybe only a Vivaldi antenna....!!!

Share this post

Link to post
Share on other sites

Posted

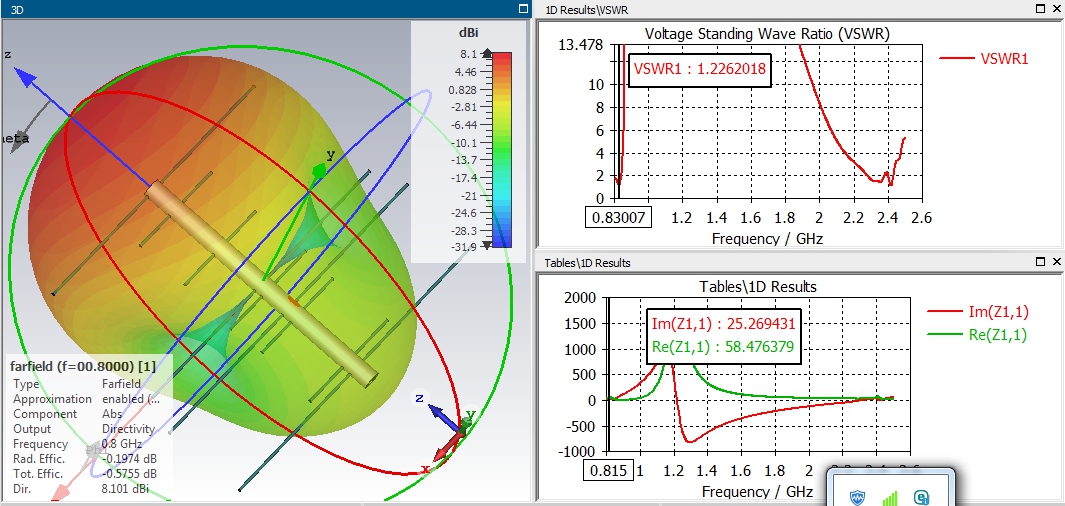

Or maybe you want to say something like that.,,(dual frequency=814MHz-2442MHz)

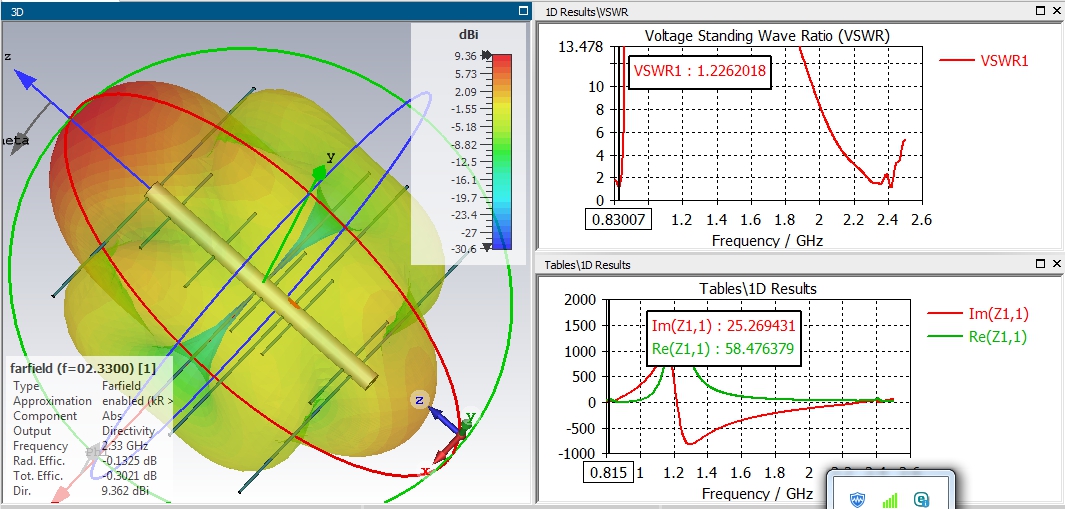

265 (1).jpg

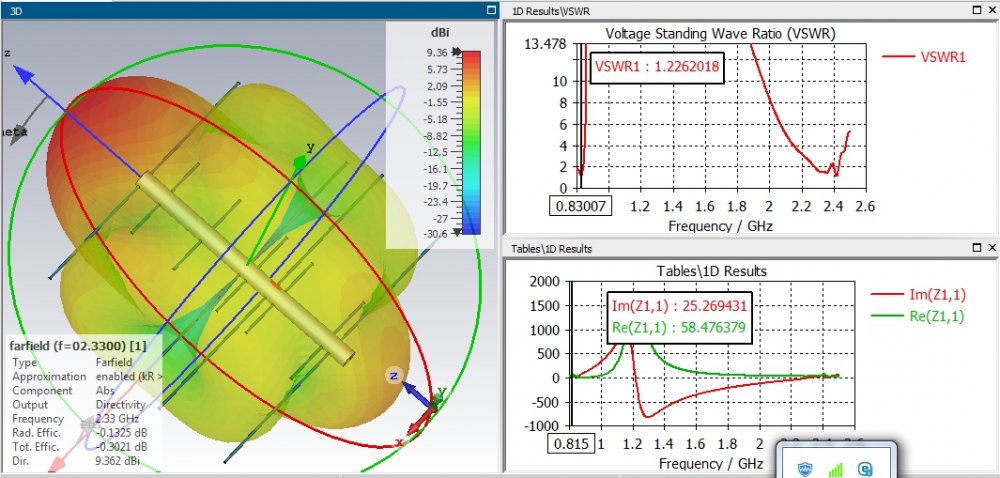

265 (2).jpg

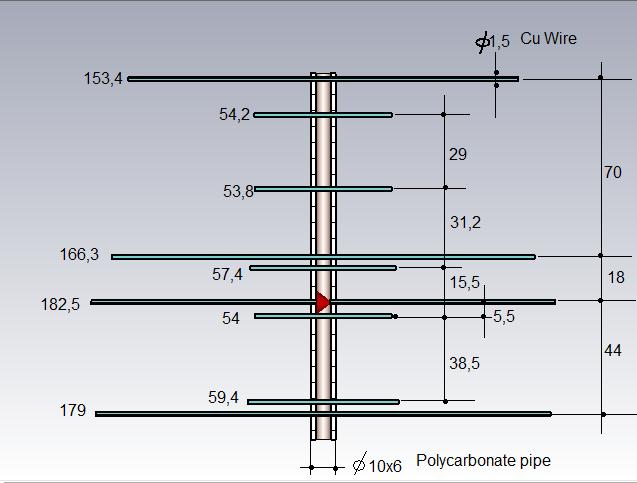

,,,or something like this...
