Circular Patch Antenna

[Admin 2545]

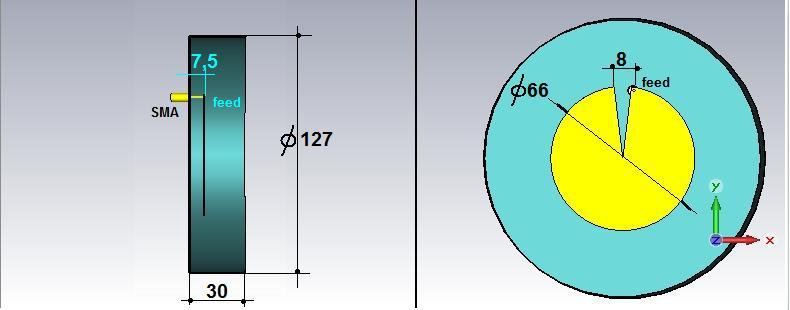

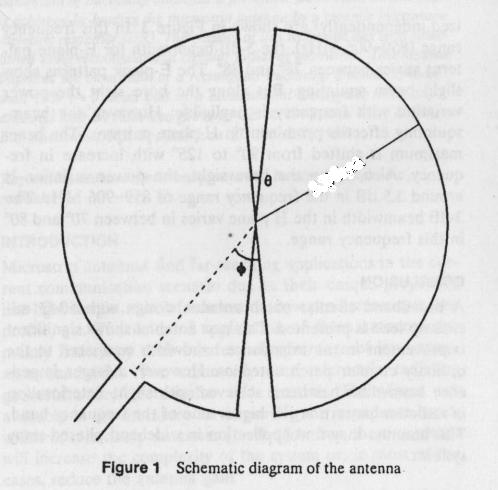

The schematic diagram of the antenna is shown in Figure 1. Two or one sectoral slots are made on the patch surface. The presence of the sectoral slots on the patch causes the antenna to resonate at two adjacent frequencies, which results in the enhancement of the impedance bandwidth



[acri 24]

This antenna in Indonesia is called pacman

this is the antenna I use most often but with different sizes

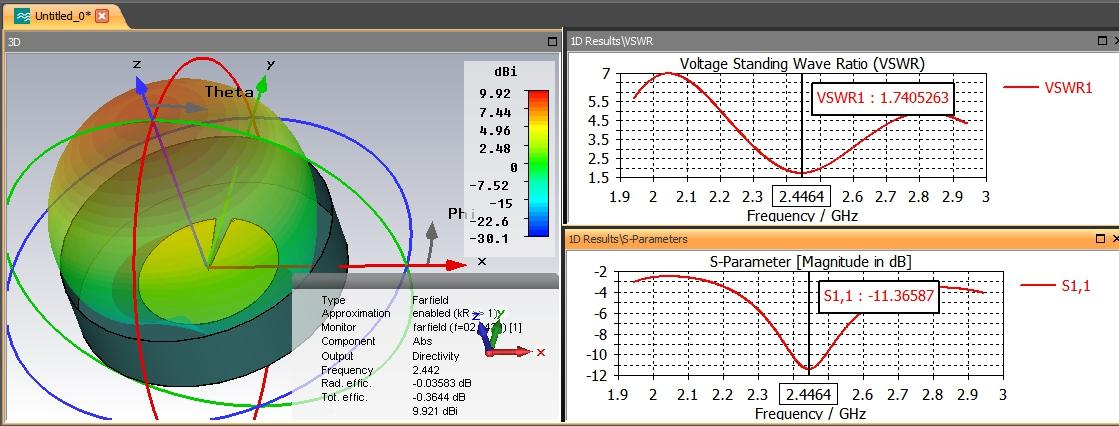

can i ask for help to simulate vswr and theta like your drawing to know the real gain value

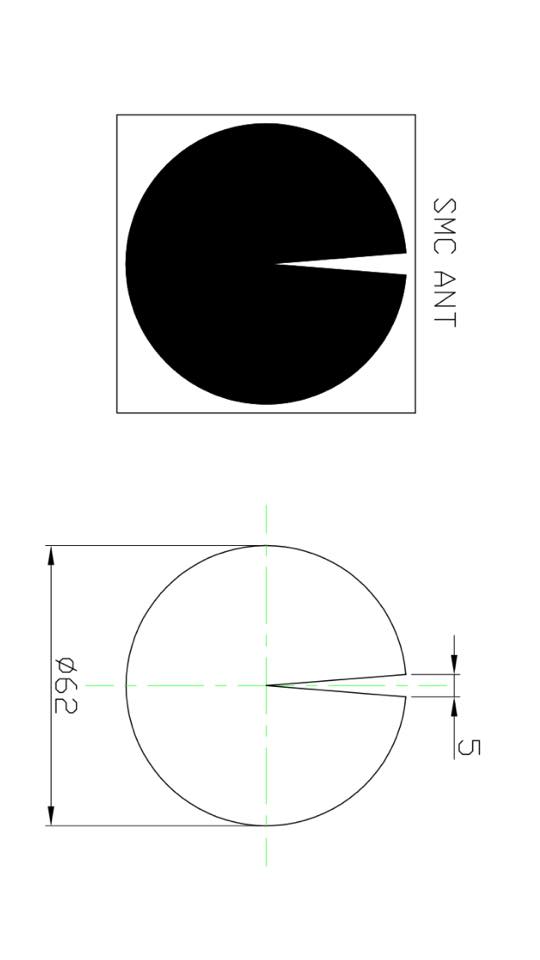

diameter : 62 mm
mouth pacman : 5 mm
spacer reflektor to patch : 8 mm

pxl reflektor 95mm

thanks

Edited October 31, 2017 by acri
input pxl reflektor

[Admin 2545]

,,, acri, it really matters material PCB-substrate ... !!!

What is the type of PCB material used by you?

[bejonet 58]

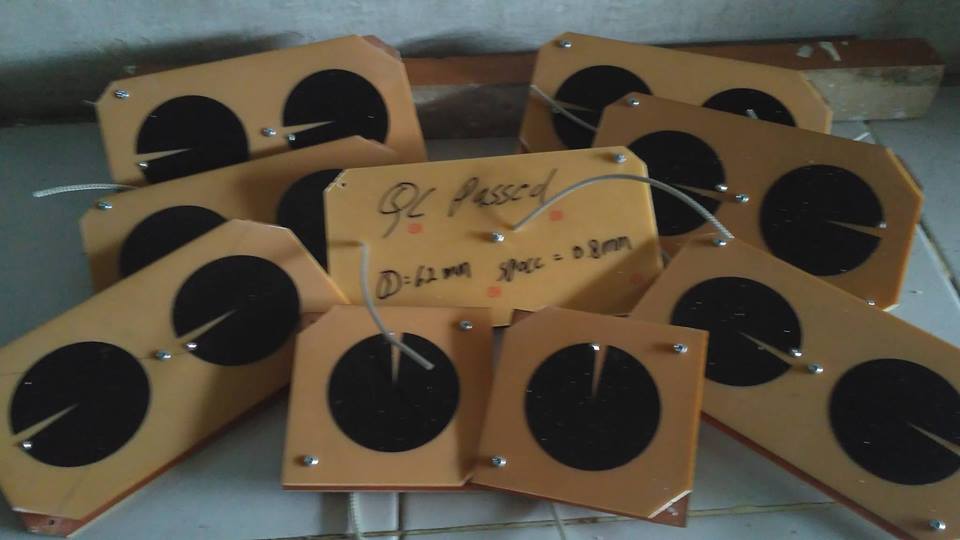

hmm... pacman antenna made from PCB, bestseller in my country  they called siso and mimo

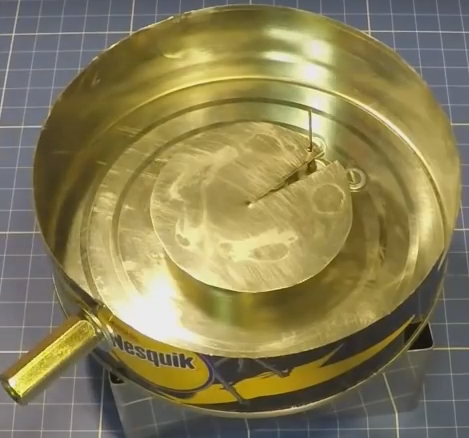

i was trying make it from tin can this is good one but i upgraded to the best antenna 2 patches for better performance, thanks to Mr. Admin

[pragata.my.id 25]

bejo lan suloyo ... hahaha .. saking pundi mbah? salam kenal njeh .. kulo saking lampung ...

Edited December 5, 2017 by pragata.my.id

[Admin 2545]

26 minutes ago, pragata.my.id said:

bejo lan suloyo ... hahaha .. saking pundi mbah? salam kenal njeh .. kulo saking lampung ...

,,,please translate it...!!!!

[pragata.my.id 25]

sorry, that's a greeting language in my country. Javanese language.


saking pundi mbah? = from where sir?
salam kenal njeh = Nice to meet you
kulo saking lampung = i am from Lampung
