PCB Panel Antenna

[Admin 2561]

These printed circuit board (PCB) antennas are perfect for high performance optimized antennas in a small package. These antennas are great for expanding your wireless network and improving your broadcasting or receiving stations.



[Admin 2561]

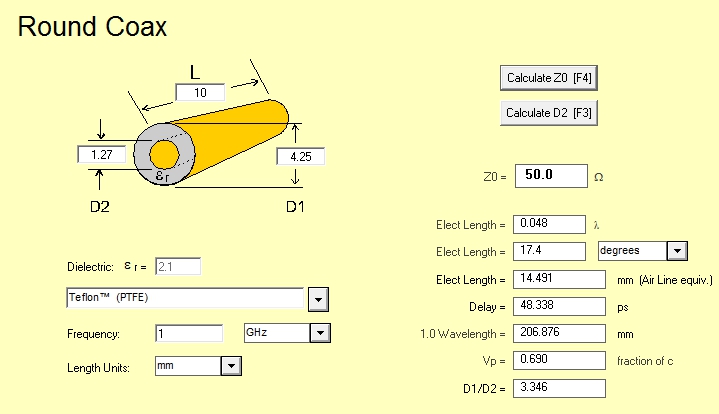

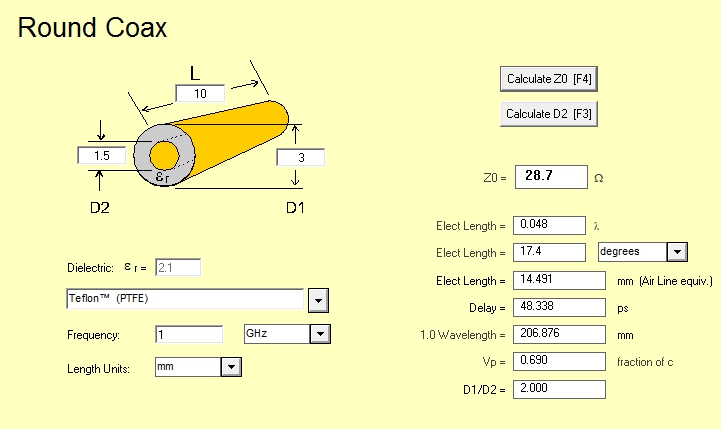

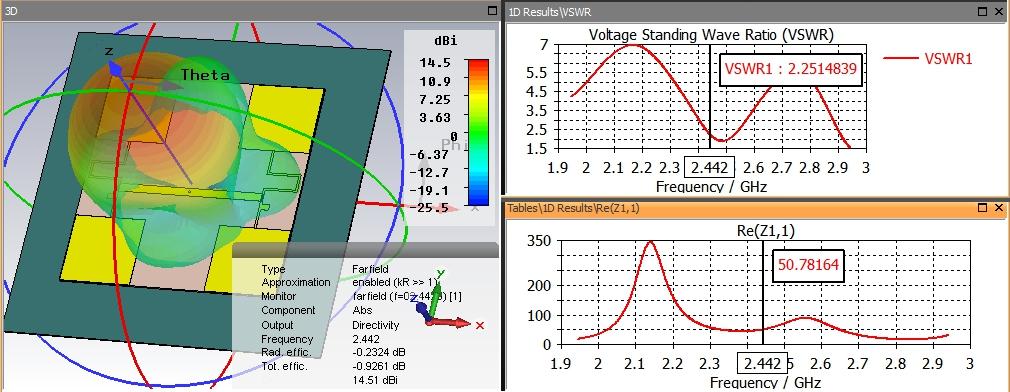

 my simulation it"s with galvanized sheet metal, not PCB...

[Admin 2561]

A file for practice execution...

wifi_board_0.pdf

[afm22000 0]

On 21/12/2016 at 11:30 AM, Admin said:

These printed circuit board (PCB) antennas are perfect for high performance optimized antennas in a small package. These antennas are great for expanding your wireless network and improving your broadcasting or receiving stations.



hi admin. do you have the reflector and spacing measurements? the pcb must be of some special type? Can you recommend any other antenna with similar performance using a pcb of less than 100x100mm?

many thanks!

[Admin 2561]

,,,hi buddy...!!!

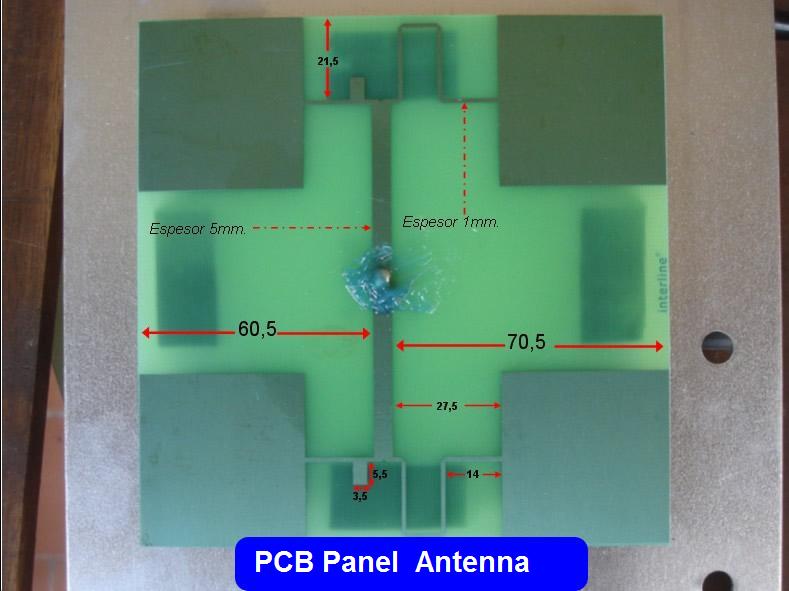

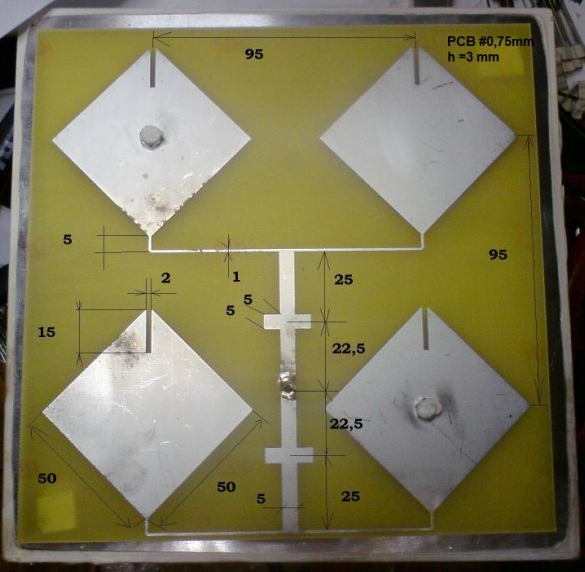

,,,spacing measurements = 4,5mm,material PCB=FR4 #1,5mm

,,,an antenna with 100x100mm reflector will have a much smaller directional gain and in any case it cannot have 4 patches as vibrators...!!!

,,,and I don't think it was necessary to post all my images above....!!!

[DeepBlueSea 0]

On 12/21/2016 at 9:38 PM, Admin said:

Where SMA Port brother ?

[Admin 2561]

,,, where the soldering is seen ... !!!!

[Eric 7]

is the screw metal or plastic?

and is it possible to make this in galvanized steel?

Edited June 10, 2020 by Eric

[Admin 2561]

,,,with 2 screw metal ...!!!

,,,it is also possible with galvanized sheet metal, but with other dimensions...!!!

,,,my simulation above is like that...!!!

[DeepBlueSea 0]

On 9/6/2020 at 8:47 PM, DeepBlueSea said:

Where SMA Port brother ?

How to make it . If use double sma port??

[Admin 2561]

,,, what will you say "double sma port"...???

,,,, there is only one port....!!!!

[clanon 248]

8 hours ago, Admin said:

,,, what will you say "double sma port"...???

,,,, there is only one port....!!!!

I think he wants it to be MIMO 2x2 (90 degrees ports...)

[Eric 7]

On 6/14/2020 at 1:49 PM, DeepBlueSea said:

How to make it . If use double sma port??

if you want mimo for that  just search here i'm sure you'll find one that'll suits your preference..

[Admin 2561]

 ,,,for cutting aluminium sheet with  CNC  machine , must to be other dimensions.!!!

[Admin 2561]

6 minutes ago, Techd said:

do u have that measurements ? for aluminium sheet kindly advise

,,,for which the antenna...???

[Techd 0]

any wifi 2.4ghz antenna which has higer range cover for 1km and also has the speed

because some wifi antenna have range but don't have speed even if the connected network has good wifi speed.

i believe you will suggest me the best antenna with its cnc cutting detailed drawing for aluminium sheet so that i can extended my wifi signal and simultaneously receive same speed at the extended area.



kindly help since last 2 days i am requesting you plz help

[Admin 2561]

,,, you can try to do that...!!!!

,,, why not search on this forum, you can find what interests you...!!

[tayfunkizilaslan@gmail.com 0]

hello i want to make this model. How many dbi, reflector size, reflector sheet thickness, pcb thickness and what is the distance between reflector and pcb?

[Admin 2561]

,,,hi buddy...!!

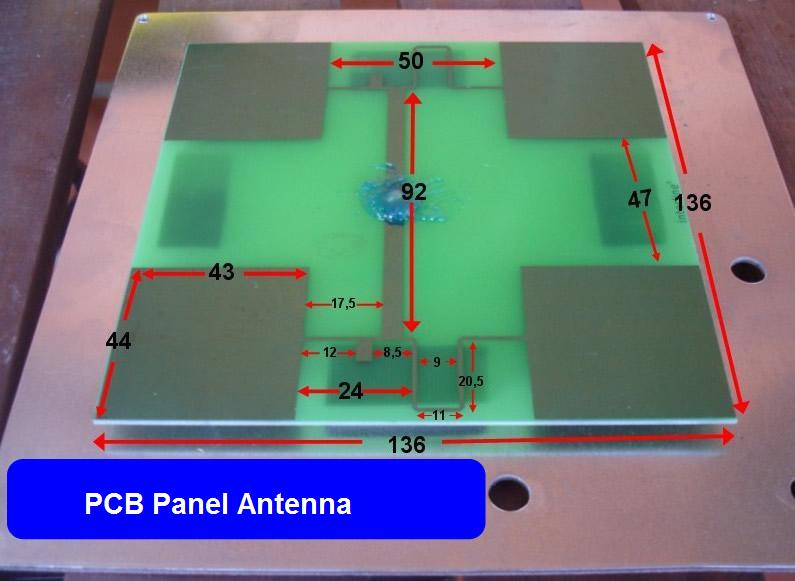

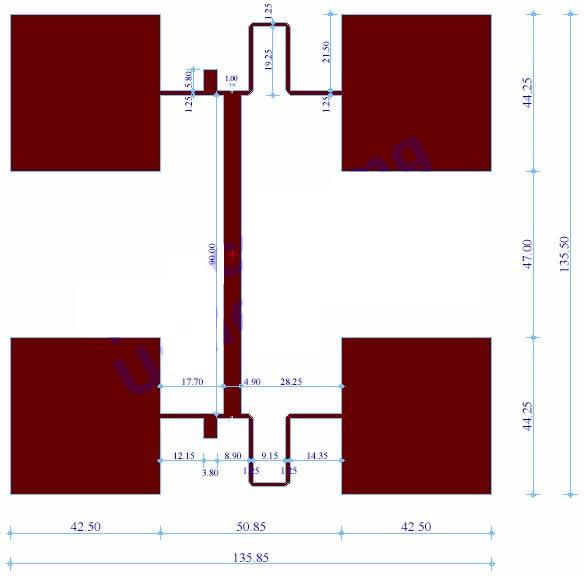

,,,14,5 dBi,reflector sizes=1x240x240 mm,PCB=FR4#1,5 mm, h-4,5 mm

,,, but please, post a single image, not all are needed...!!!

[tayfunkizilaslan@gmail.com 0]

2 hours ago, Admin said:

,,, selam dostum ... !!

,,, 14,5 dBi, reflektör boyutları = 1x240x240 mm, PCB = FR4 # 1,5 mm, h-4,5 mm

,,, ama lütfen, tek bir resim gönderin, hepsine gerek yok ... !!!

Thank You.

[tayfunkizilaslan@gmail.com 0]

2 hours ago, Admin said:

,,, selam dostum ... !!

,,, 14,5 dBi, reflektör boyutları = 1x240x240 mm, PCB = FR4 # 1,5 mm, h-4,5 mm

,,, ama lütfen, tek bir resim gönderin, hepsine gerek yok ... !!!

Is the reflector galvanized sheet steel or aluminum

[Admin 2561]

,,, which you want .. !!!

[aurel 22]

If the relector is connected to GND of cable then is better if is of aluminum

[erossutrisno 11]



On 12/21/2016 at 9:38 PM, Admin said:

my simulation it"s with galvanized sheet metal, not PCB...

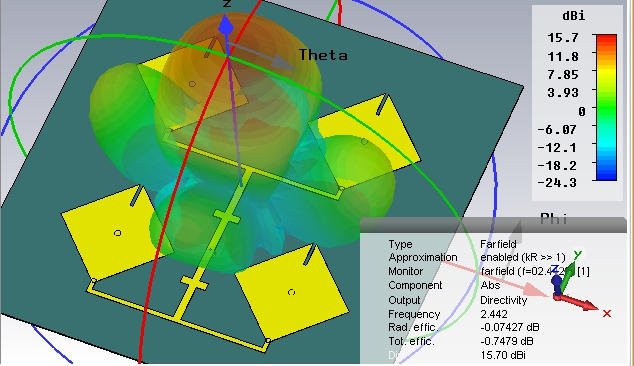

I did a simulation using FR4 as vibrator and 0.5 mm alluminium as reflector and the efficiency is just bad. maybe some modification on vibrator dimensions is needed.

14 dbi panel antenna 2.4 v1.5 R1.cst

[Admin 2561]

,,, pay attention to the port...
