aurel

BatWing antenna 2.4 ghz

Started by aurel,

351 posts in this topic

Posted

,,,this it"s...!!!


1 person likes this

Share this post

Link to post
Share on other sites

Posted

,,,another achievement of com666 user...



Share this post

Link to post
Share on other sites

Posted

Very good,very good

I replace all biquads i have (3)  with batwing because it gives better resulats.

Share this post

Link to post
Share on other sites

Posted

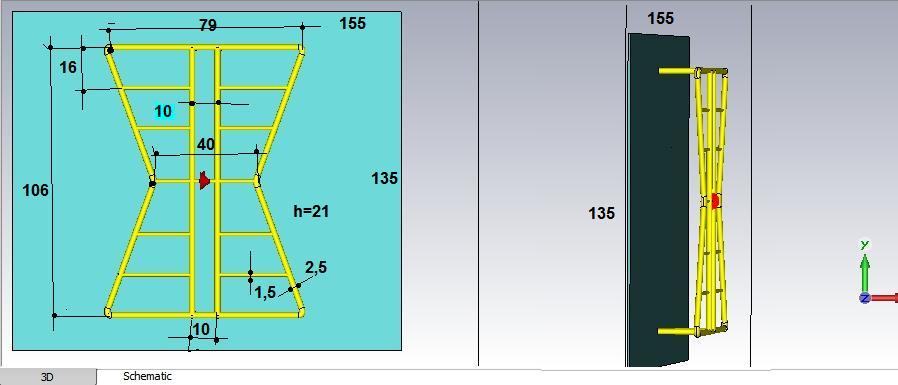

BatWing Release v2...





1 person likes this

Share this post

Link to post
Share on other sites

Posted

I am in processof building your version with wires

so i will see how this one work..

i hope better than mine !

1 person likes this

Share this post

Link to post
Share on other sites

Posted

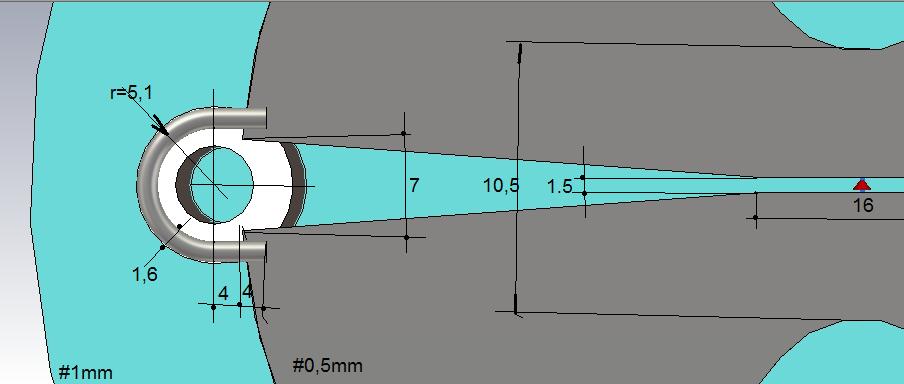

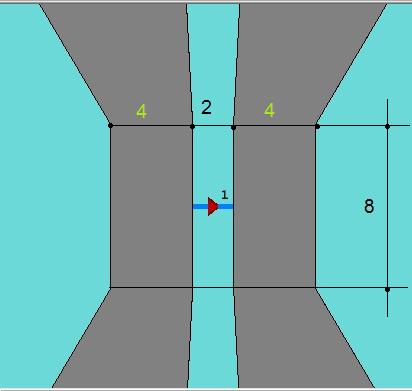

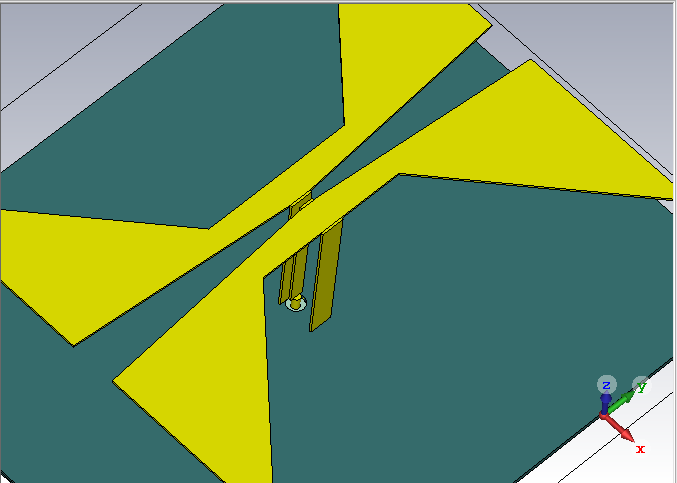

,,, and an improvement for the batwing transmission line...







2 people like this

Share this post

Link to post
Share on other sites

Posted

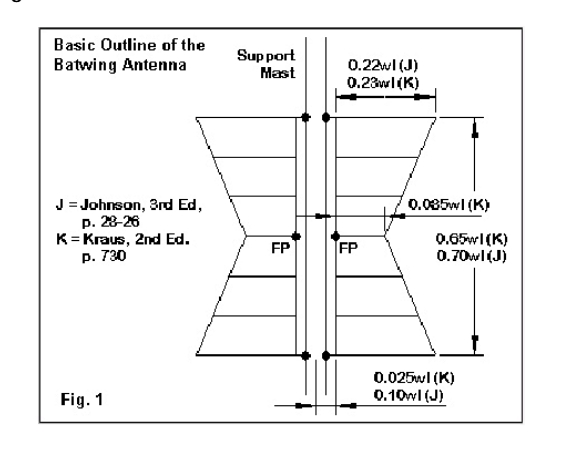

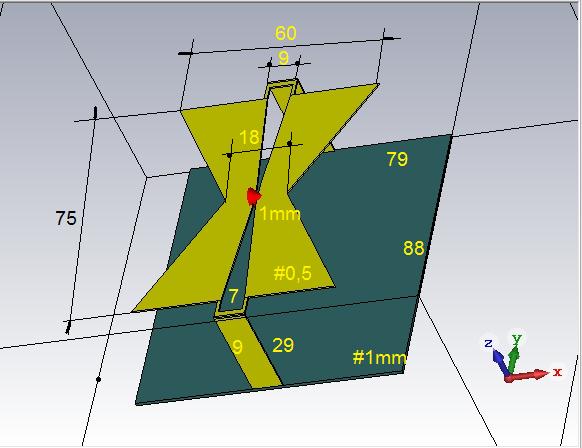

Dimensions of the batwing antenna by different authors....


Share this post

Link to post
Share on other sites

Posted

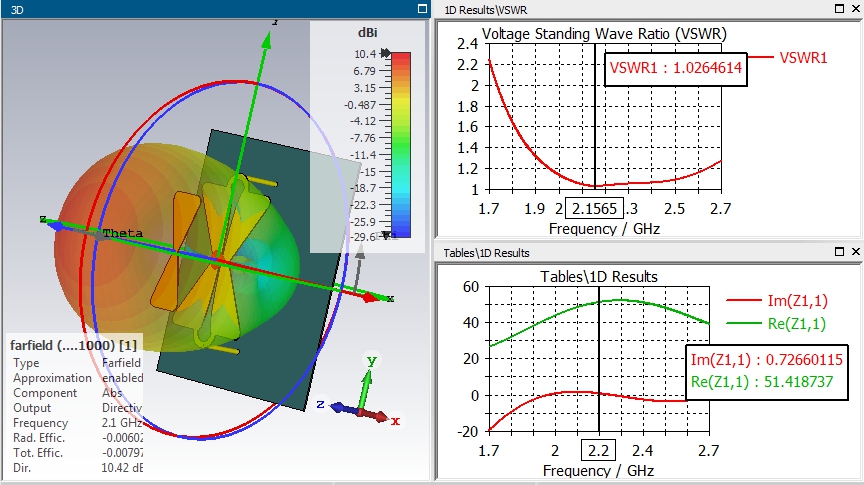

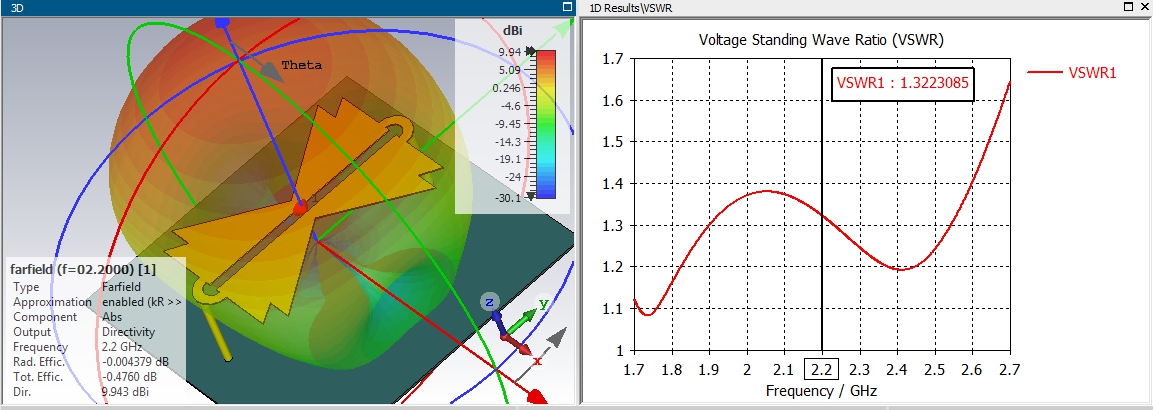

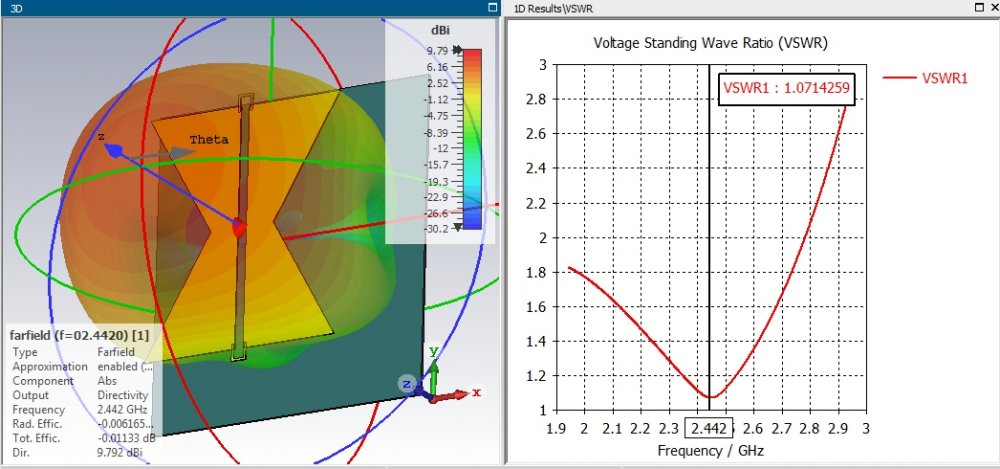

,,, and after successive simulations, I reached this optimal size ...(by JOHNSON)





1 person likes this

Share this post

Link to post
Share on other sites

Posted

so yes...







,,,so no...





1 person likes this

Share this post

Link to post
Share on other sites

Posted

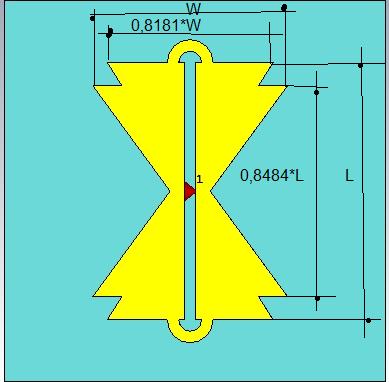

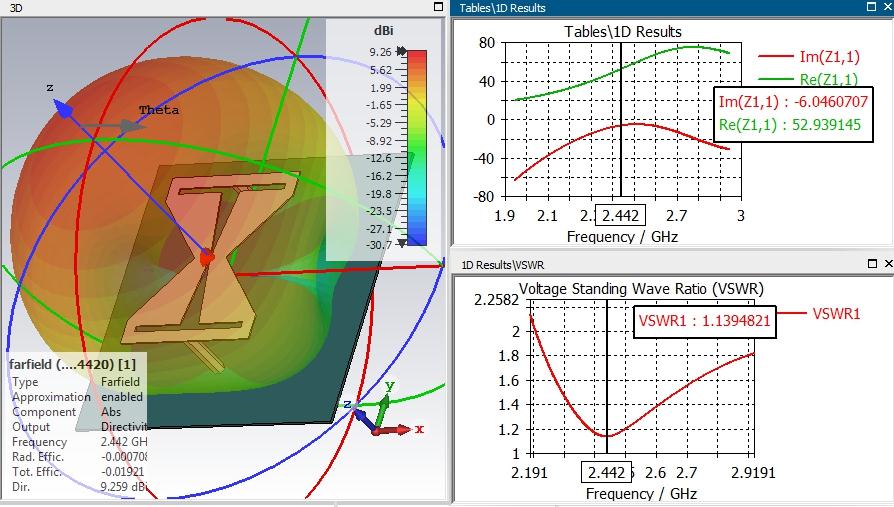

,,,batwing with cut corners...




1 person likes this

Share this post

Link to post
Share on other sites

Posted

Spoiler



On 2/13/2020 at 4:25 PM, Admin said:

,,,batwing with cut corners...

Its kinda professional

On 2/15/2020 at 9:41 AM, Admin said:

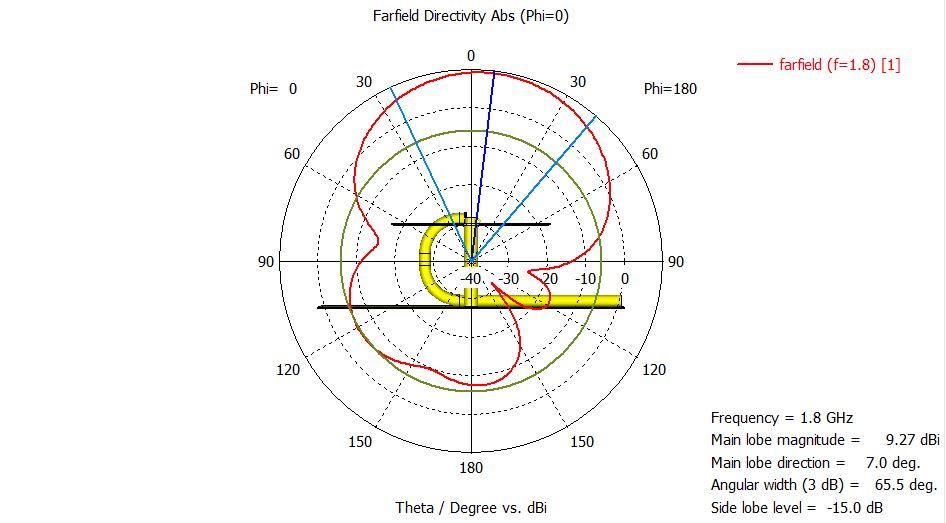

I posted for you a Bester antenna on 1800mhz






Share this post

Link to post
Share on other sites

Posted

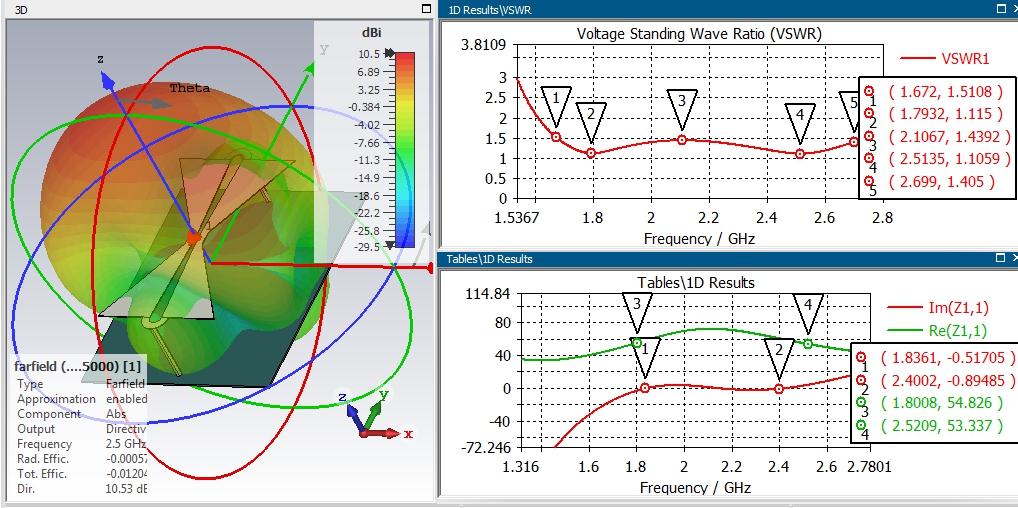

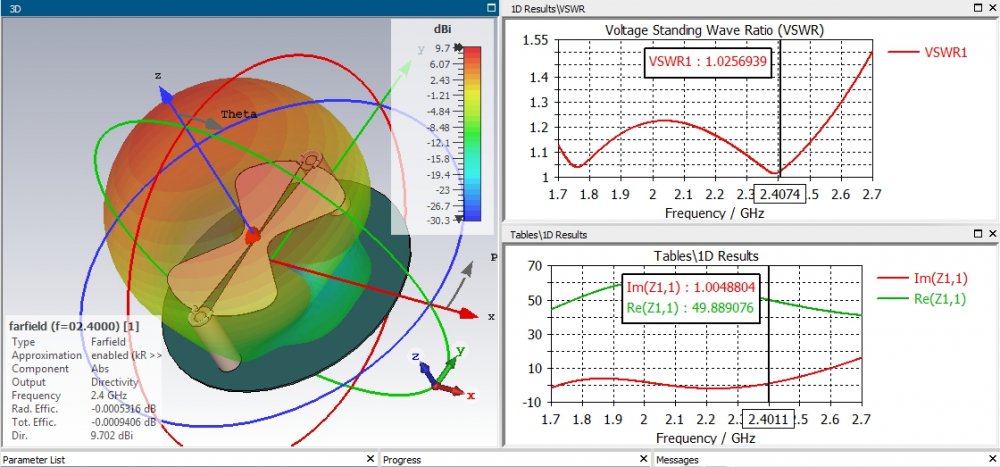

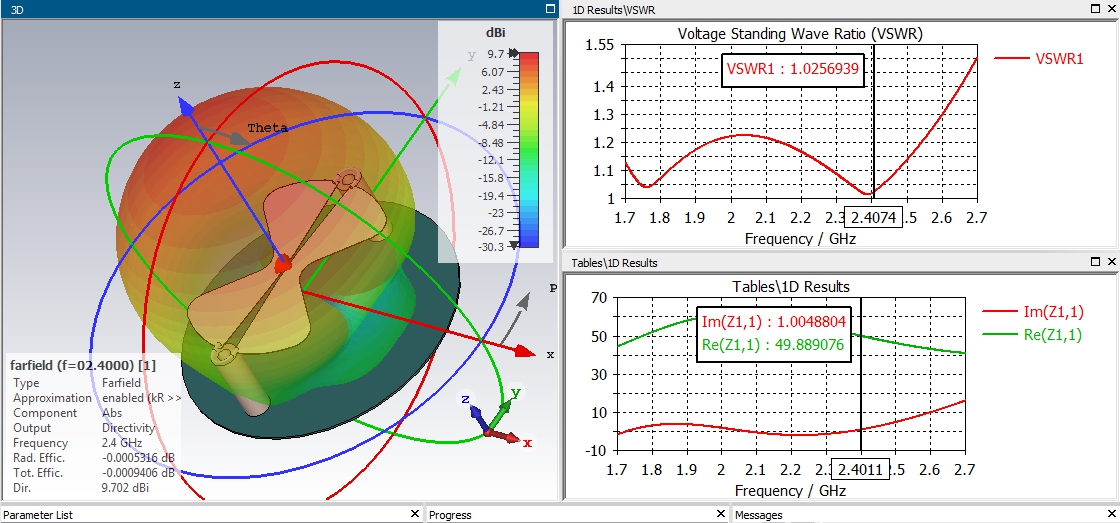

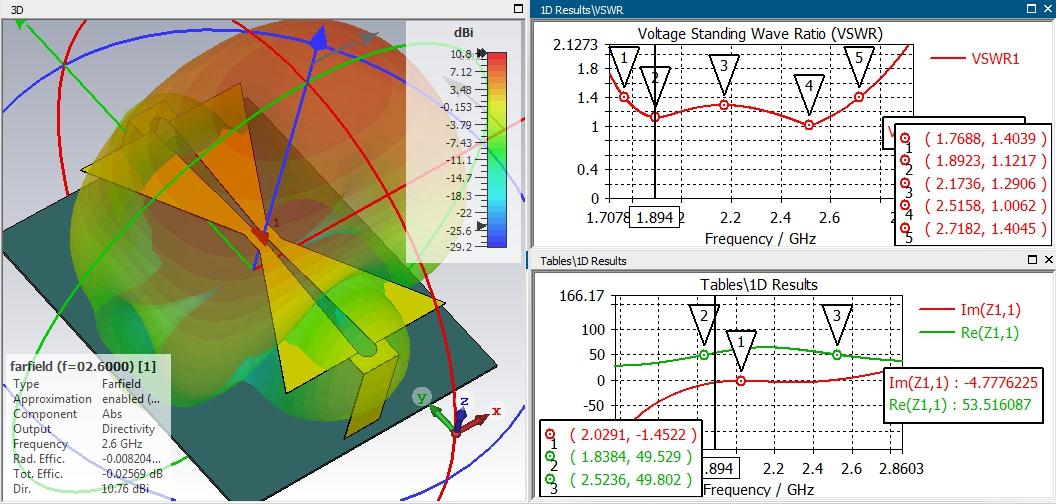

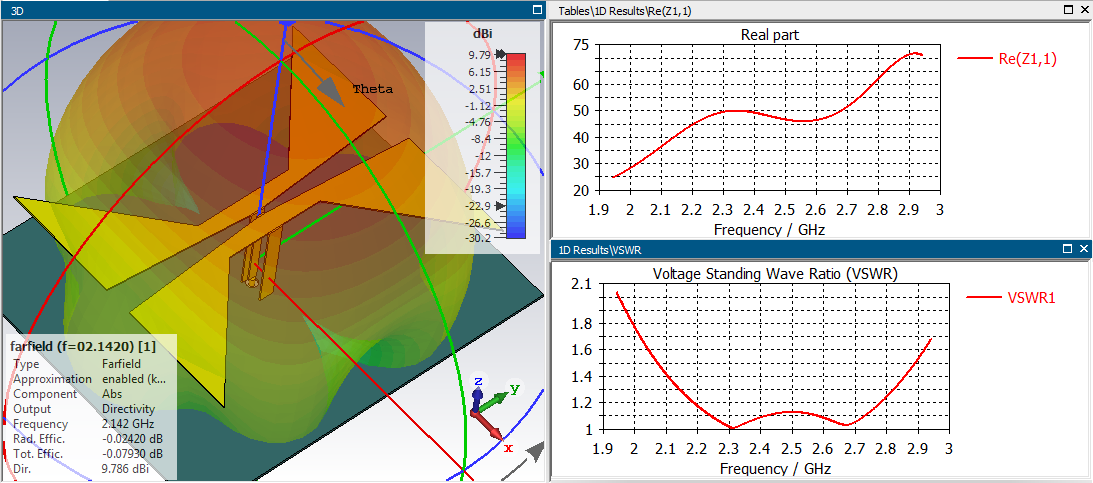

,,, and finally, the latest UWB batwing  antenna model is optimized...!!!











6 people like this

Share this post

Link to post
Share on other sites

Posted

„, for simplification in construction it can also be so...


,,,or so...





1 person likes this

Share this post

Link to post
Share on other sites

Posted

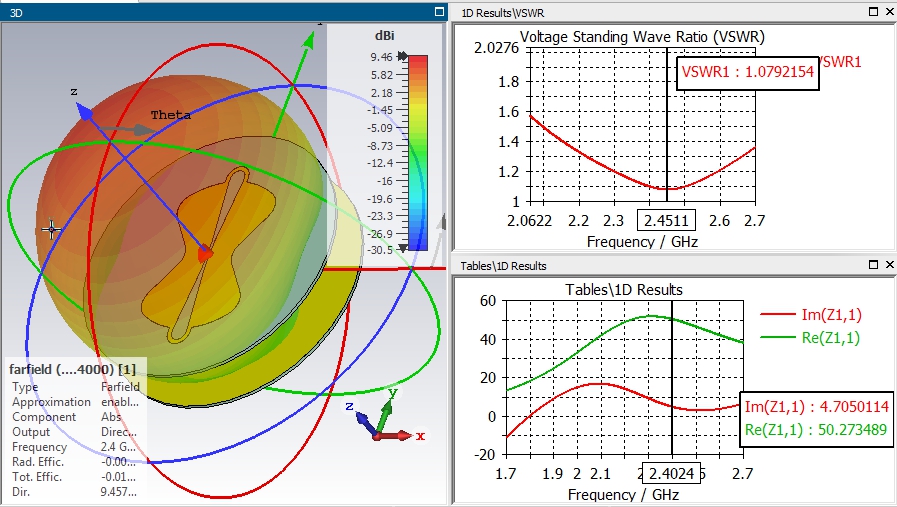

,,, if the adaptation line is elliptical, a wider frequency band is provided...


,,, constructive details....


CST file,,,

batwing elli.cst

1 person likes this

Share this post

Link to post
Share on other sites

Posted

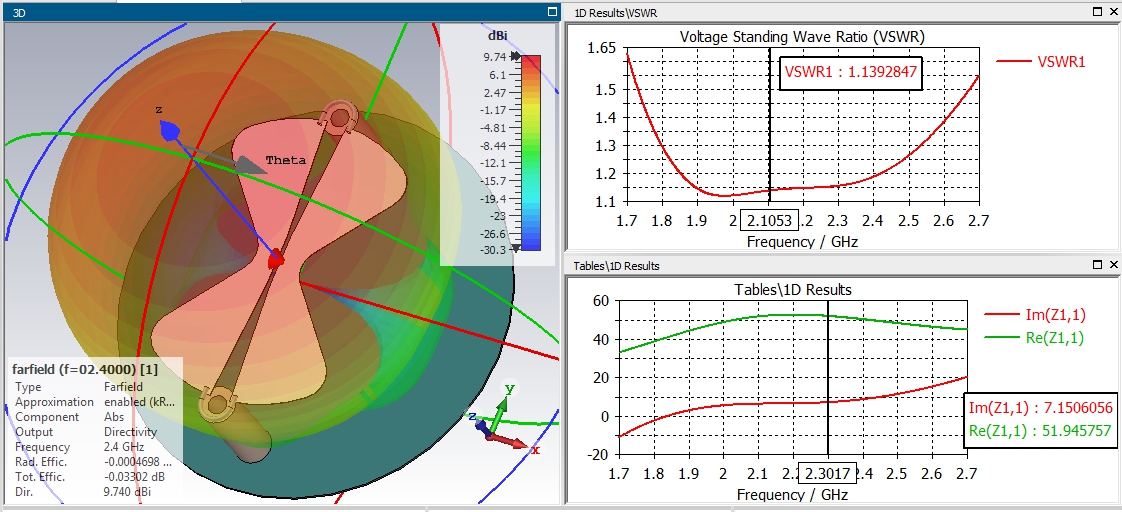

And seeing this, I decided that a rounding of the corners is preferable(radius = 4 mm)...





Share this post

Link to post
Share on other sites

Posted

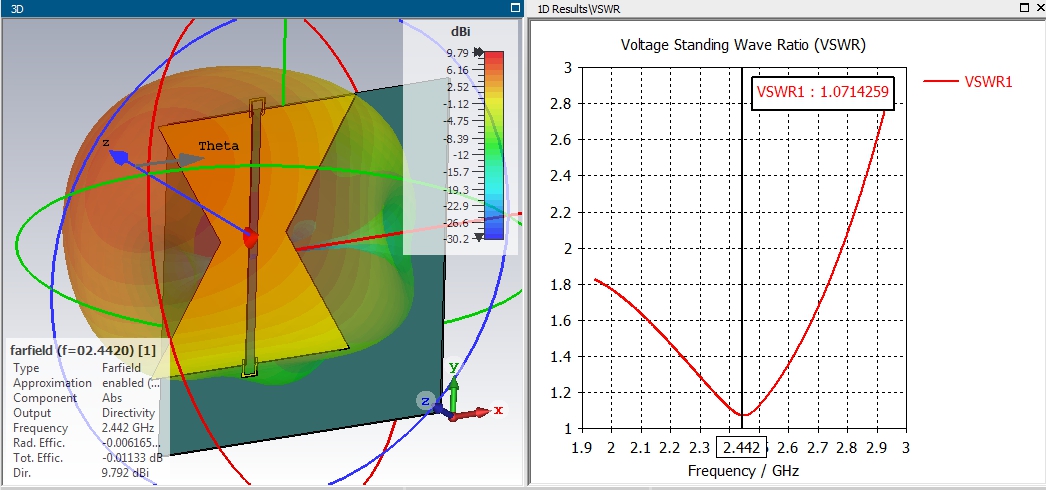

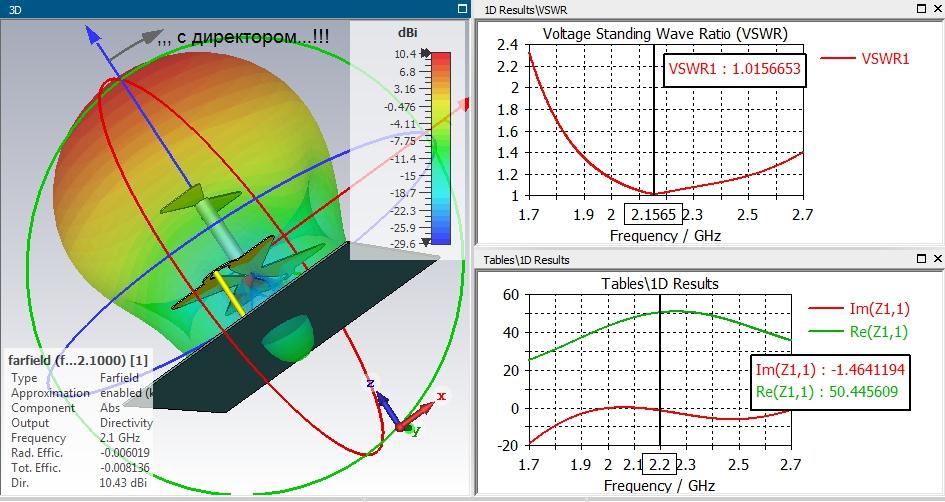

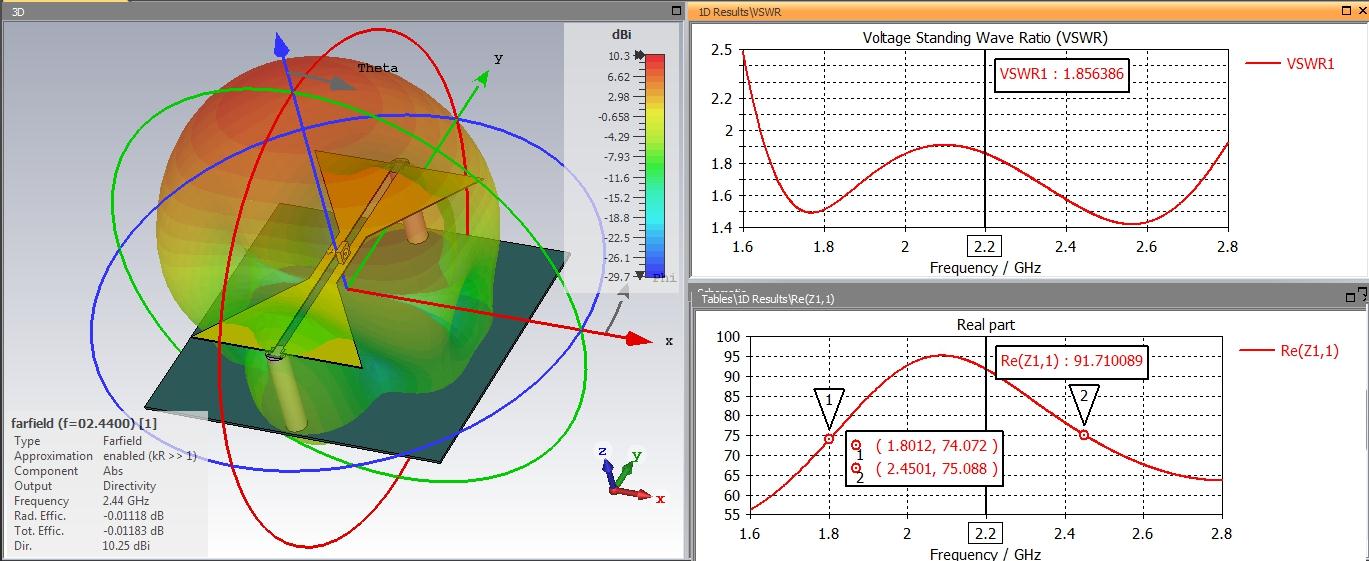

,,, and by adding a batwing director the front-to-back ratio is emphasized...





2 people like this

Share this post

Link to post
Share on other sites

Posted

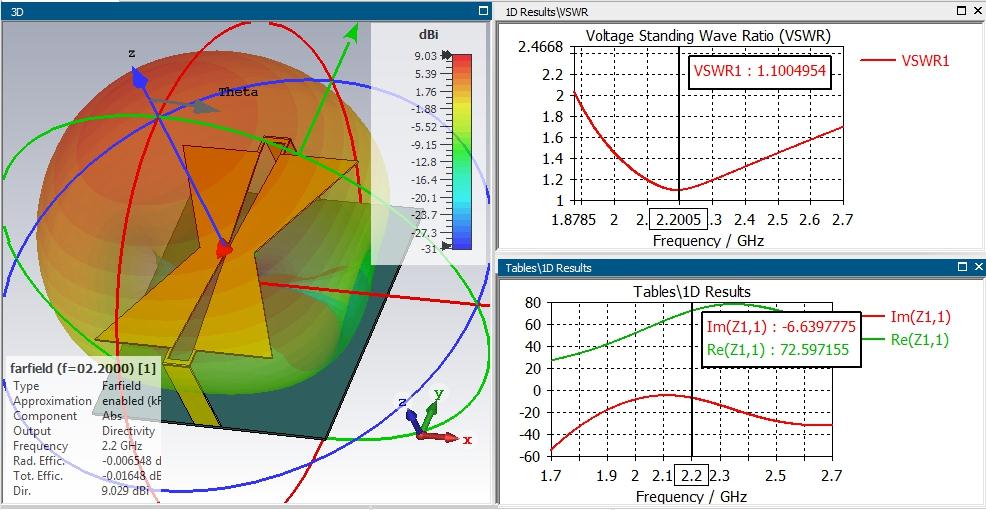

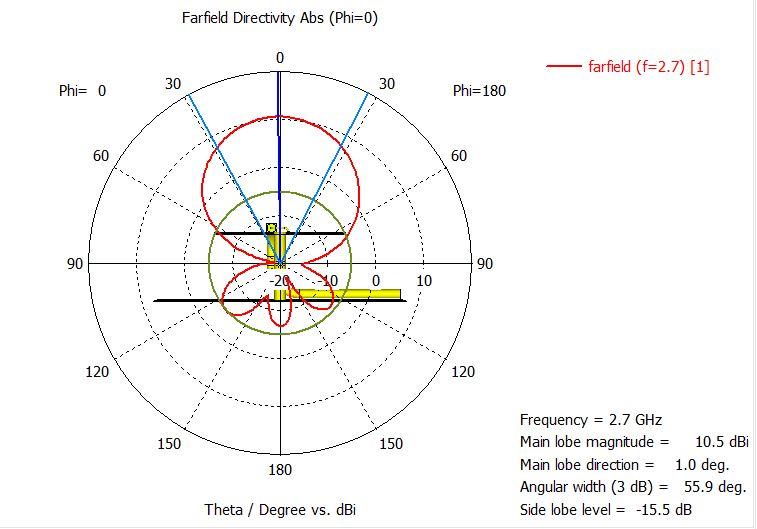

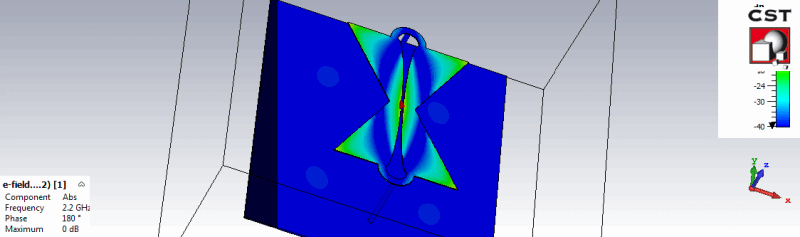

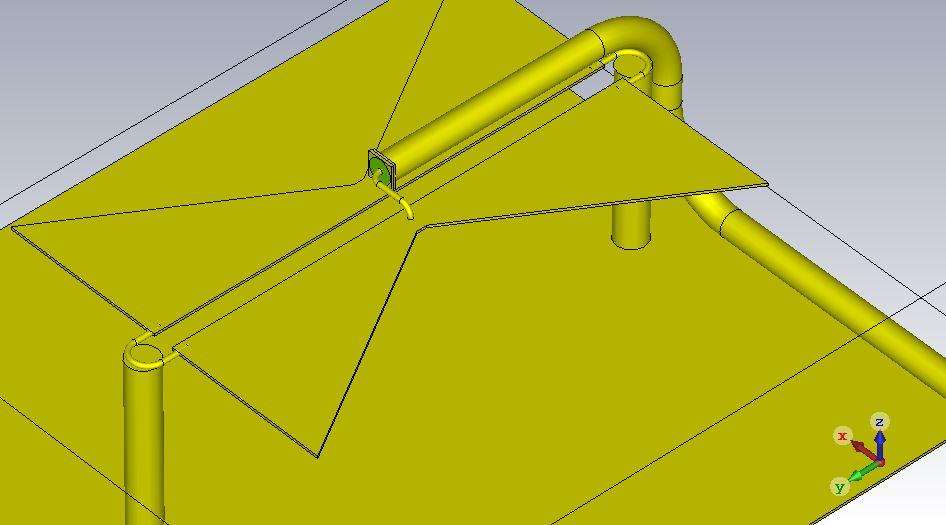

A batwing antenna and a reflector with wings....



,,,and here is the simulation....

batwing simply.cst

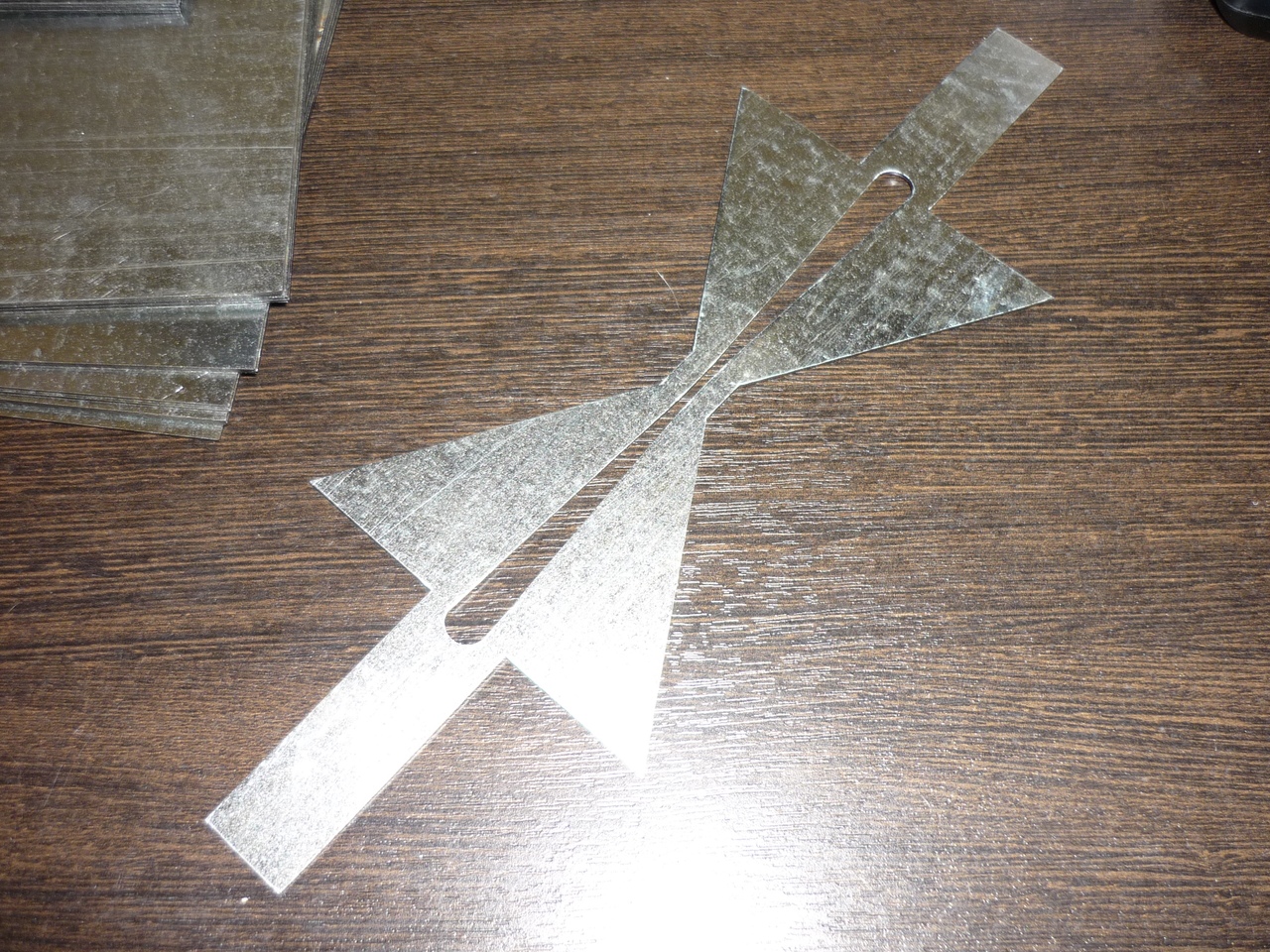

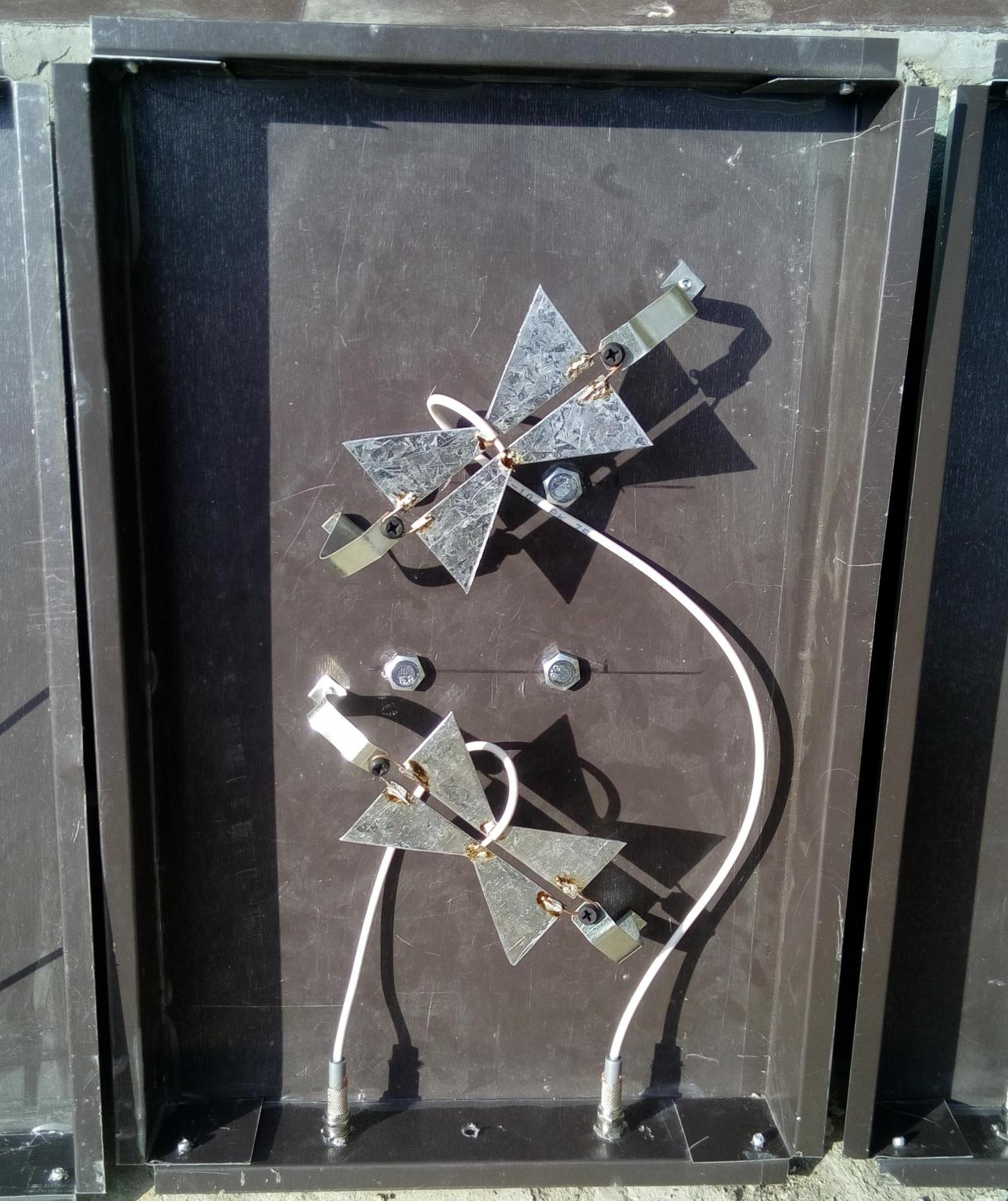

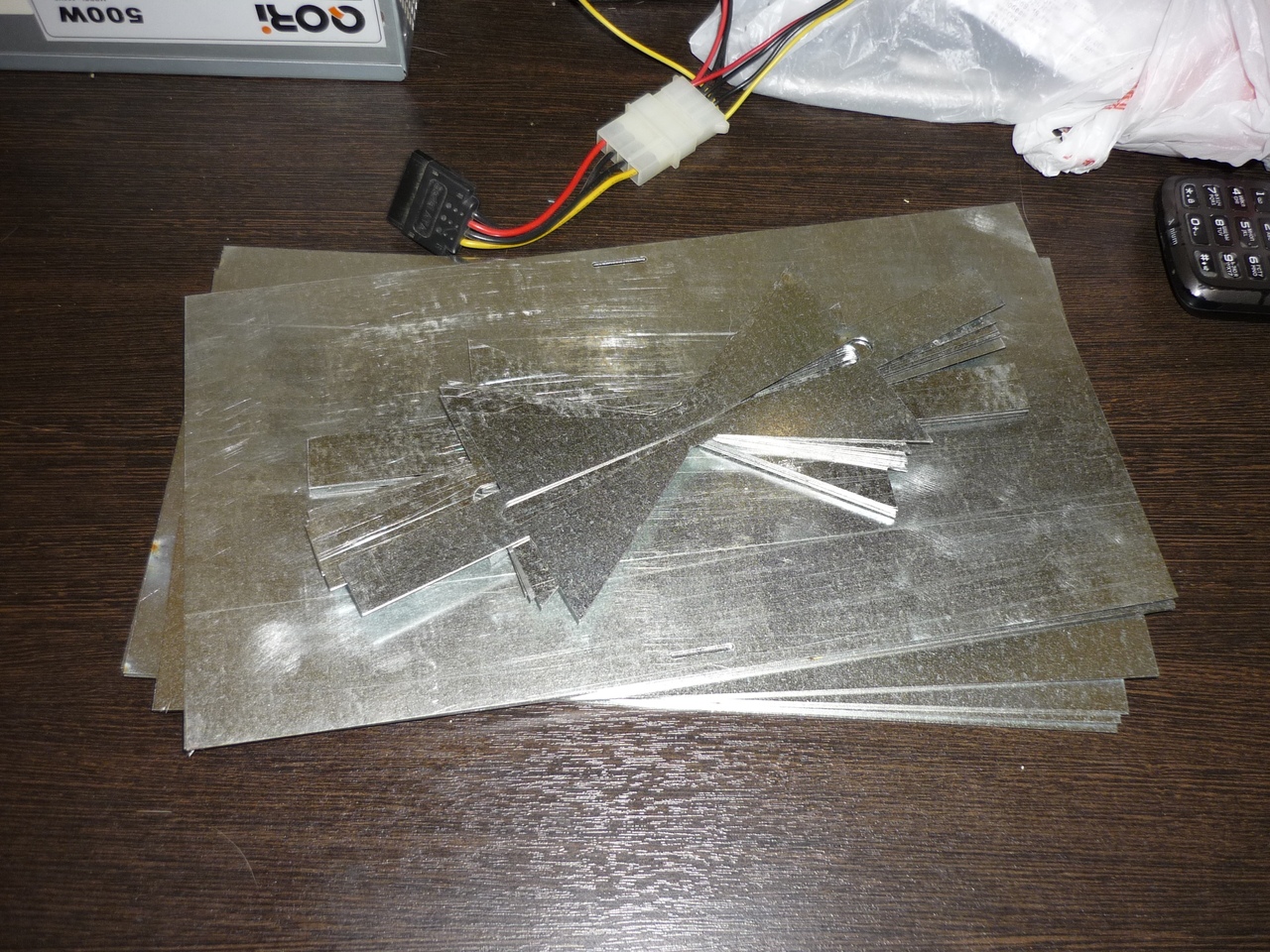

Practical realization with laser cutting from "com666" user...




4 people like this

Share this post

Link to post
Share on other sites

Posted

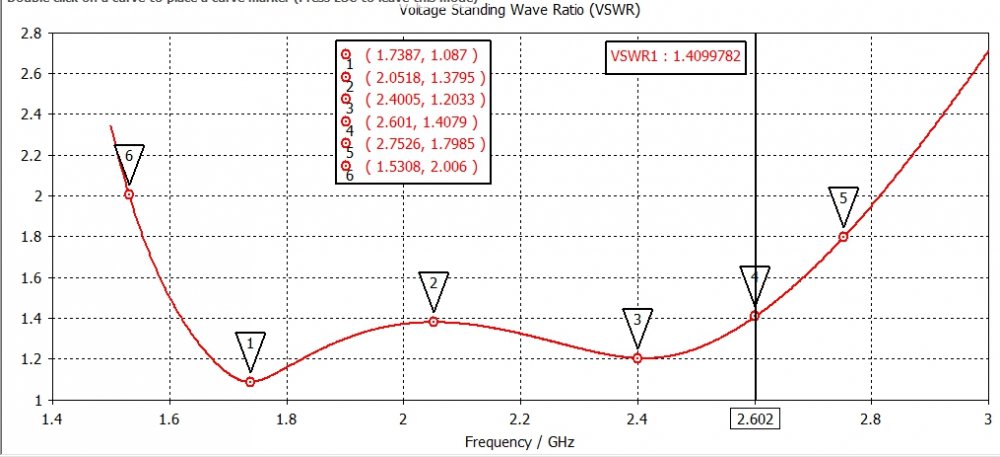

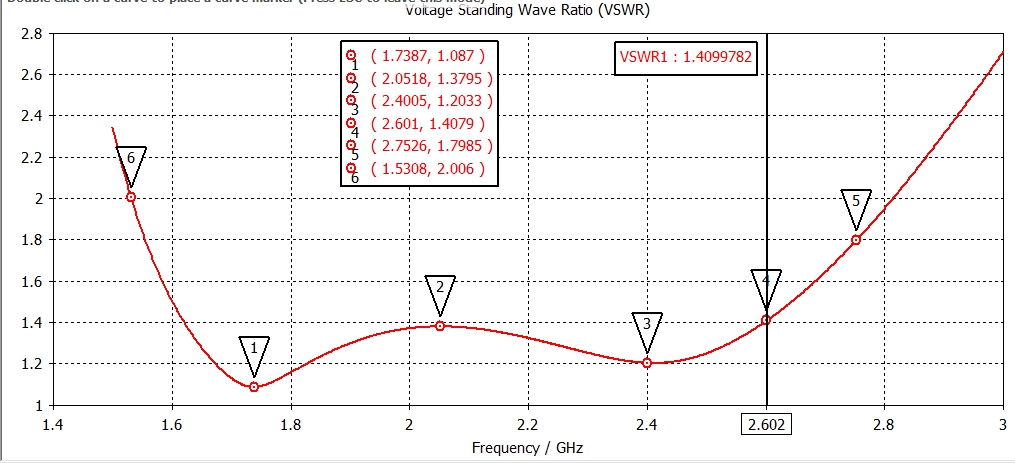

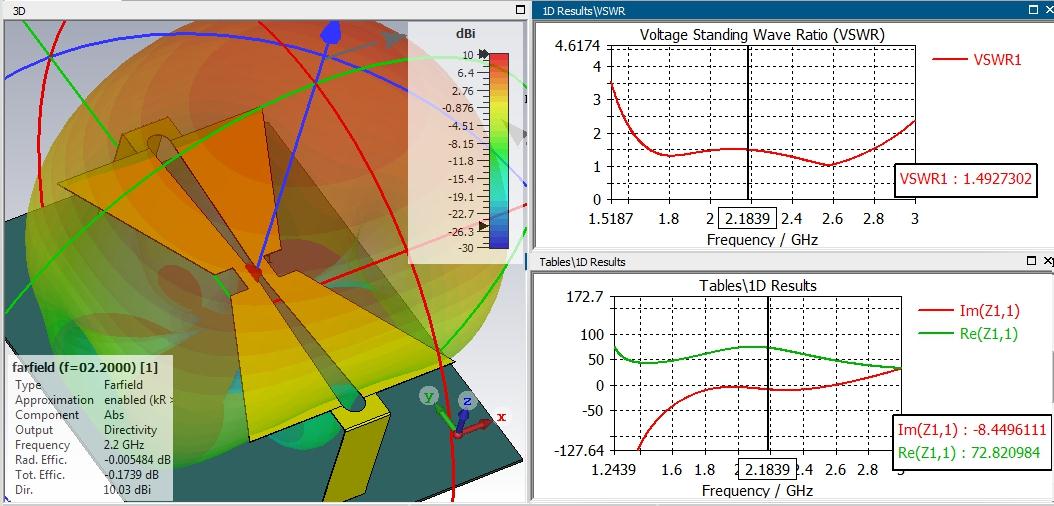

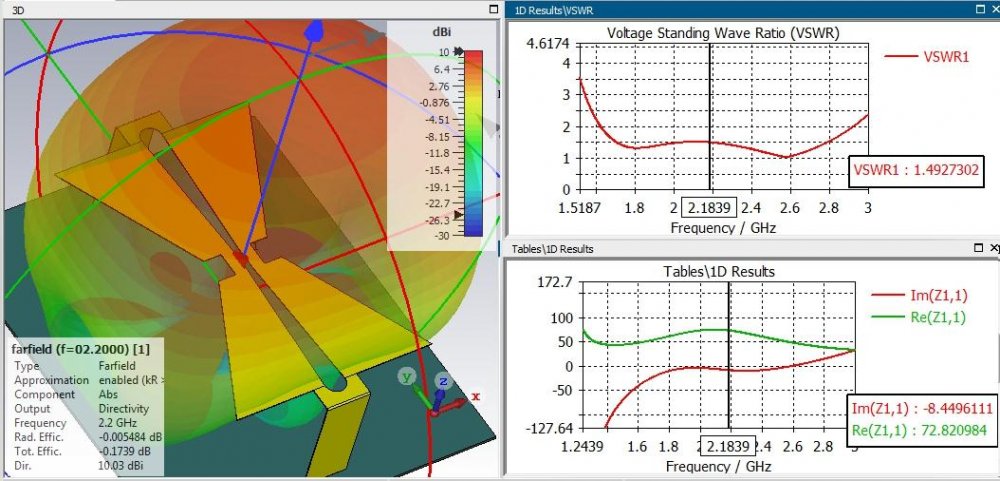

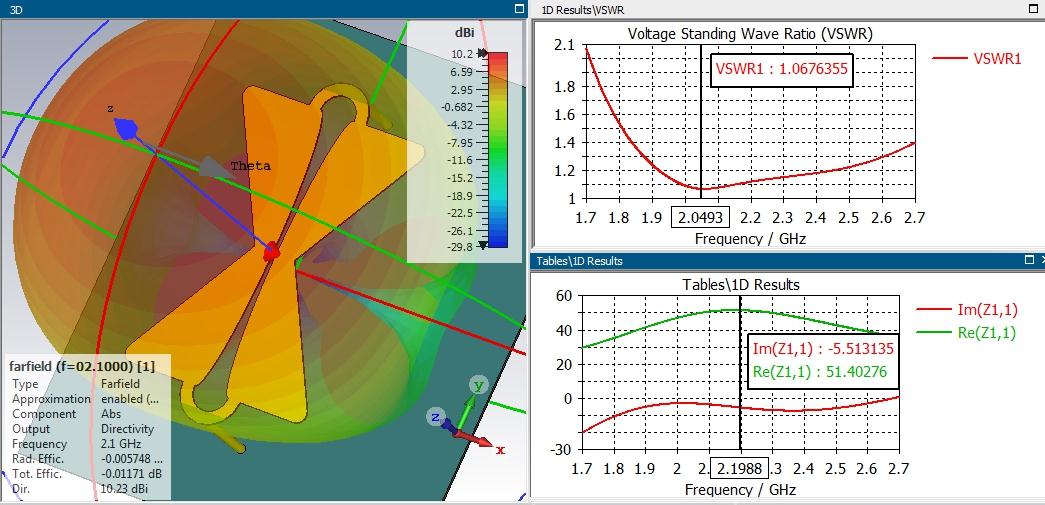

,,,named Covid-19,,, after a moment of inspiration, I managed to configure a new Batwing type antenna that provides a wide frequency band and a VSWR factor <1.5...


The antenna is made of round cut galvanized sheet, cut triangularly and rounded corners..



3 people like this

Share this post

Link to post
Share on other sites

Posted

Covid-19

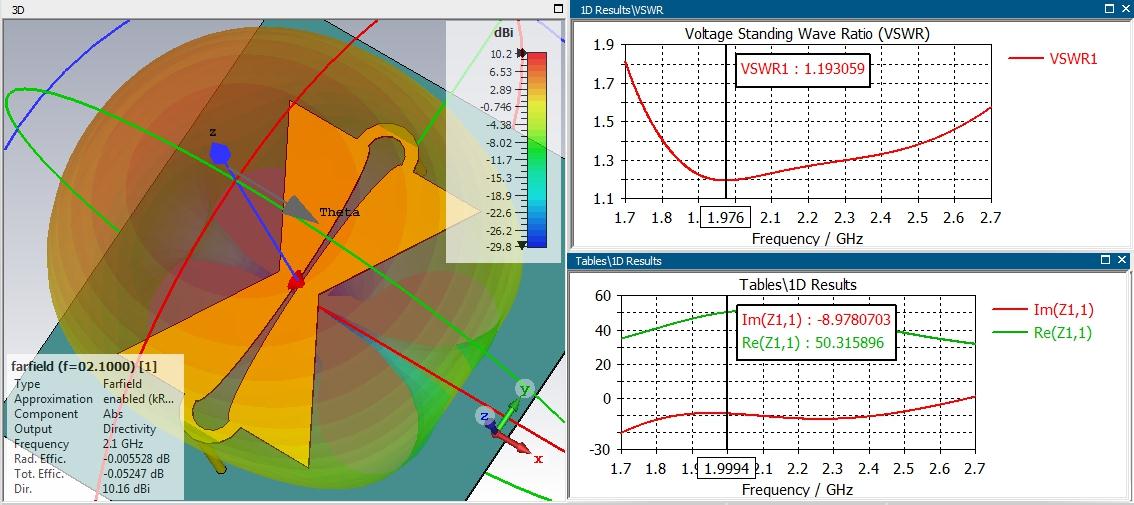

,,, if the angle  of 90 degrees is increased , a  good uniformity of the frequency bandwidth and impedance of Batwing-Antenna can be obtained...

angle=100 degrees


,,,Covid 19-1

angle=111,5 degrees


1 person likes this

Share this post

Link to post
Share on other sites

Posted

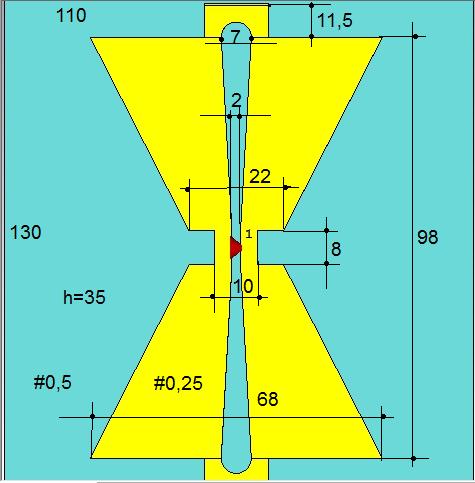

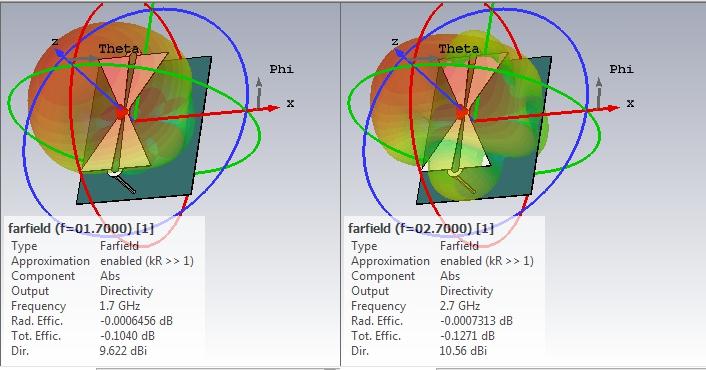

,,, after successive attempts at optimization, I managed to establish the right dimensions for this Batwing antenna(Covid-19), designed by me...


3 people like this

Share this post

Link to post
Share on other sites

Posted

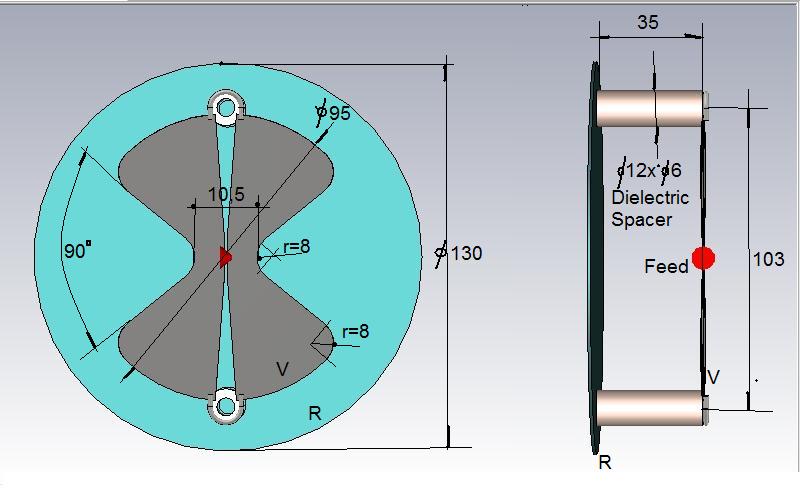

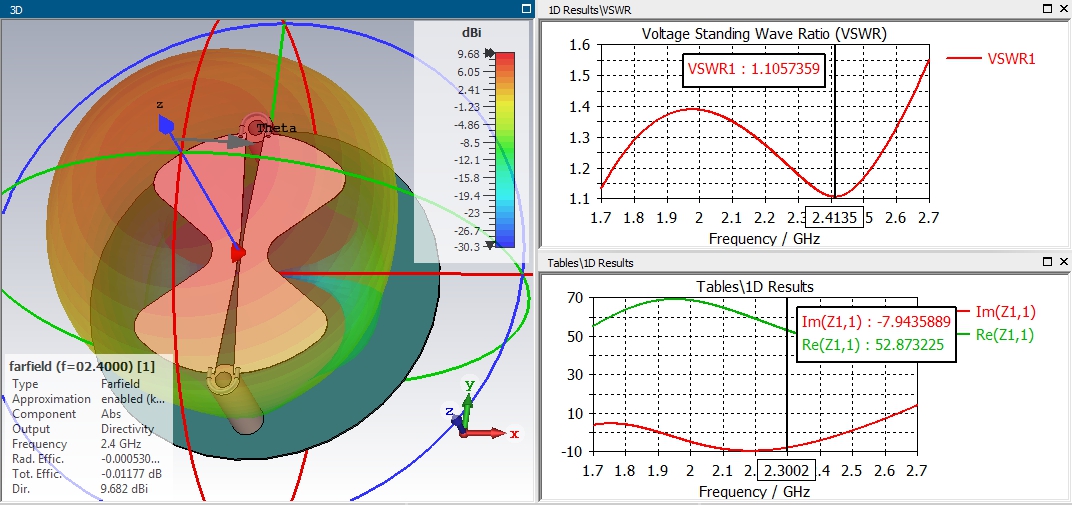

,, another form of batwing antenna...




batwing new.cst

it can be shaped from liver pate caps(95mm-diameter)

1 person likes this

Share this post

Link to post
Share on other sites
