BatWing antenna 2.4 ghz

351 posts in this topic
1 hour ago, Admin said:

,,, adds a conical reflector...

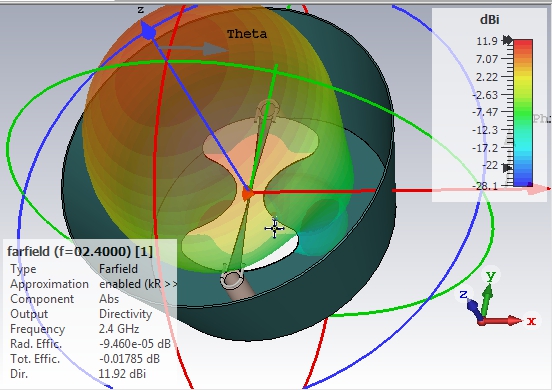

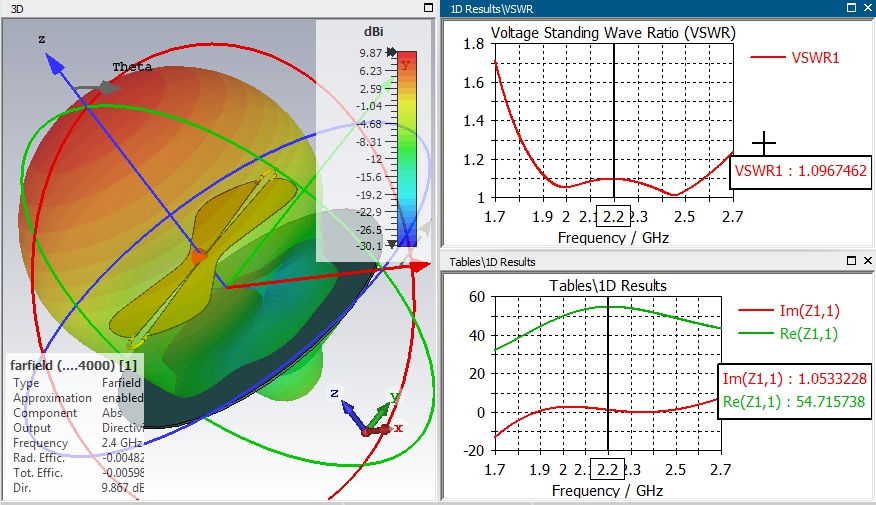

so can you simulate this backplate with wings with this batwing:


i need SWR graph frrom 1700mhz to 2700mhz

Share this post


Link to post
Share on other sites

I've done this before.,,,!!!!!!!!!!!!

Share this post


Link to post
Share on other sites
20 hours ago, Admin said:

I've done this before.,,,!!!!!!!!!!!!

no, you did not model your Wings Reflector with Exactly this simple batwing:


please combine it,model it

Share this post


Link to post
Share on other sites
2 hours ago, Sl4va said:

I made another such option


do you have SWR-meter to test them?

Share this post


Link to post
Share on other sites
1 hour ago, devton said:

do you have SWR-meter to test them?

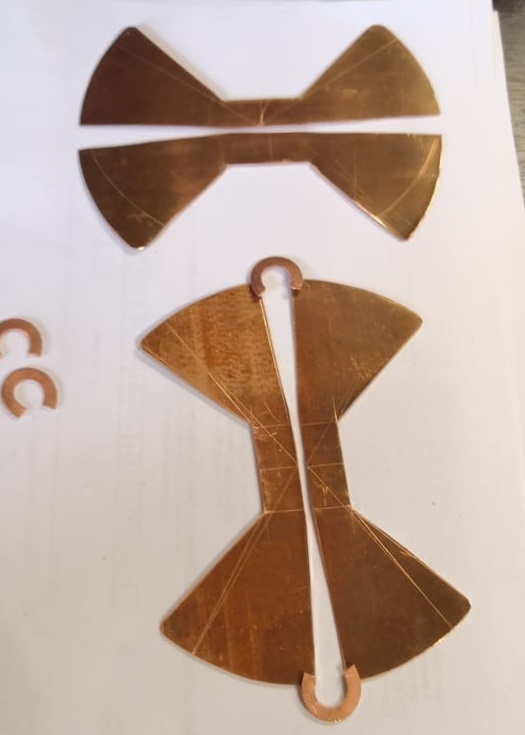

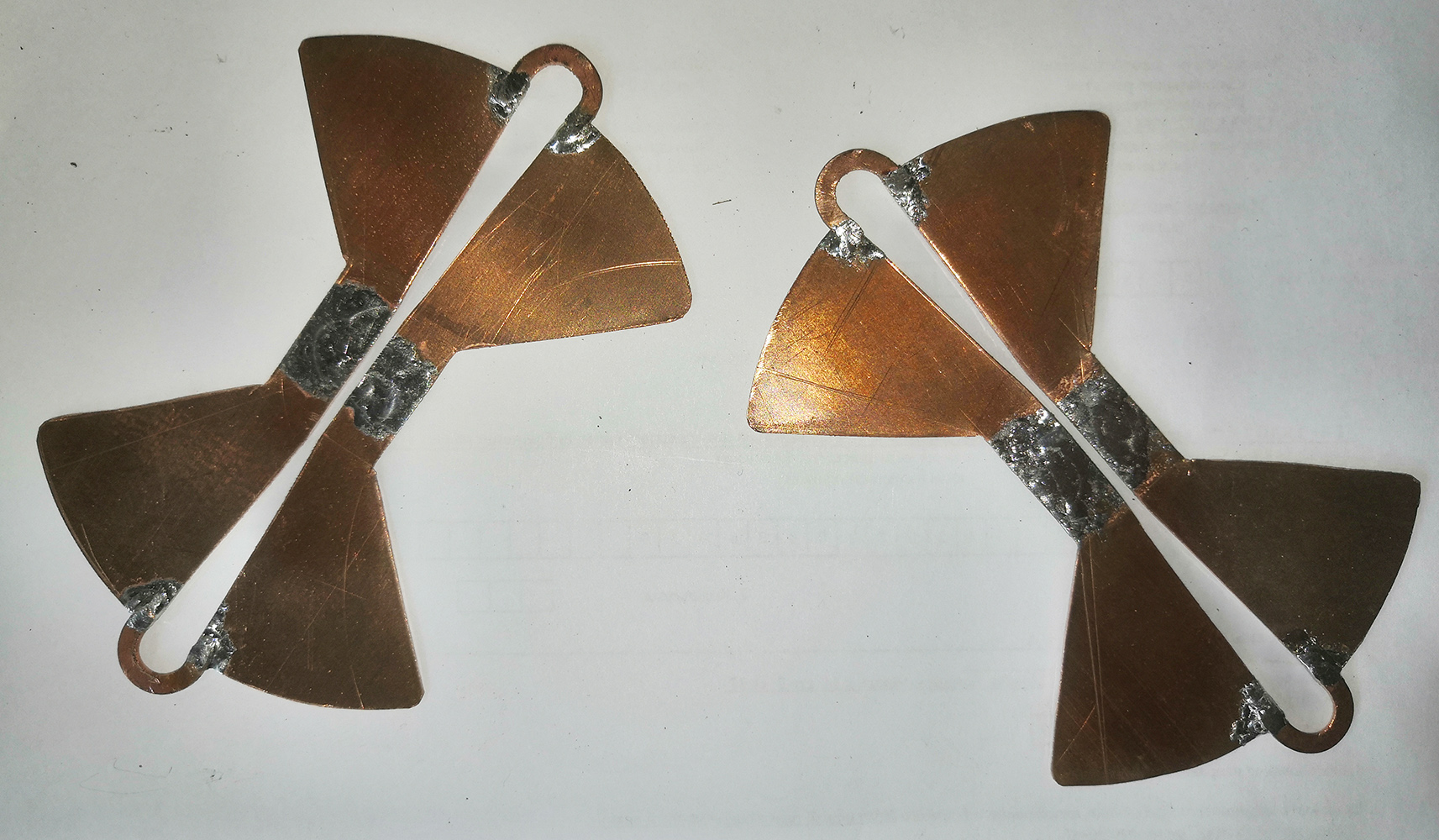

No. I make them according to the drawings -



Share this post


Link to post
Share on other sites
On 15.06.2020 at 0:55 PM, Admin said:

,,, after successive attempts at optimization, I managed to establish the right dimensions for this Batwing antenna(Covid-19), designed by me...


but there is a drawing of this (file for CST Studio)?

Share this post


Link to post
Share on other sites
On 01.08.2020 at 2:57 PM, Sl4va said:

but there is a drawing of this (file for CST Studio)?

Admin, help my ?

Share this post


Link to post
Share on other sites
32 minutes ago, Admin said:

,,,, do you want this ... ??


Yes, with such a reflector. But the VSWR is good, in that it is higher.

P.S. according to the Pythagorean theorem, I calculated that the upper diameter of the "bucket" is 18 cm (more precisely 17.3 mm). if the base is 13 cm, and the board height is 7 cm, with an angle of inclination of 120 degrees

Edited by Sl4va

Share this post


Link to post
Share on other sites
21 minutes ago, Admin said:

,,, see if these files help you..

my batwing.dxf

patch batwing.dxf





Thanks. file extension * dxf, for which program? CAD programs?

maybe there are such files for CST Studio?

Share this post


Link to post
Share on other sites

 any CAD programs or Kompas program...!!!

Yes, your cone is better,,,,


3 people like this

Share this post


Link to post
Share on other sites
37 minutes ago, Admin said:

Yes, your cone is better,,,,


and the VSWR has not changed?

Share this post


Link to post
Share on other sites

VSWR ,,,it changes a little...!!


2 people like this

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

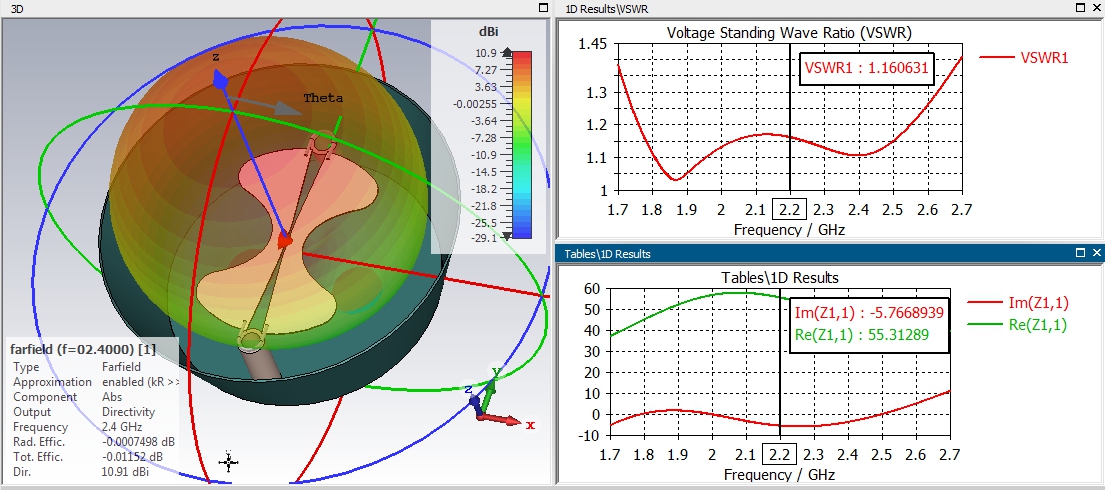

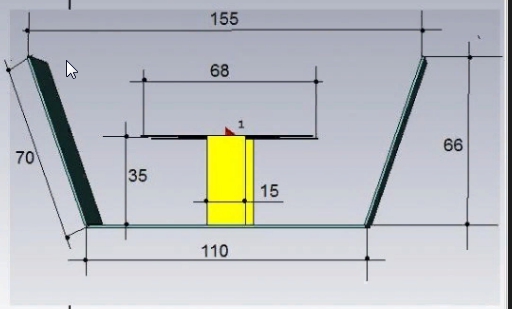

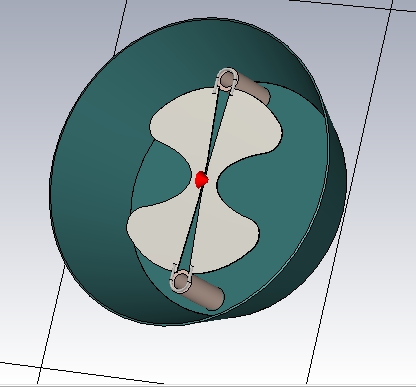

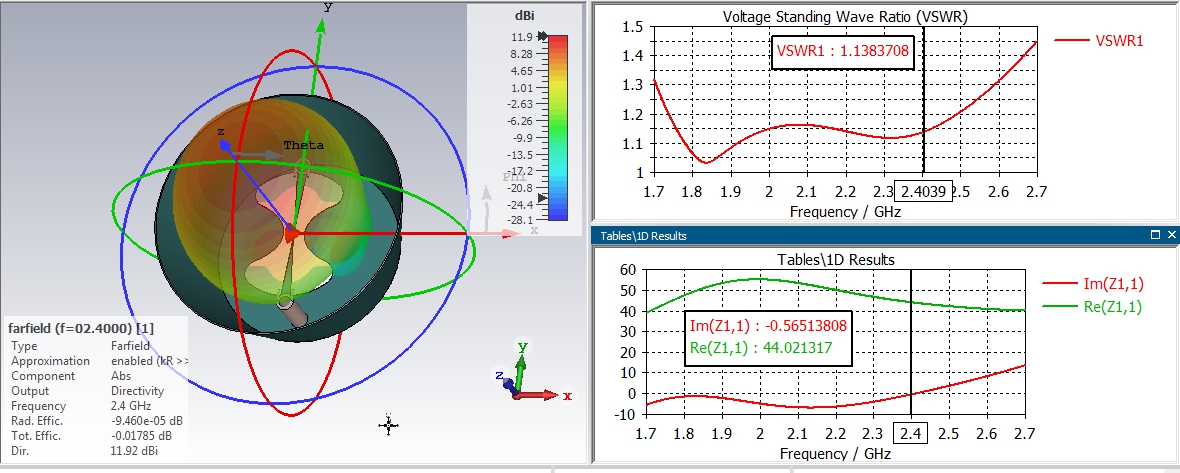

,,,,my simulation...with cone dimensions=>D=154MM;d=120mm ; h=50mm



c=70mm, a=66 mm, b=23,32 mm



gGNEZKpQGdG7Os4ieT2nG2FLiScJVgfXTEYA0Voc

if we take a base of 120 mm, ∠ 120° then the upper diameter should be 23.2 + 23.2 + 120=166,4 (166 or 167) mm

try to simulate like this up Ø167 mm

Edited by Sl4va

Share this post


Link to post
Share on other sites
5 hours ago, Admin said:

,,, see if these files help you..

my batwing.dxf

patch batwing.dxf

,,,,my simulation...with cone dimensions=>D=154MM;d=120mm ; h=50mm


SWR and sizes are beautiful! but it is hard to produce :(



can u model this simple batwing with simple reflector

batwing:


square reflector with wings:




Share this post


Link to post
Share on other sites

,, hey, people, I'm not here like a robot, try to take what I offered you on this forum...!!!

,,, search and you will find what interests you...!!!

2 people like this

Share this post


Link to post
Share on other sites

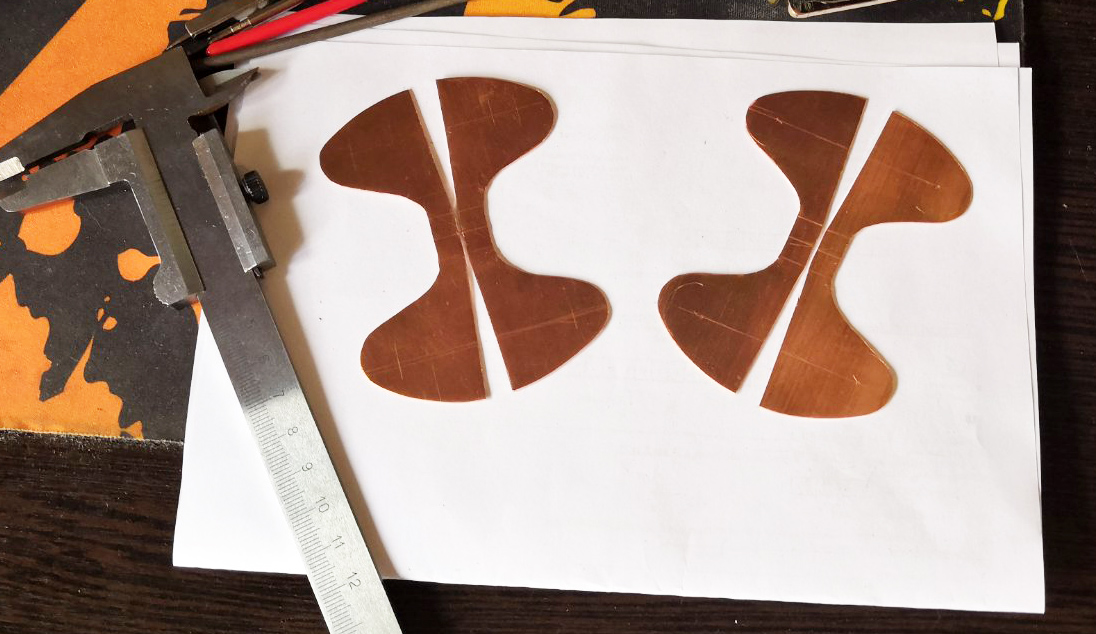

Made another option according to the administrator's sketch


Share this post


Link to post
Share on other sites

Admin, may I ask you to simulate the batwing antenna as a feed antenna to offset parabolic mirror please?

Share this post


Link to post
Share on other sites

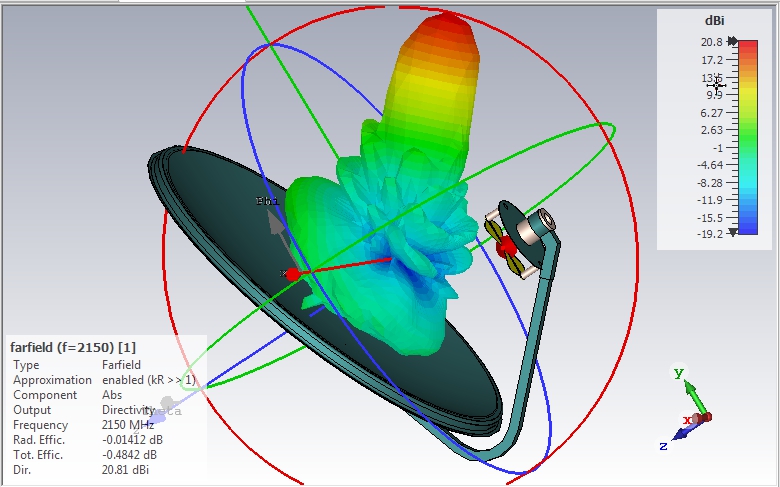

,,, this do you like ,,, ?? parabolic offset 800mm


3 people like this

Share this post


Link to post
Share on other sites
3 minutes ago, Admin said:

,,, this do you like ,,, ?? parabolic offset 800mm

[image removed]

Yes, thank you very much! Really appreciate it!

I see the simulation data is for 2150 MHz. I'd be grateful if you could do it for 2442 MHz. Well, I don't think it will change dramatically because the batwing is wide band.

Share this post


Link to post
Share on other sites
