WiFi antenna Ap-15m for sailors

Started by Admin, January 15, 2017

Posted January 15, 2017

,,,by Oveco ...

When used with the WiFi adapter Alfa AWUS036H managed to keep the relationship at a distance of more than 10 nautical miles (18.5 km).

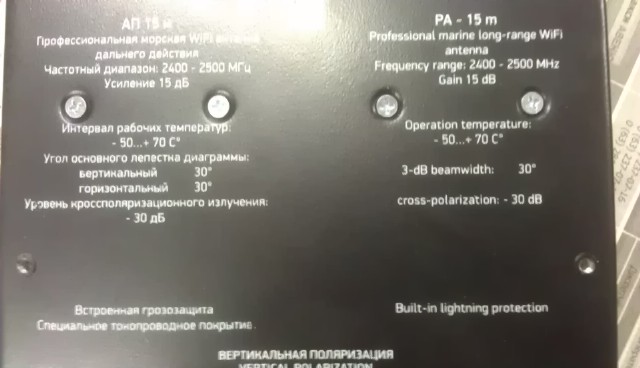

Features Wi-Fi antennas AP-15m:
* Operating frequency band: 2.4 GHz
* Gain: 15 dB

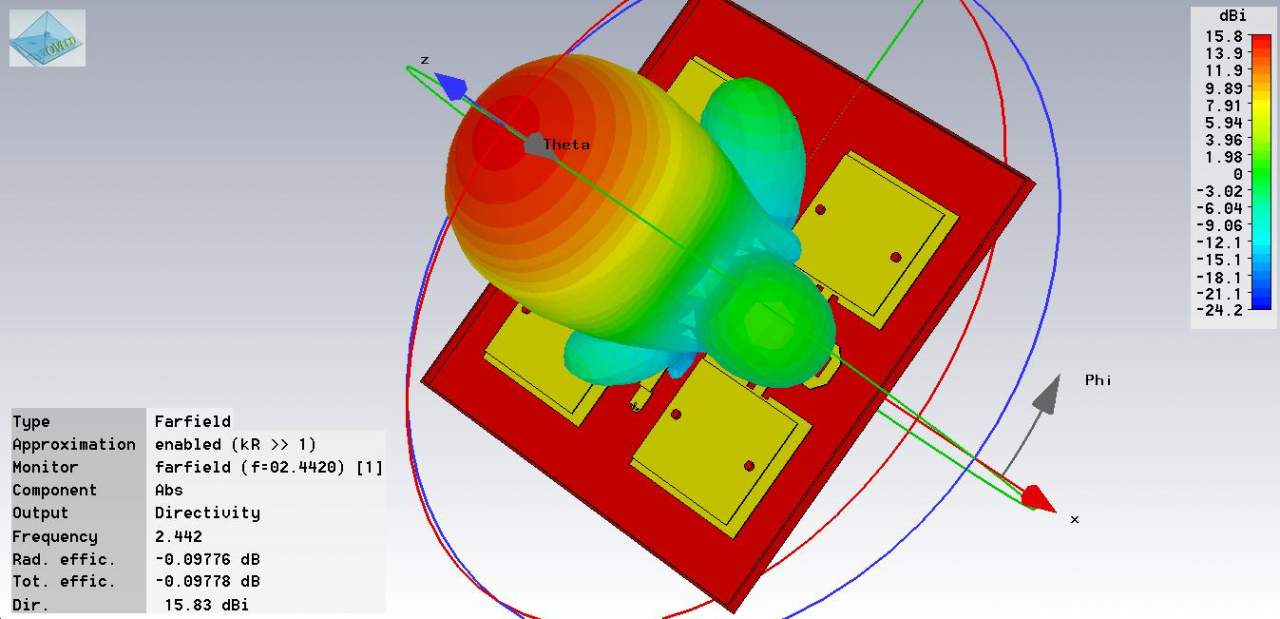

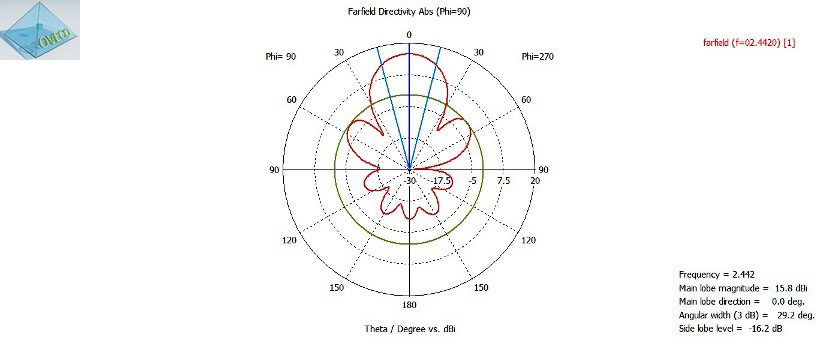

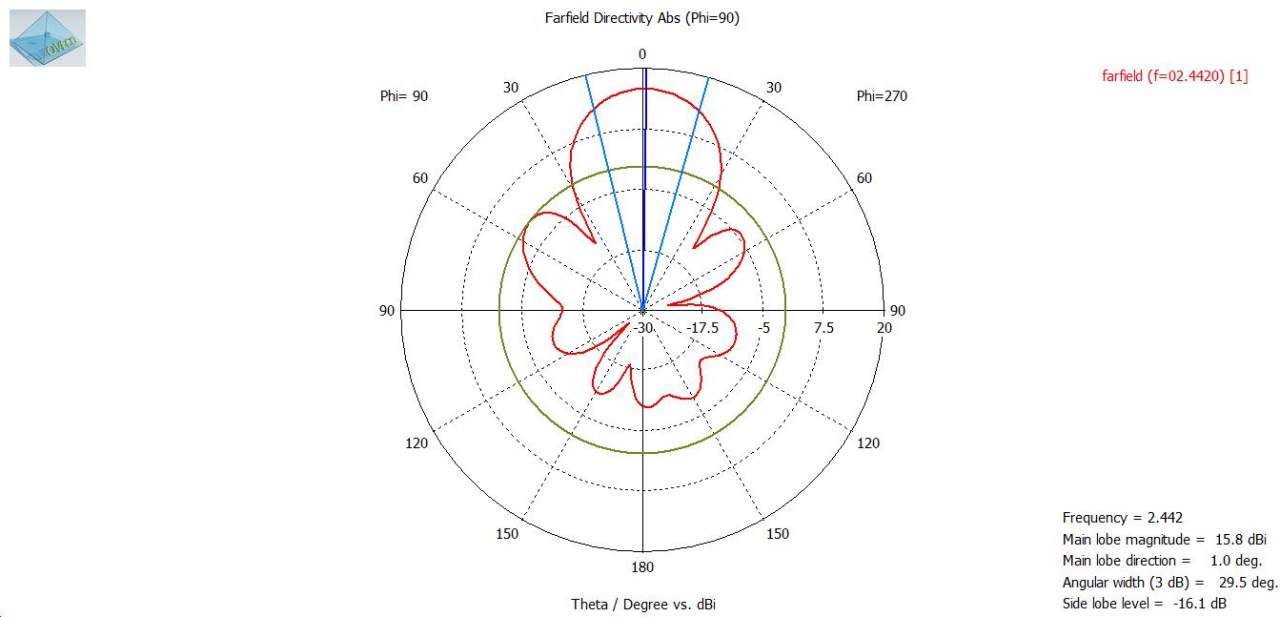

* Angle of the main lobe: 30\30 degrees
* Weight: 0.75 kg
* Dimensions (without mount): 20х20х2см
* Crosspolarization: -30dB
* Antenna efficiency: more than 90%
* 2m cable included, SMA connector
* The antenna has a swivel mount on the tube with the wing nuts
