New Butterfly Antenna

40 posts in this topic
On 17/3/2022 at 18.18, Admin said:

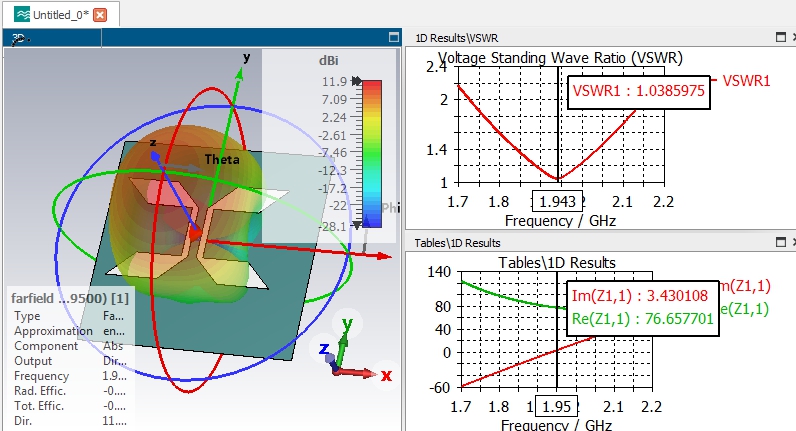

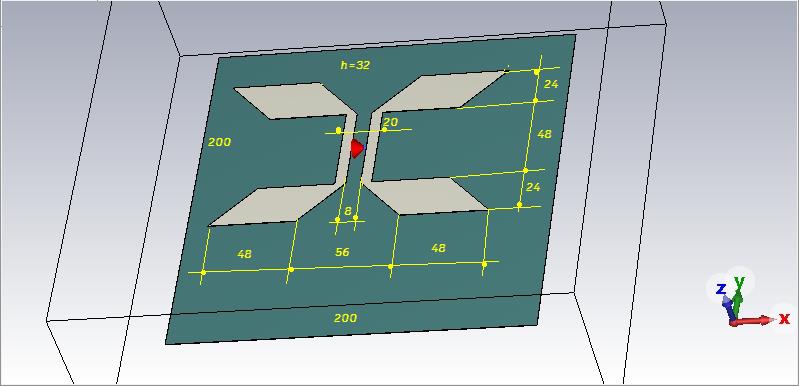

,,, ini akan menjadi detail yang diperlukan ... !!!


can you replace it with 75 ohm

1 person likes this

Share this post


Link to post
Share on other sites

Can it be redesigned for 868 MHZ and 750Mhz ? Asking because fabrication looks quite easy and gain is nice.

Share this post


Link to post
Share on other sites

,,, it is possible, but you have to wait a little ...!!!

Share this post


Link to post
Share on other sites

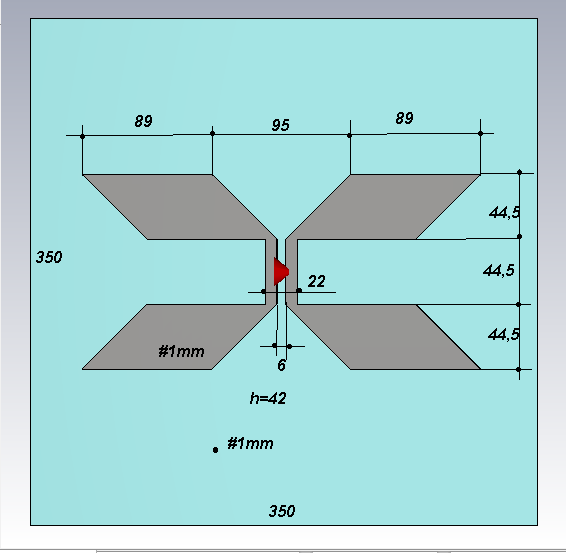

,,,this antenna for such frequencies is not really indicated...!!!


Share this post


Link to post
Share on other sites

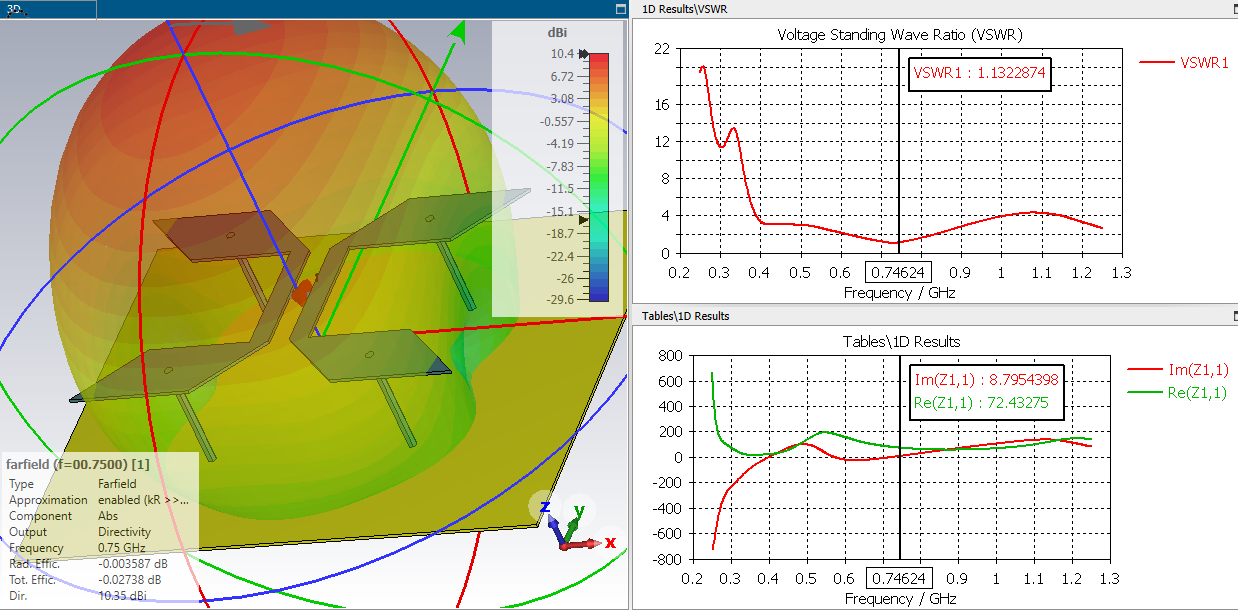

Ok, so any suggestions for something quite small and for 750Mhz ? dbi over 10.





Edited by antenna_kid

Share this post


Link to post
Share on other sites

@Admin

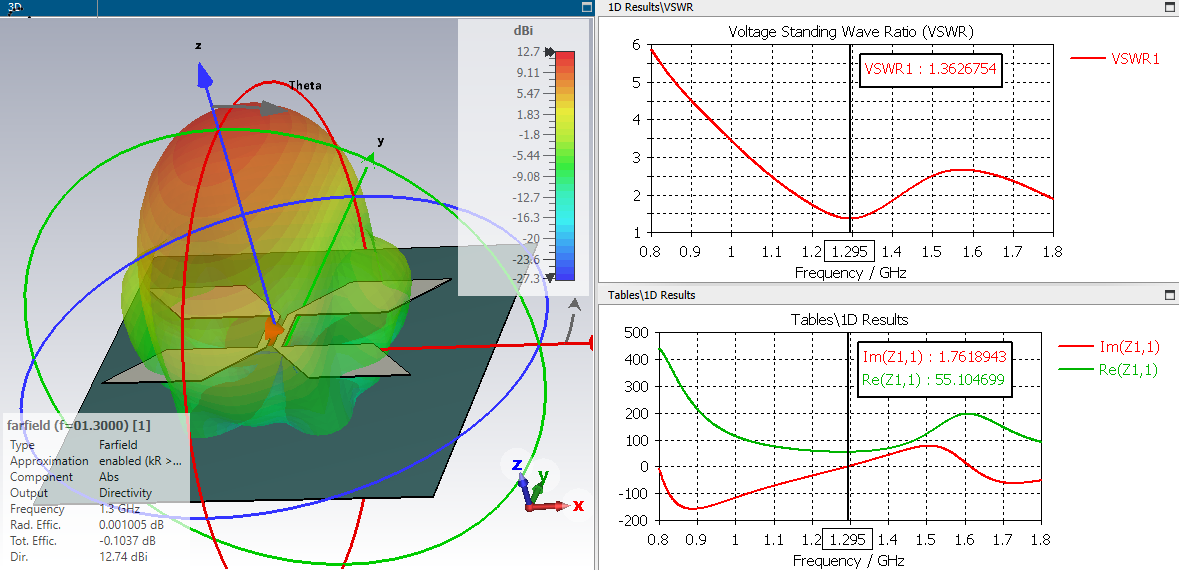

in my opinion, this antenna can be more efficient than a biquad, I would be happy to make such an antenna for 1296Mhz if you are willing to simulate and provide dimensions.

I will compare  with biquod made in same technic.

Edited by eco32

Share this post


Link to post
Share on other sites

,,, you mean antenna Batwing  or Butterfly Antenna...???

Share this post


Link to post
Share on other sites
On 14.12.2023 at 11:53 AM, Admin said:

,,, you mean antenna Batwing  or Butterfly Antenna...???

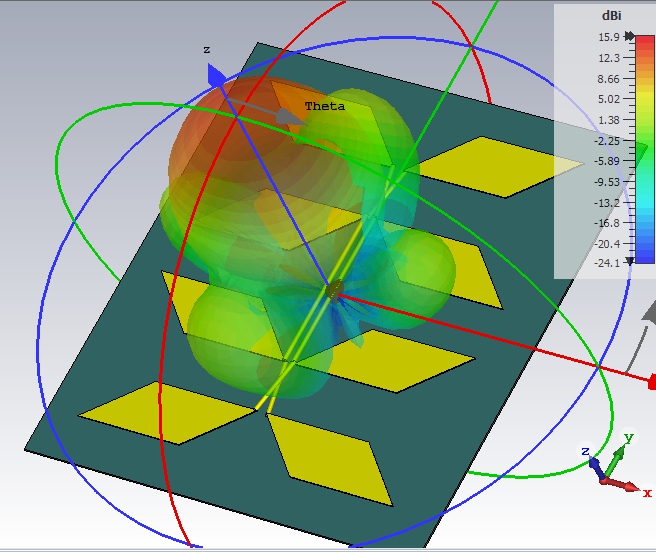

this one:




Edited by eco32

Share this post


Link to post
Share on other sites
