Antenna 3G/4G LTE Gellan FullBand-15M BOX

Started by Admin,

Posted

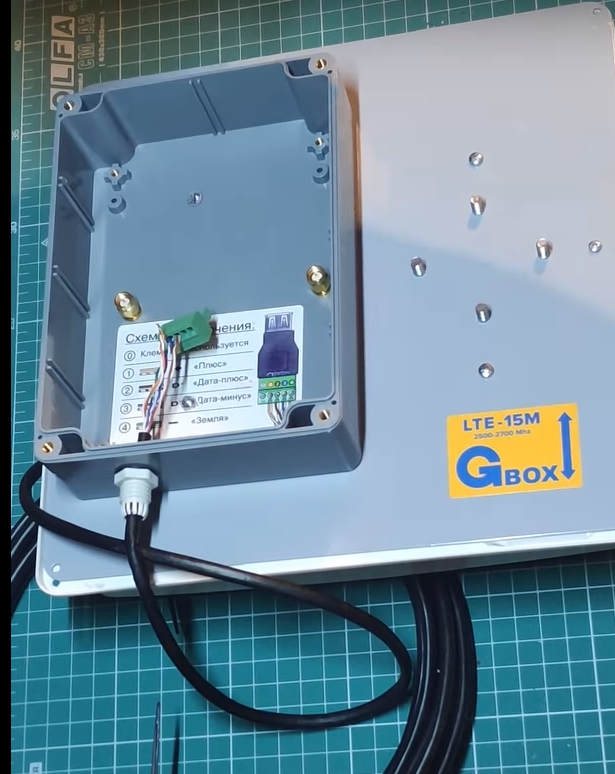

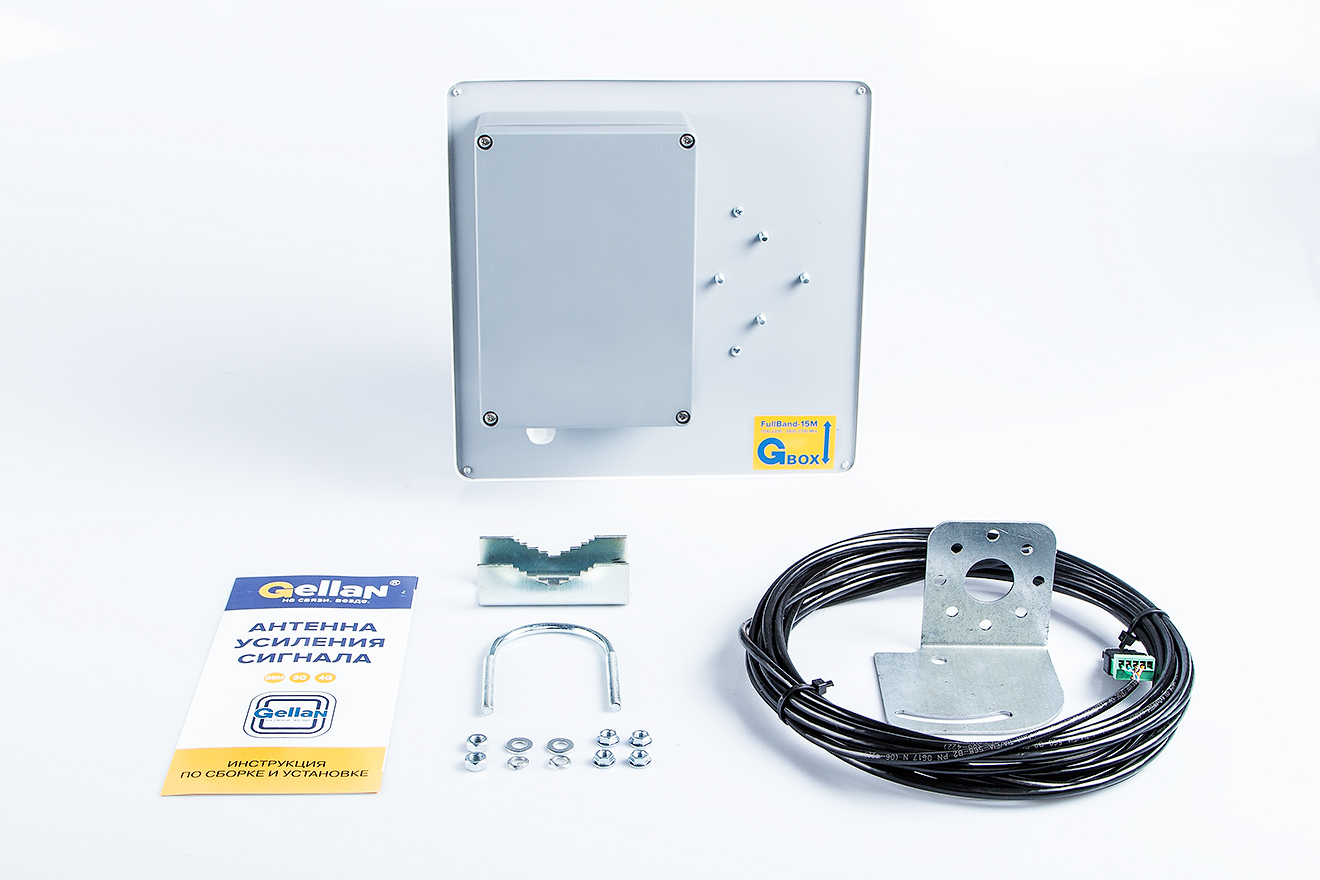

Transmitting and receiving MiMo antenna GELLAN FullBand-15M BOX is designed to organize data transmission via 3G technologies (2100МГц) and 4G LTE (1800/2600mhz). The antenna provides a stable mobile Internet access. GELLAN FullBand-15 significantly improves data transfer rate and ensures a stable connection with the base station of the cellular operator at a distance of 10 kilometers.

The range of frequencies

MHz

1700-2700МГц

3G (UMTS2100)
4G (WIMAX,LTE1800, LTE2600)

Gain,
dBi  12 15dBi...

Input impedance, Ohm  50

The CWS in the operating range  <1.5

Antenna polarization  vertical/horizontal

Connector type  2 x SMA-male

Cable  7 meters UTP->USB

Overall dimensions, mm  240 x 240 x 95

Weight, kg  1.25






Share this post

Link to post
Share on other sites

Posted

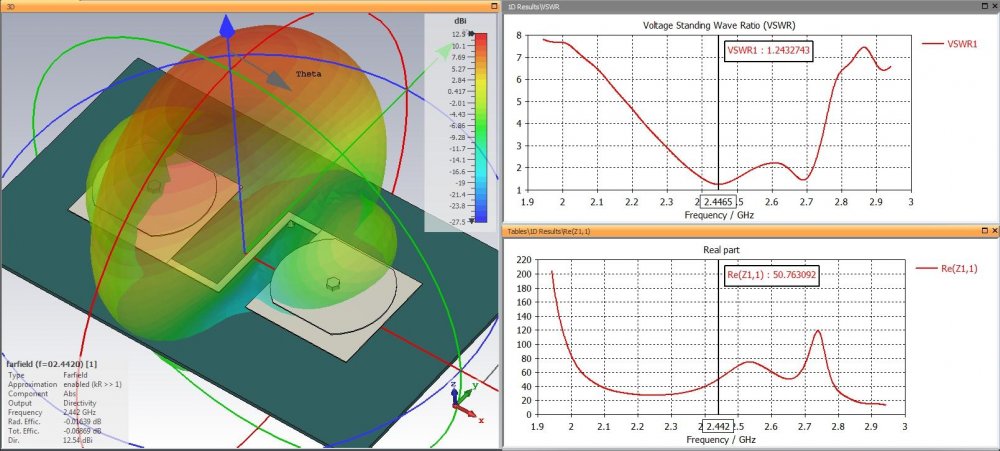

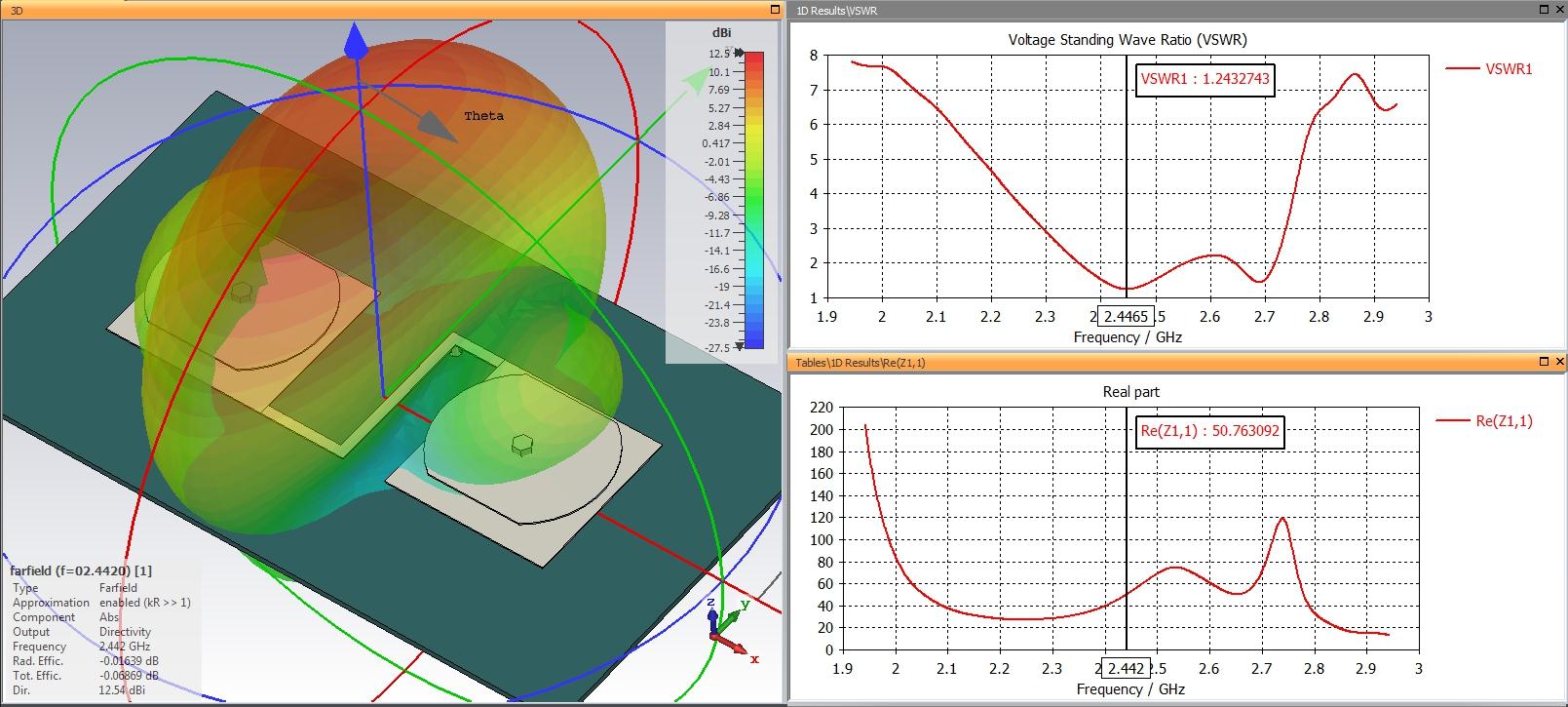

,,,,and yet I do not see bandwidth of 1700 ---- 2600MHz...???!!!




,,,but of course, the antenna has a circular polarization....!!!!
