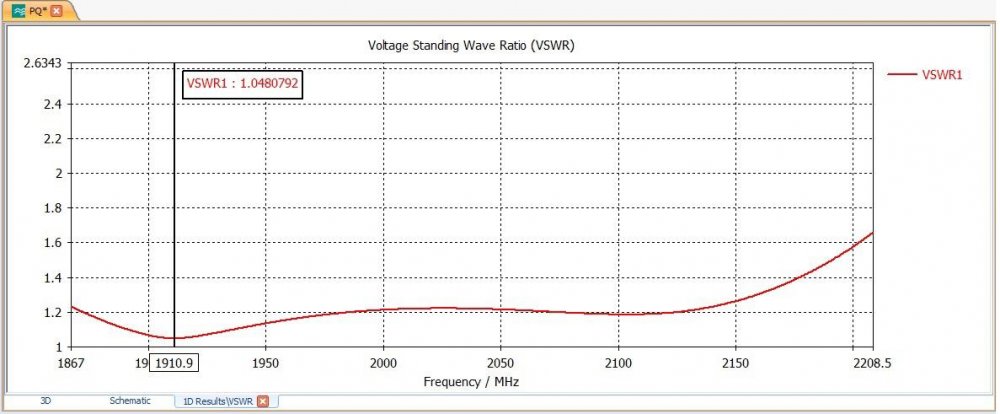

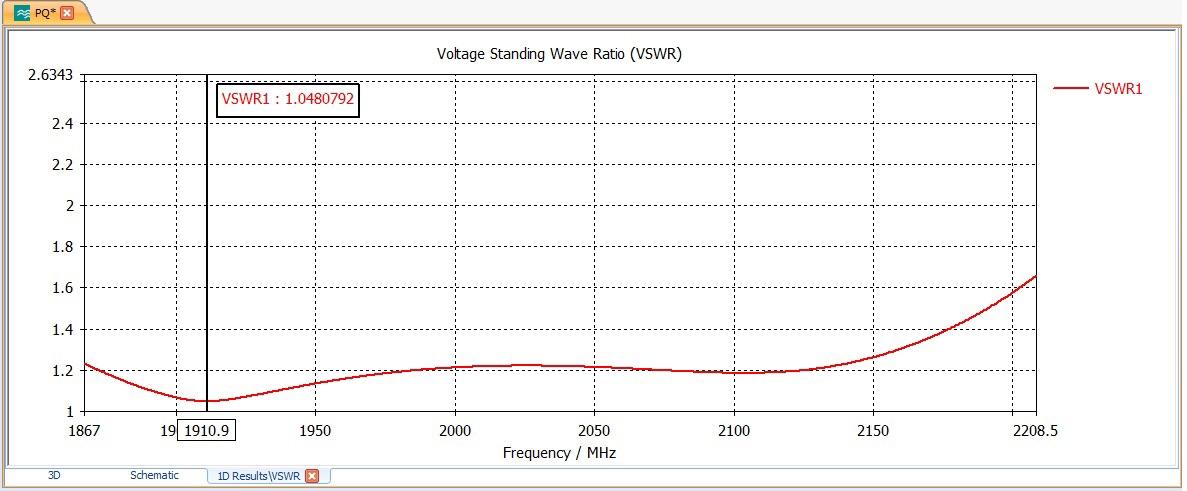

Compact panel 3G (honest 14dBi, VSWR<1.4)

Started by Admin,

Posted

by Vodkaman user...

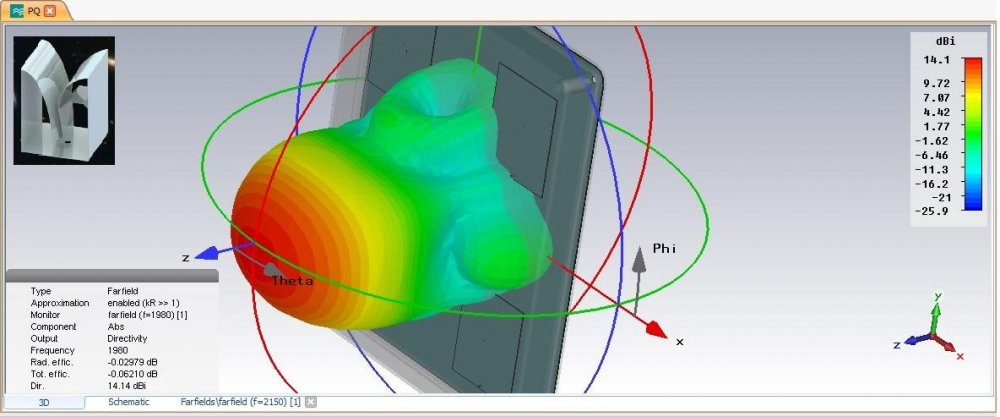

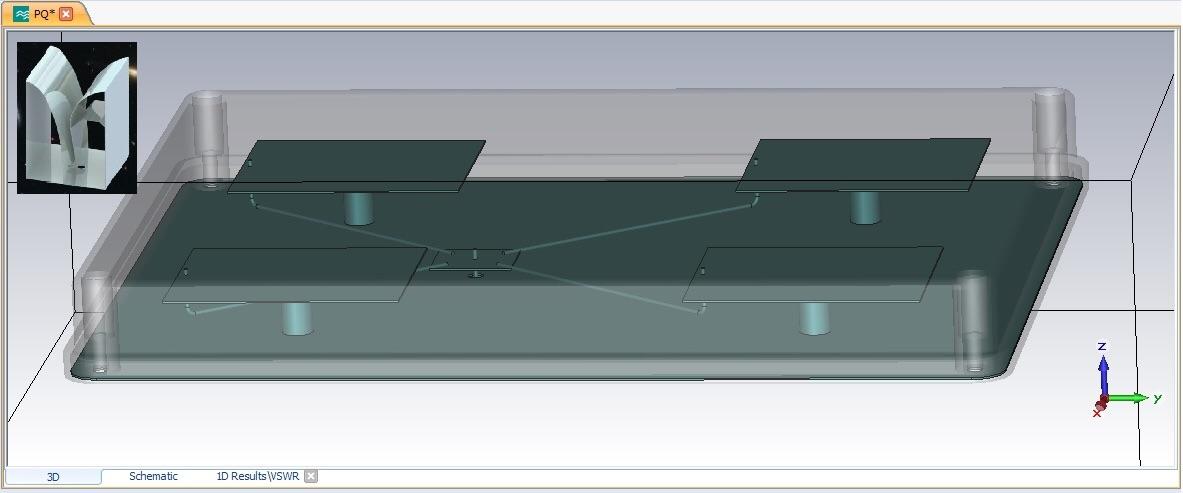

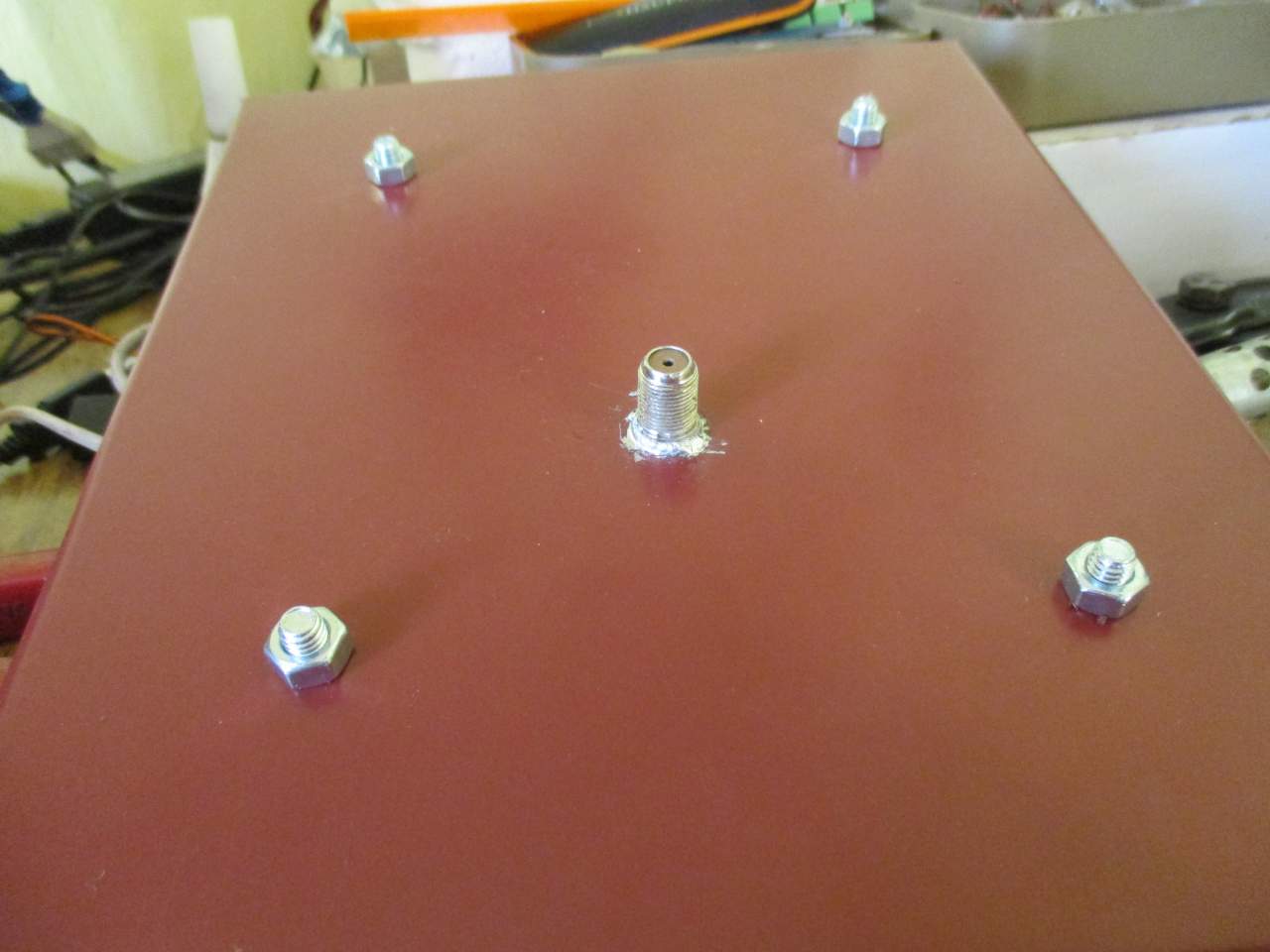

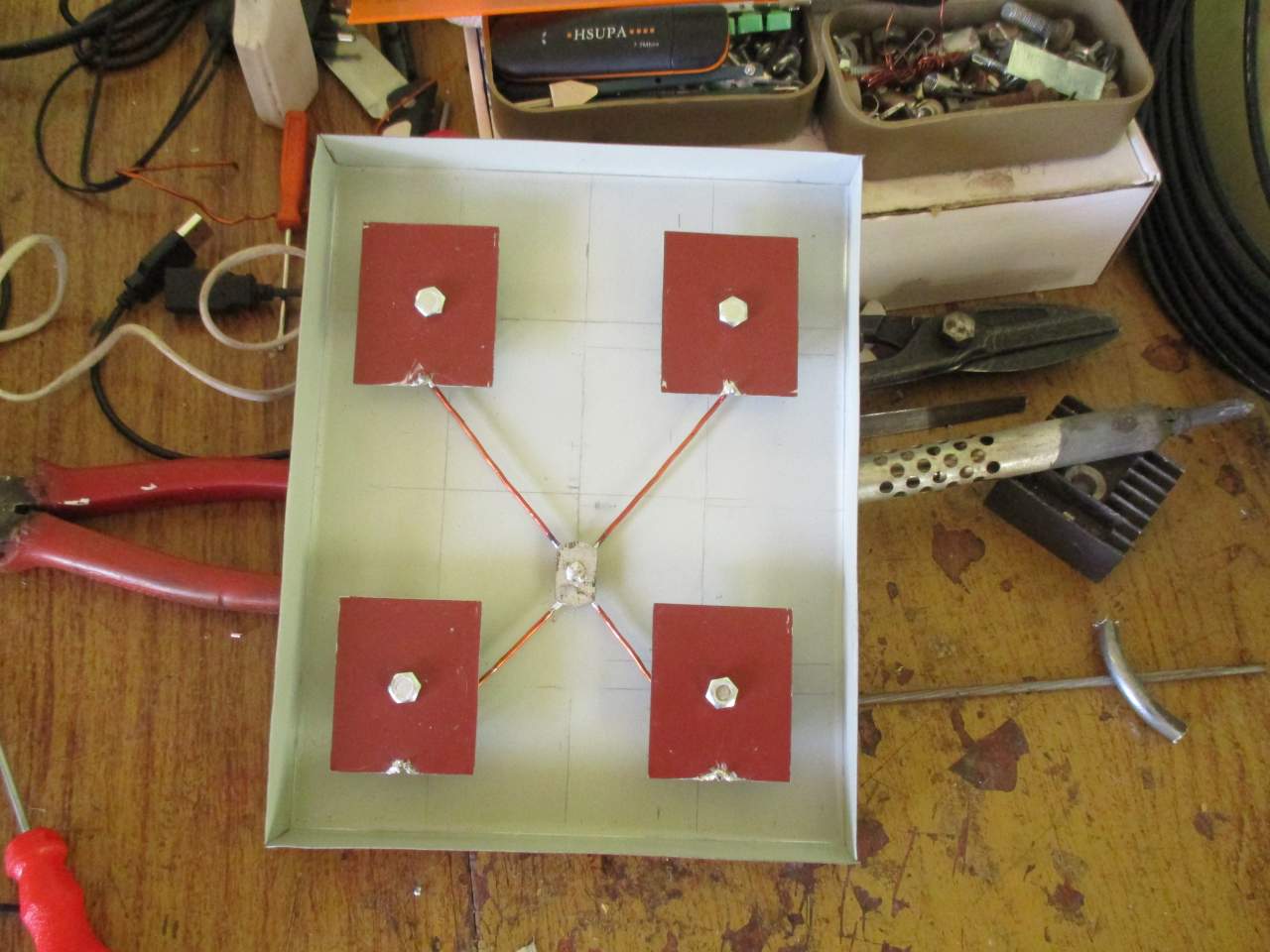

"Useful this thing or not, you decide, but I was curious to Tinker. The basis is the biggest RK 240x195mm. Material - galvanized, 0.5 mm copper wire 1.5 mm. Box (cover) only such other firm requires recalculation."








Achievement practice ..?????





PQ1sf.pdf

Share this post

Link to post
Share on other sites

Posted

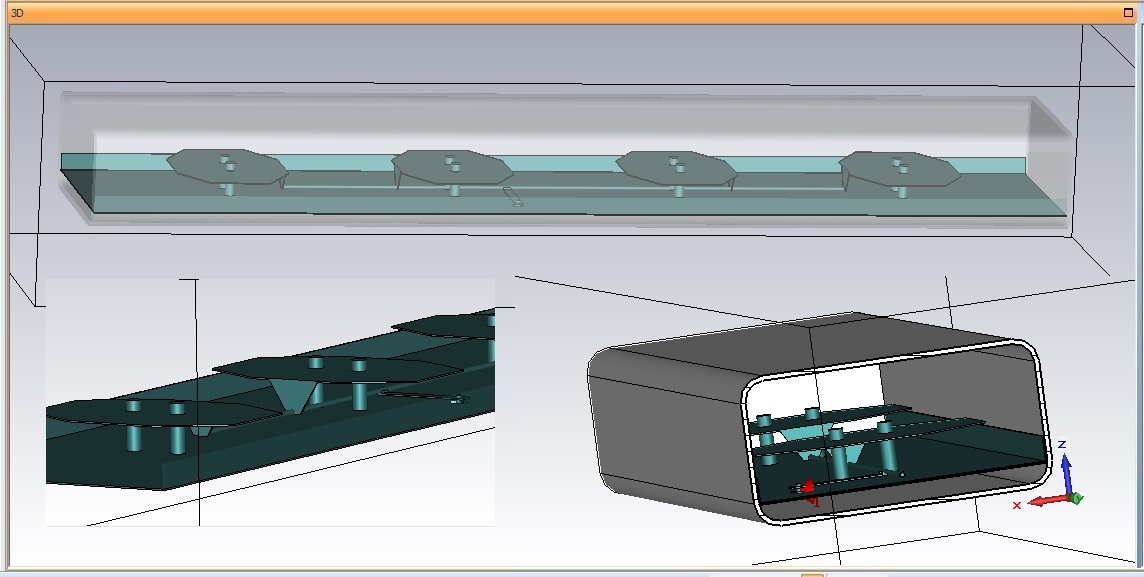

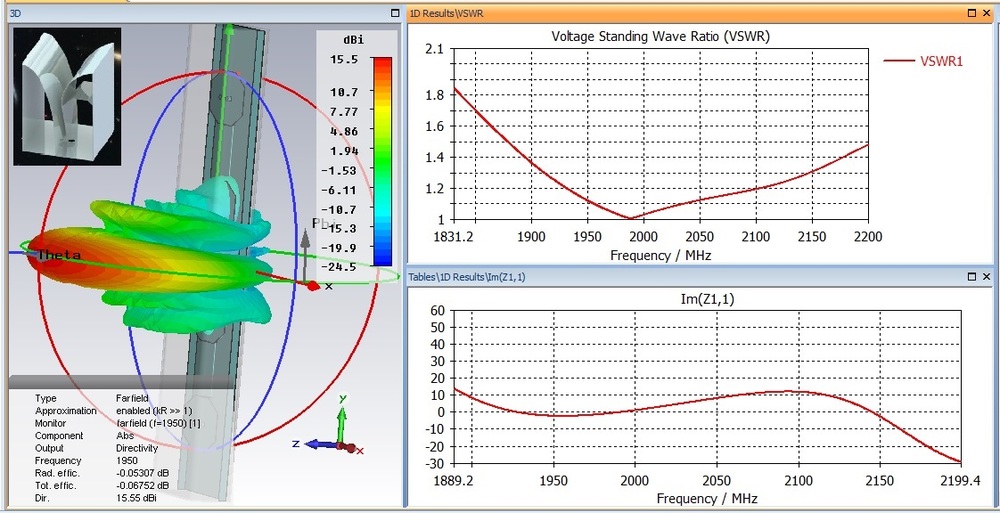

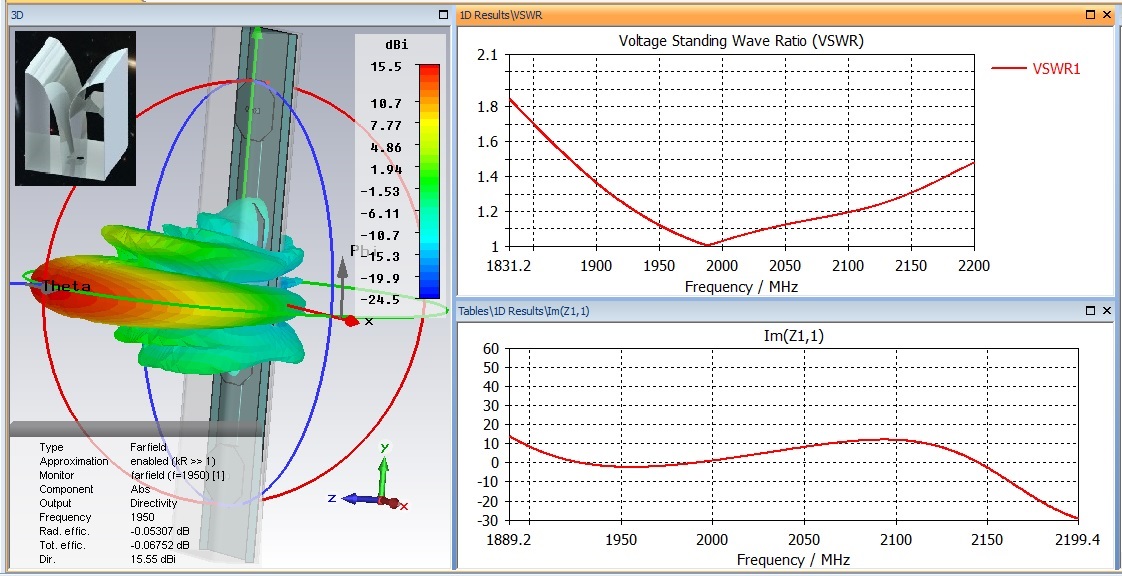

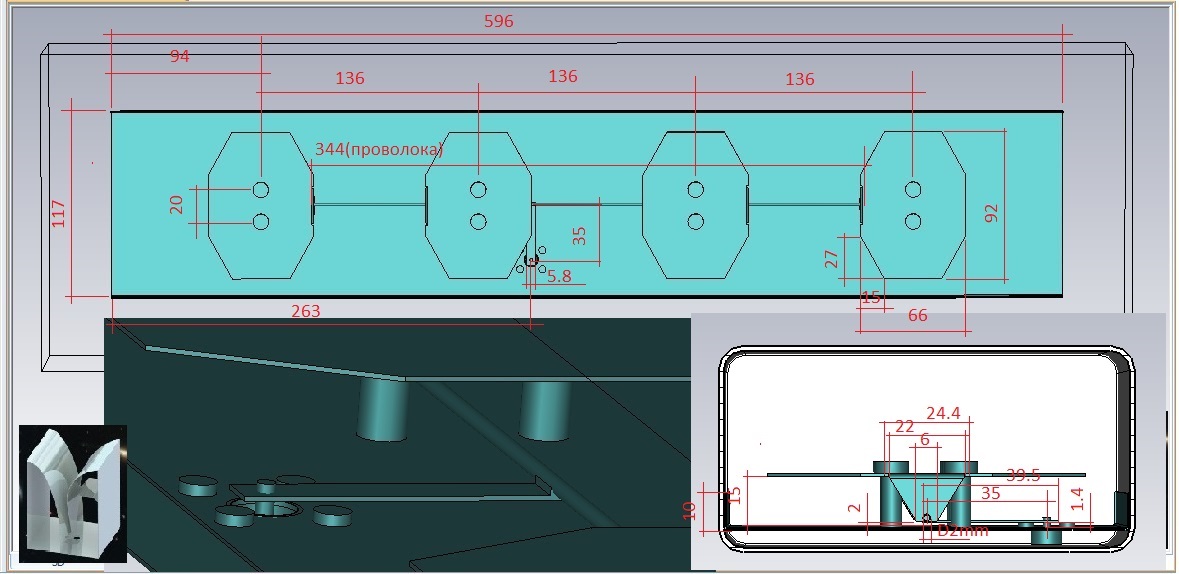

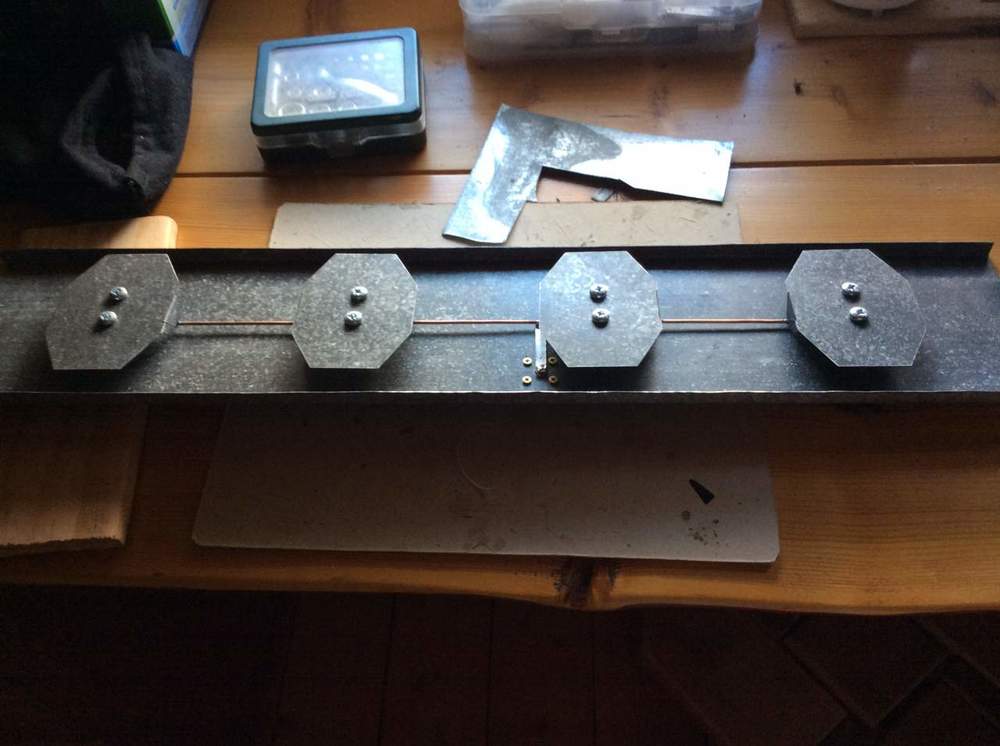

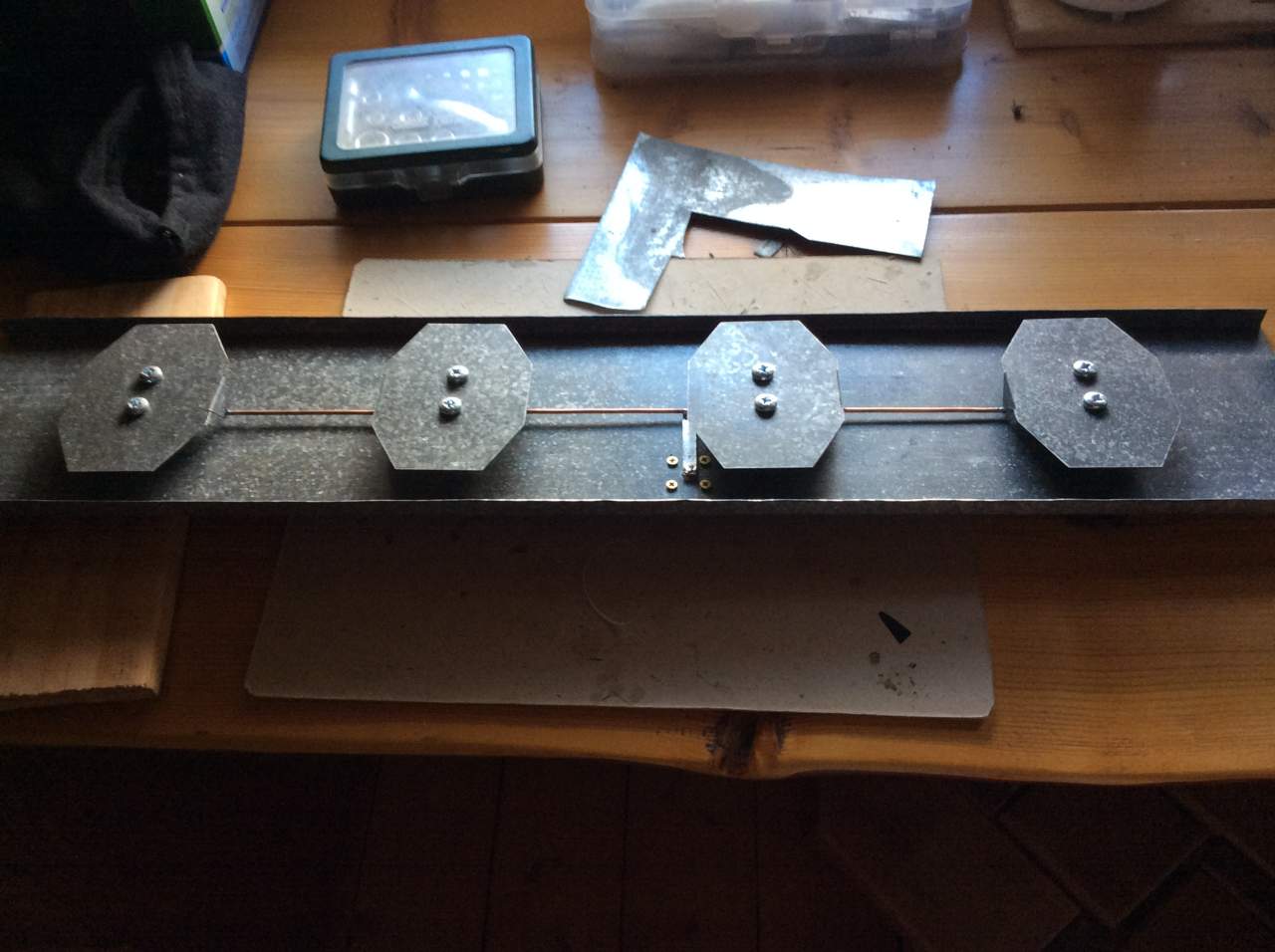

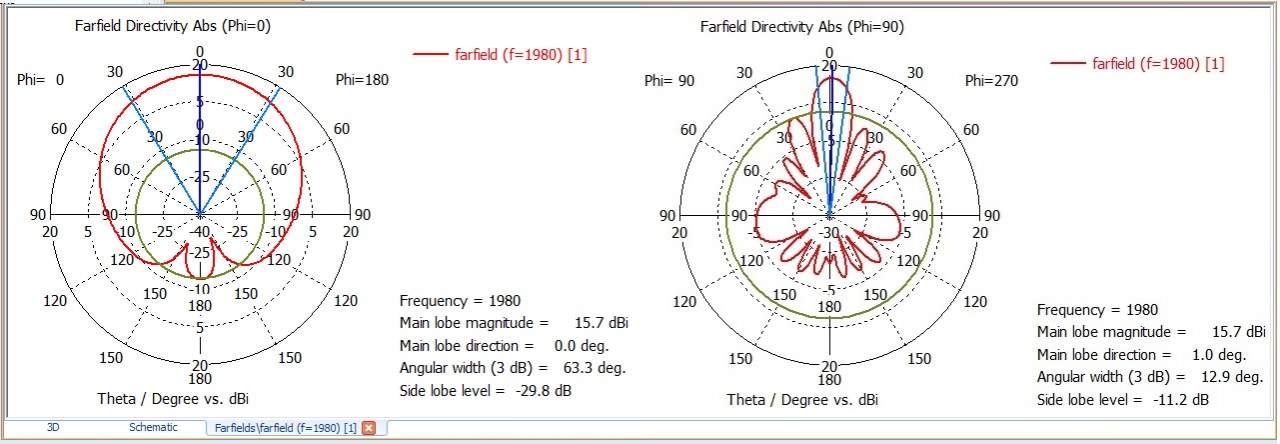

Another achievement of Vman...

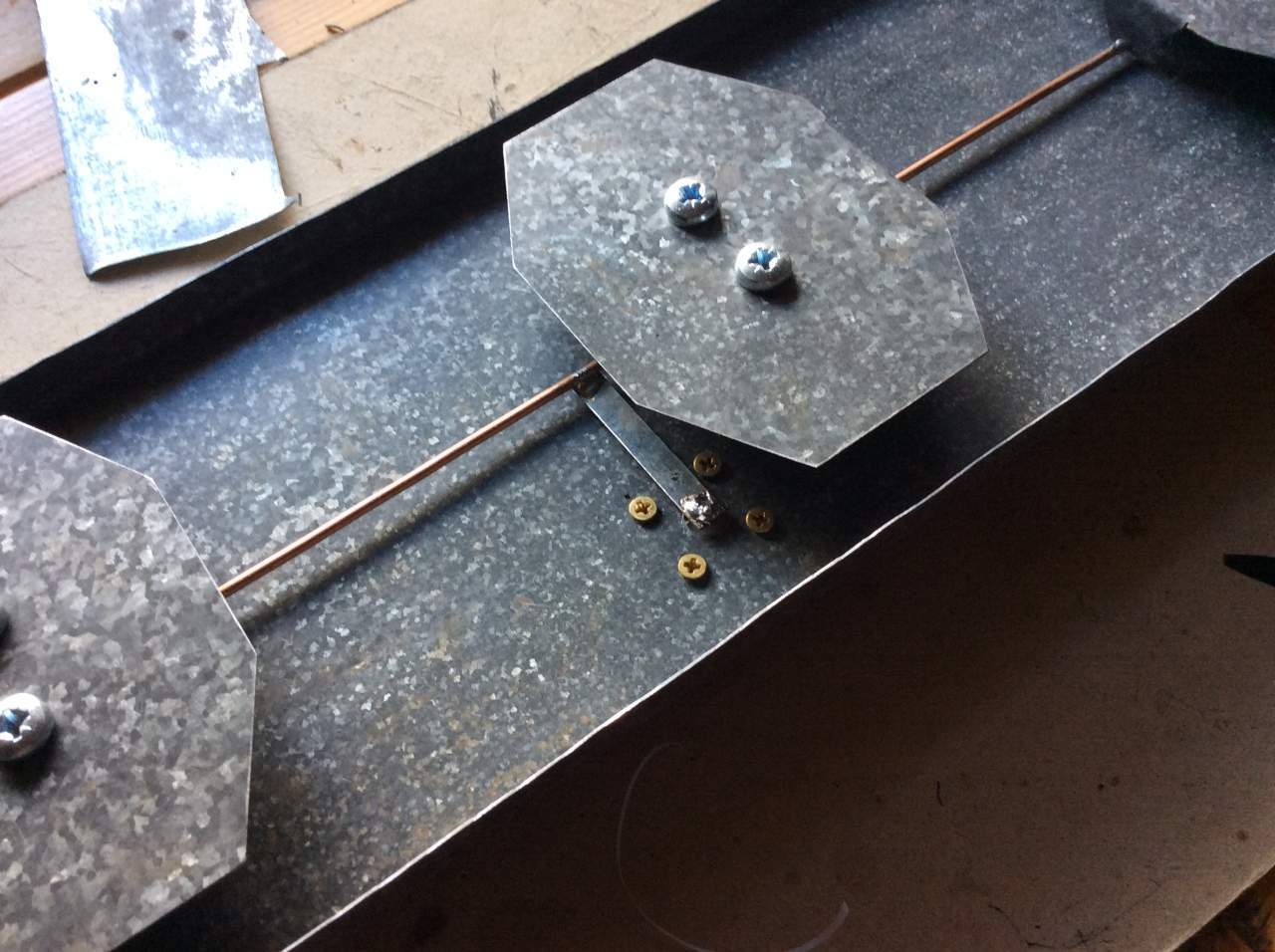

image (1).jpg






2 people like this

Share this post

Link to post
Share on other sites

Posted

Poor polarization...

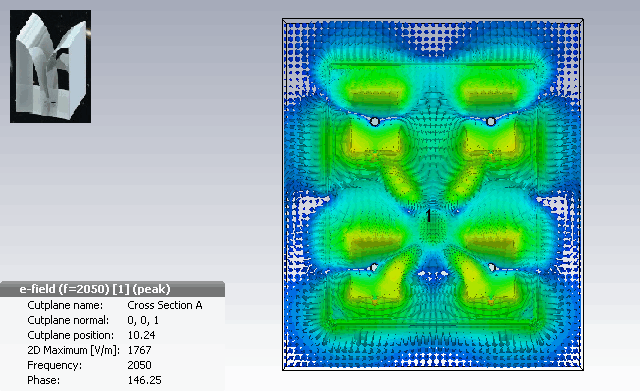

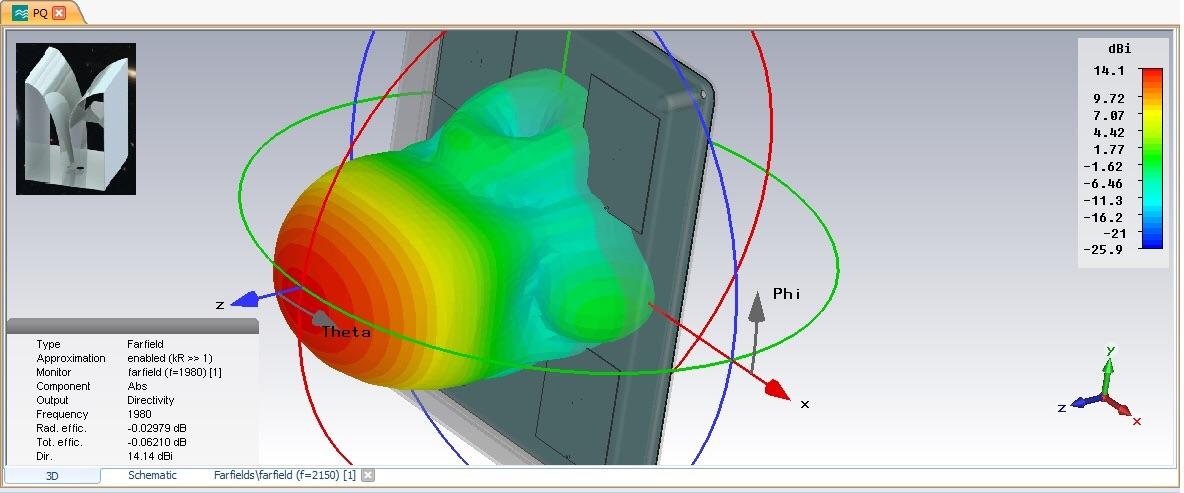

in the animation field, it is seen that the antenna is turned "paleoliticheskoi" polarization, the lower patch remains in phase from the top to the same.
in short, power is not good. it is necessary to draw a line at right angles to the edge of the patch, and not to the line between the patch and screen.

Share this post

Link to post
Share on other sites
