Wilkinson Power Divider

Started by Admin,

Posted

In the field of microwave engineering and circuit design, the Wilkinson Power Divider is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports.







1 person likes this

Share this post

Link to post
Share on other sites

Posted

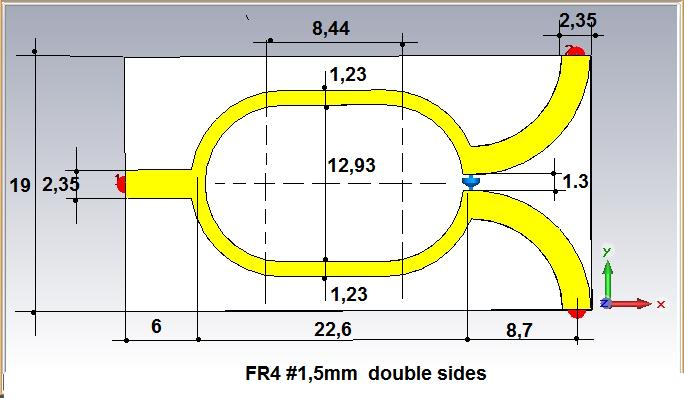

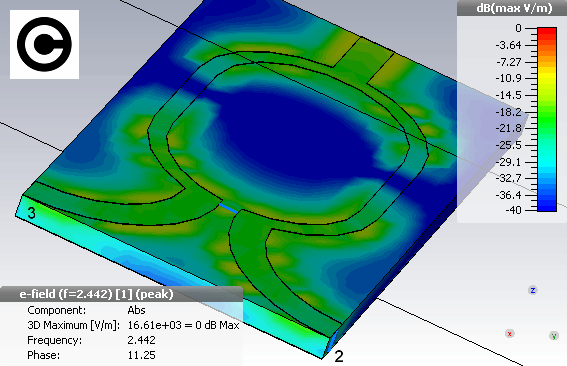

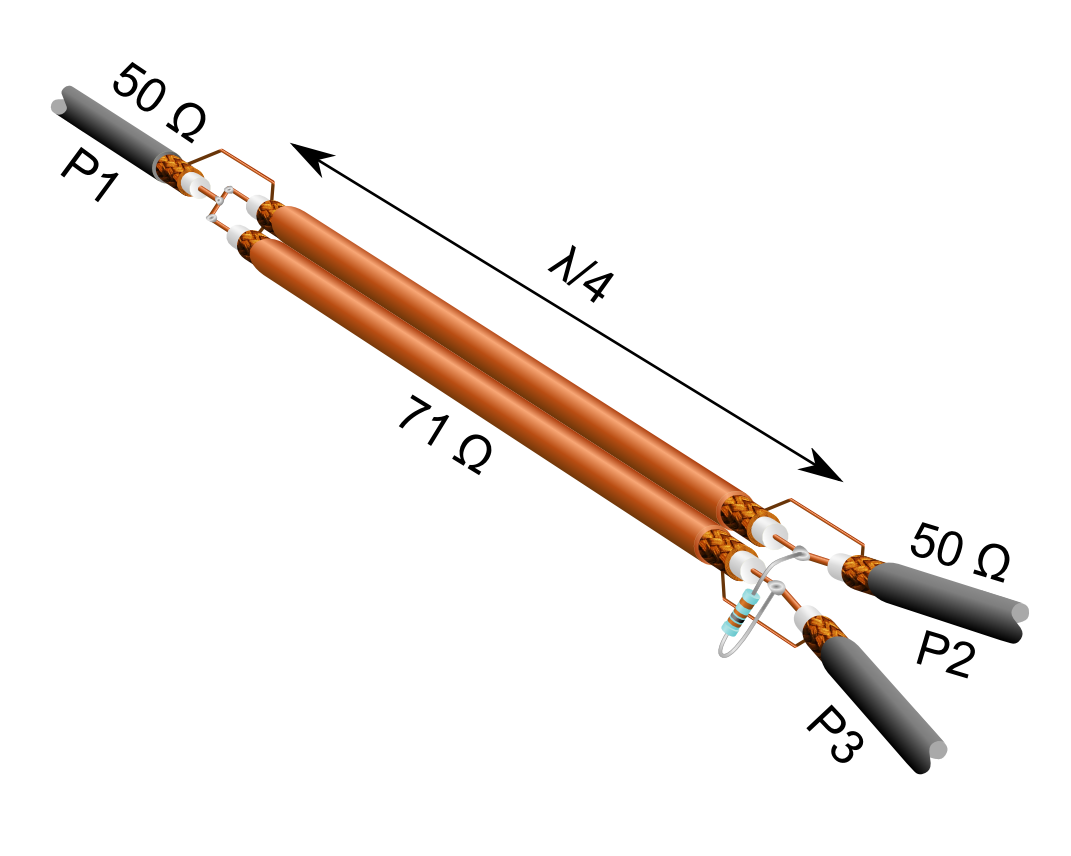

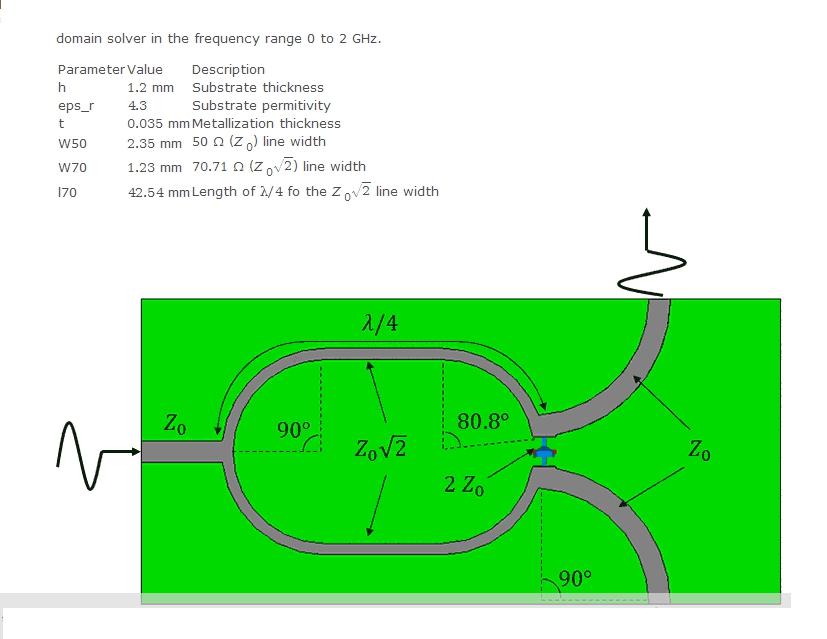

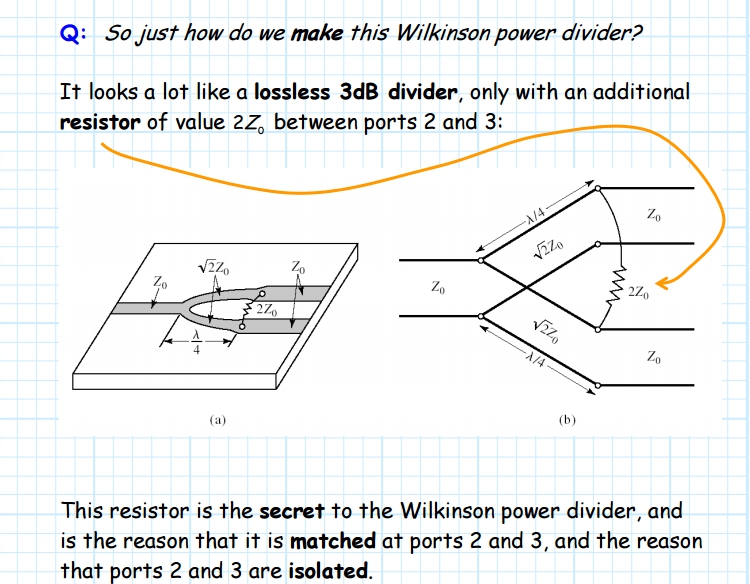

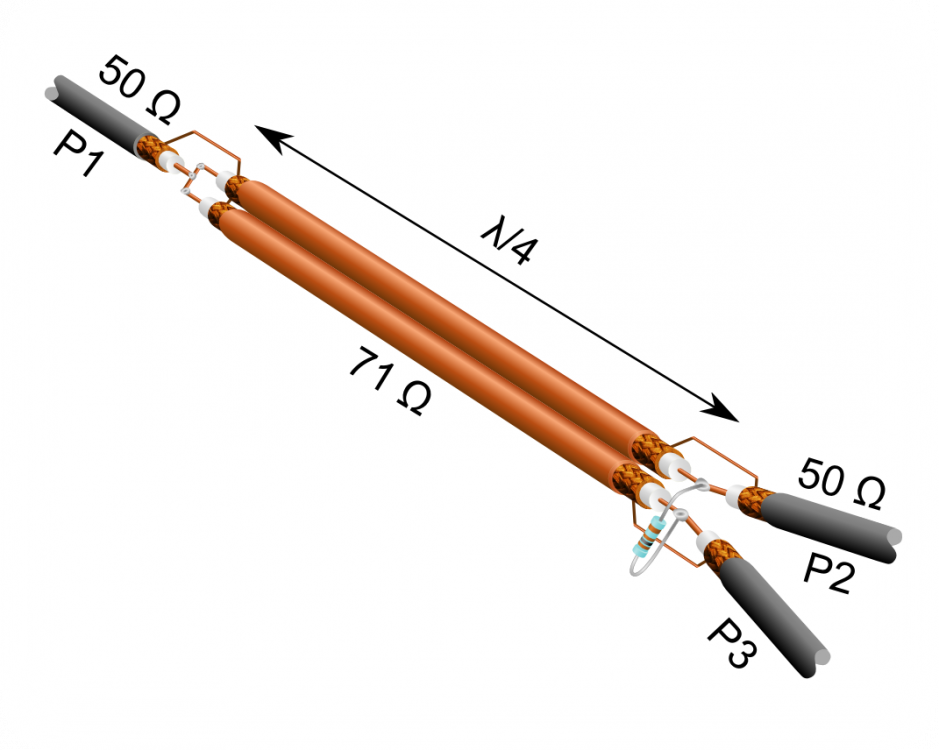

Practical realization with coaxial cable...


3 people like this

Share this post

Link to post
Share on other sites
