Admin

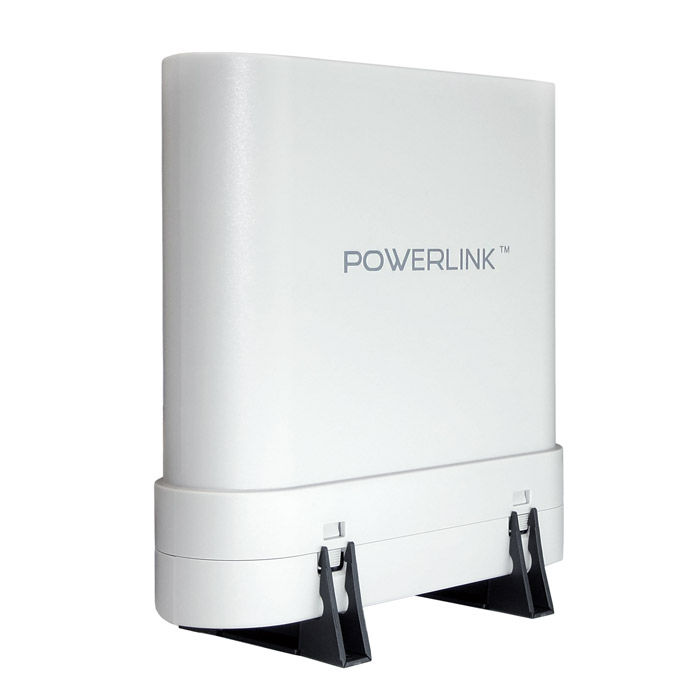

POWERLINK Outdoor Plus

Ultra Long Distance Indoor and Outdoor WLAN Wireless USB Adapter
1W High Power 28dBm w/Hi-Gain 14dBi Patch/Panel Antenna
Improving 12X Signal Reception and Distance and 6xSpeed
 Specification :


Model Name Outdoor Plus

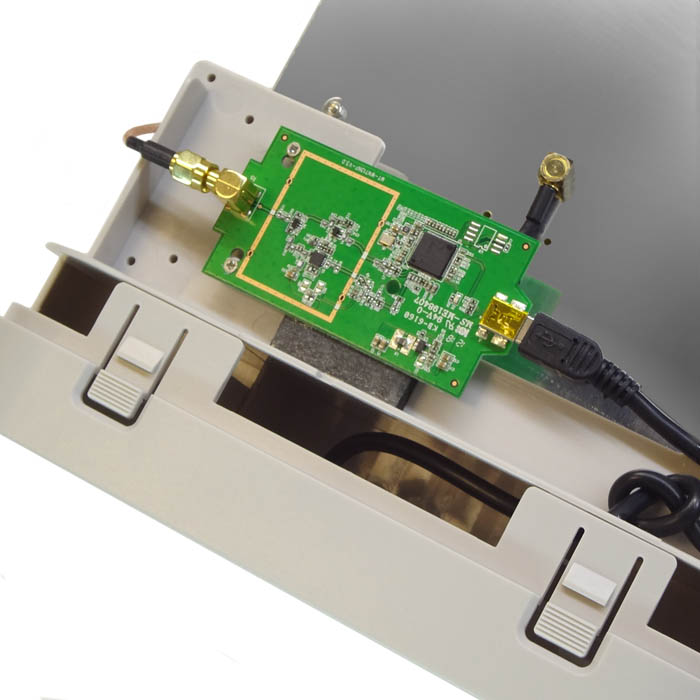

ChipsetRalink RT3070

Standard IEEE 802.11b, IEEE 802.11g (WIFi Compatible), 802.11n

Frequency Band 2.412GHz ~ 2.484GHz unlicensed ISM band

Data Rate IEEE 802.11b: 1, 2, 5.5, 11Mbps   IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps

Output power 28±1.5dBm (1000 mw)

Power Consumption Transmit:<1000mA Receive:<600mA

Antenna

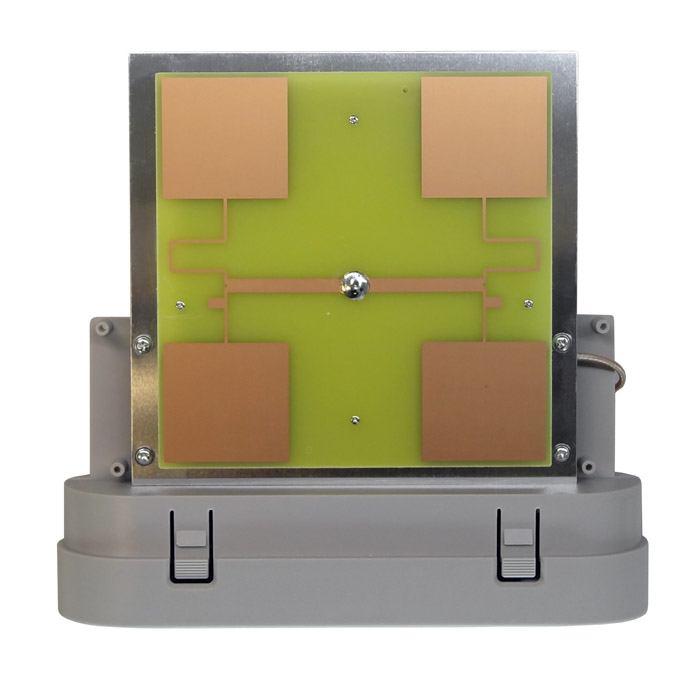

14 dBi directional panel antenna built-in

Operating RangeUp to 2000 meters (Depending on surrounding environment)

Security WEP (64/128/256bit), WPA, WPA-PSK,  WPA2 TKIP/AES, WPA2-PSK

Modulation 802.11b: BPSK,QPSK, CCK 802.11g: OFDM

I/O Interface USB2.0/1.1

Operating System Windows XP, SP2, Vista, 7, 8, MAC, Linux

Operating Temperature -20°C ~ +70°C

Storage Temperature -40°C ~ +80°C

Humidity 10 ~90% (non-condensing)

Channel 2412~2462 MHz (US) 11 channels,  2412~2472 MHz (EU) 13 channels  2412~2484 MHz (Japan) 14 channels

LED Link/Active

Certification FCC RoHS compliant







1 person likes this

Share this post


Link to post
Share on other sites
7 hours ago, Techd said:

do you have the measurement?

,,,,see this...
