devton

Dual Yagi antenna with single vibrator and single reflector

Started by devton,

Posted

i saw dual-barrel gun today...can yagi work like that?

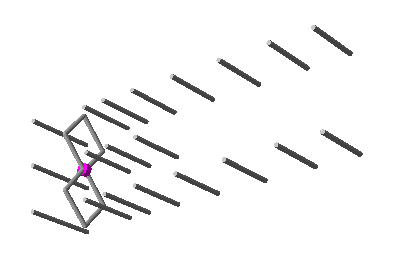

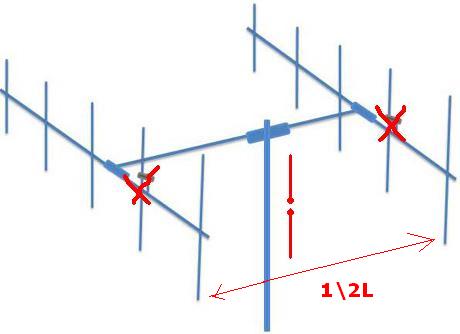

LIKE 2 stacked yagi, but 1 vibrator,1reflector BUT 2 sets of directors?

placed side-by-side at 1\4wavelength









vibrator should be 2-4 mm closer to first directorS (not like in single yagi)

but reflector-vibrator should stay same (29mm)




1 person likes this

Share this post

Link to post
Share on other sites

Posted

To enlighten ...!!!!

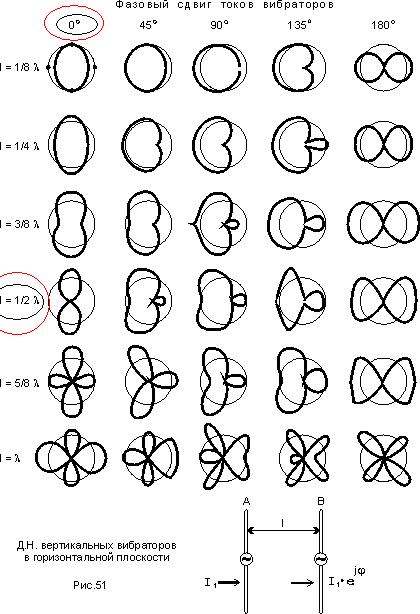

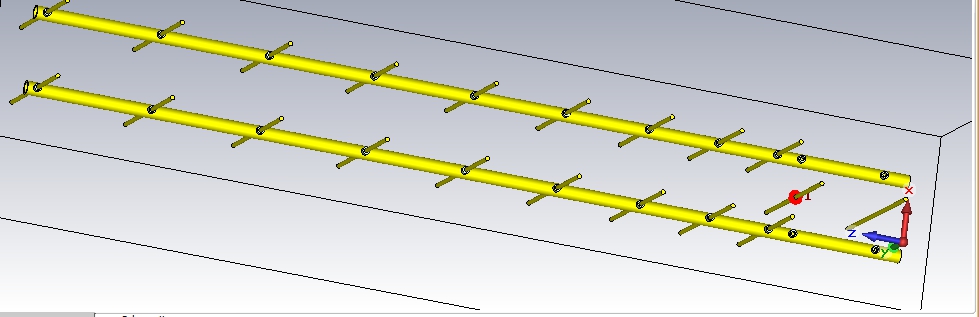

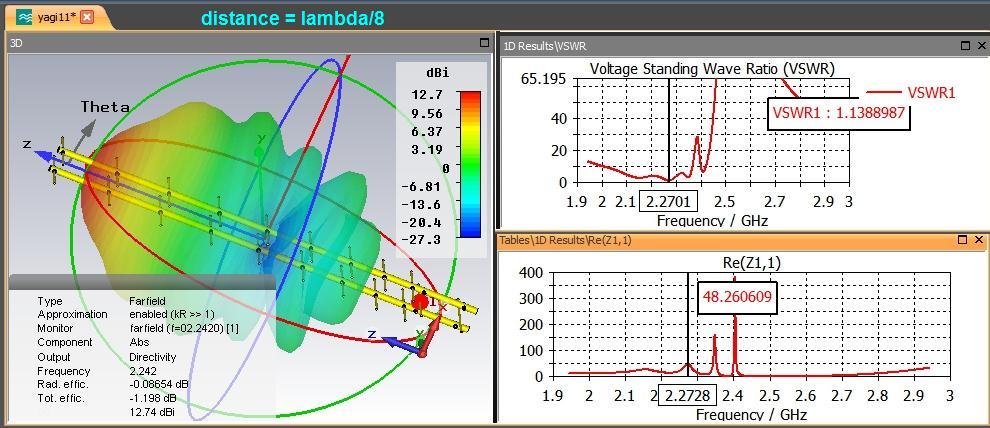

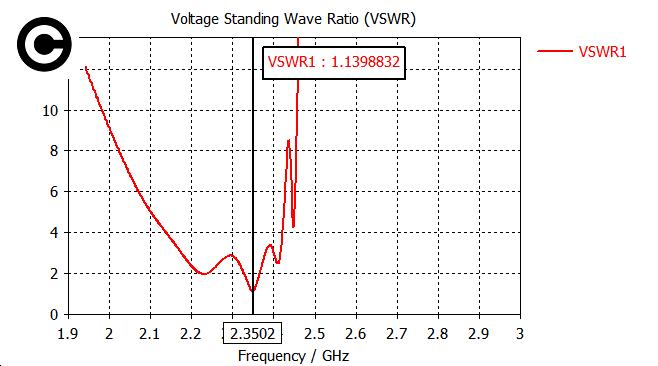

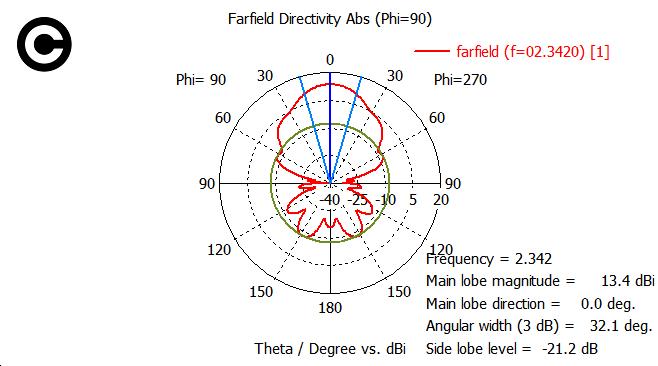

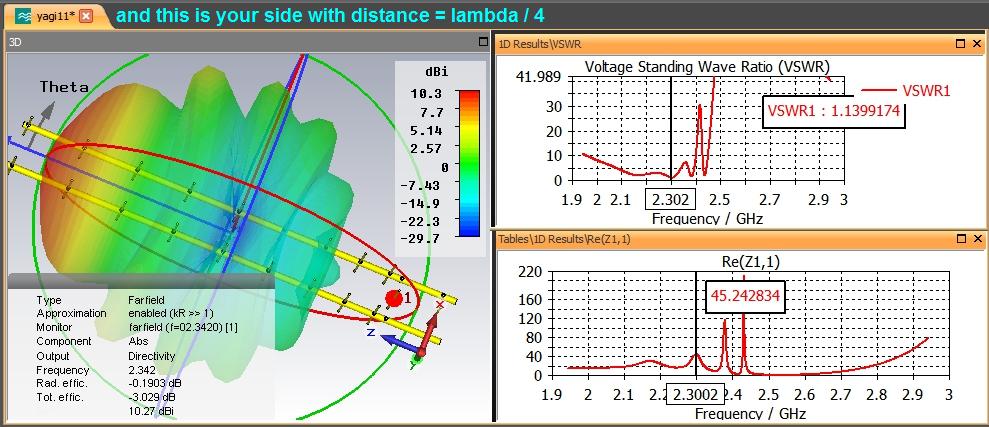

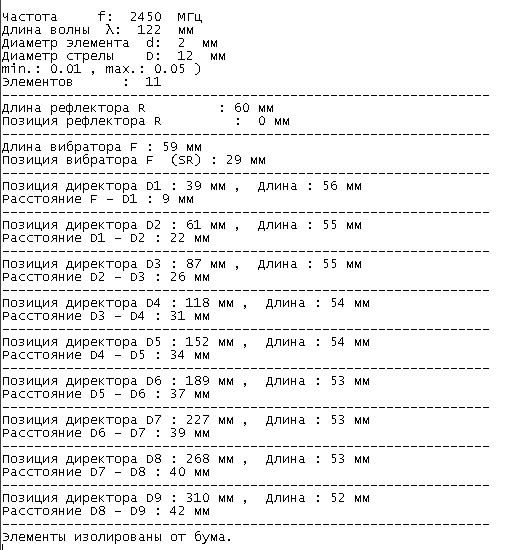

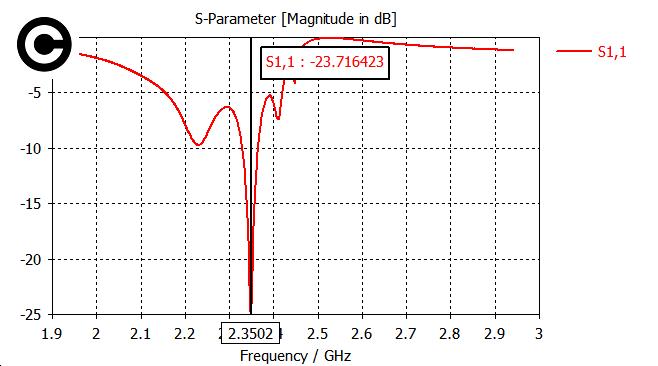

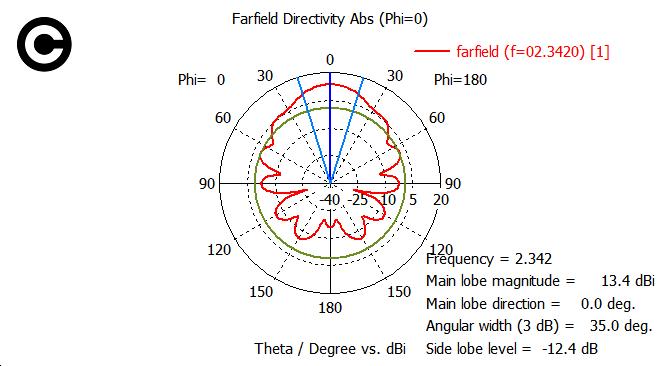

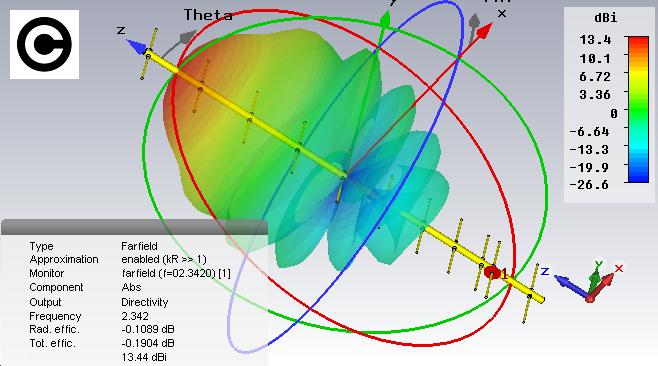

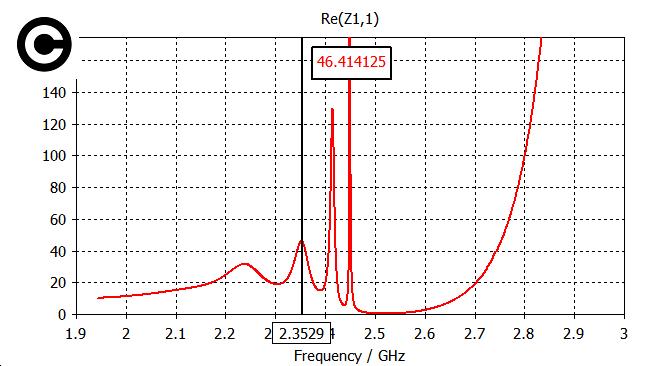

This is the reality yagi antenna suggested by you







Share this post

Link to post
Share on other sites

Posted

thanks 0_o not all ideas good, i see...not always bigger is better )) i am talking about amonut of yagis and impedance

Share this post

Link to post
Share on other sites
