antenna designer

microstrip antenna microstrip antenna with SMA connector

Started by antenna designer,

Posted

microstrip antenna fed by waveport directly and fed by SMA connector, the results are different, anyone knows the reason? thx

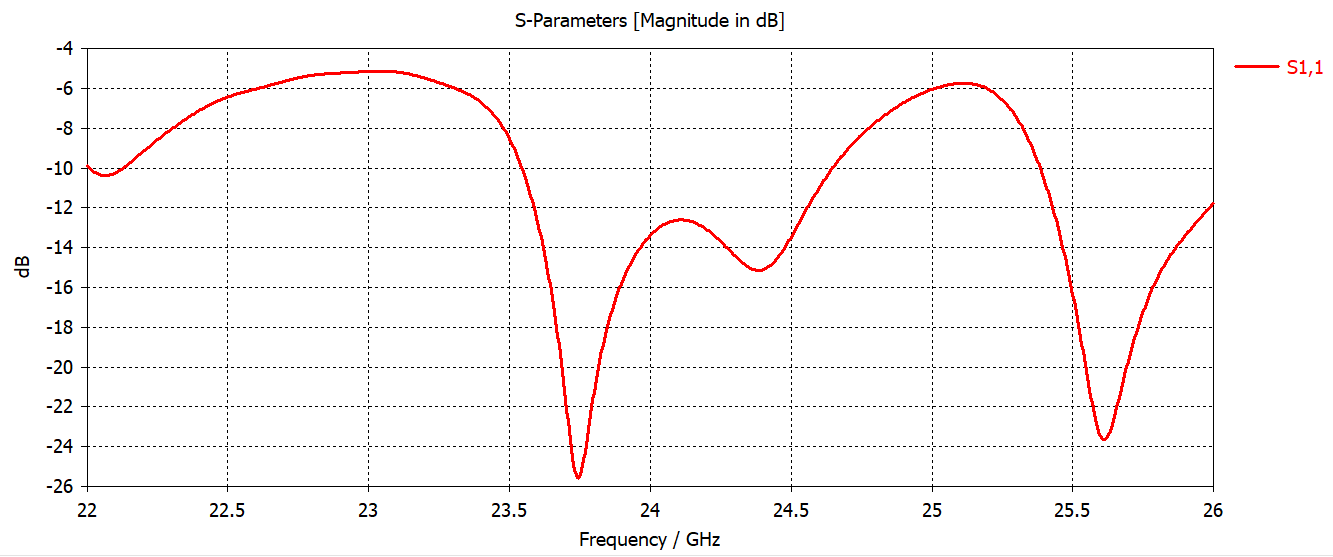

4x4 SMA S parameter.PNG

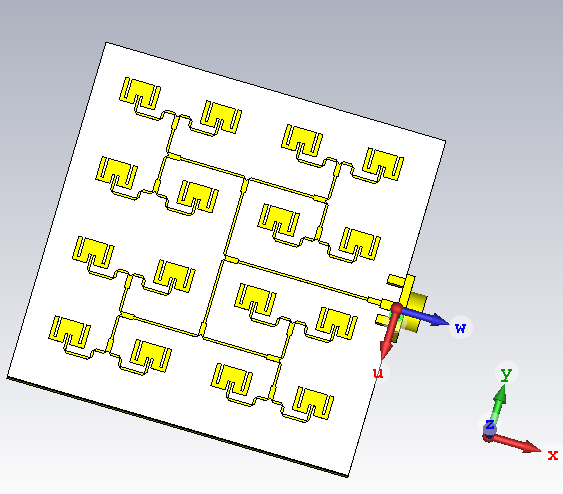

4x4 SMA.PNG

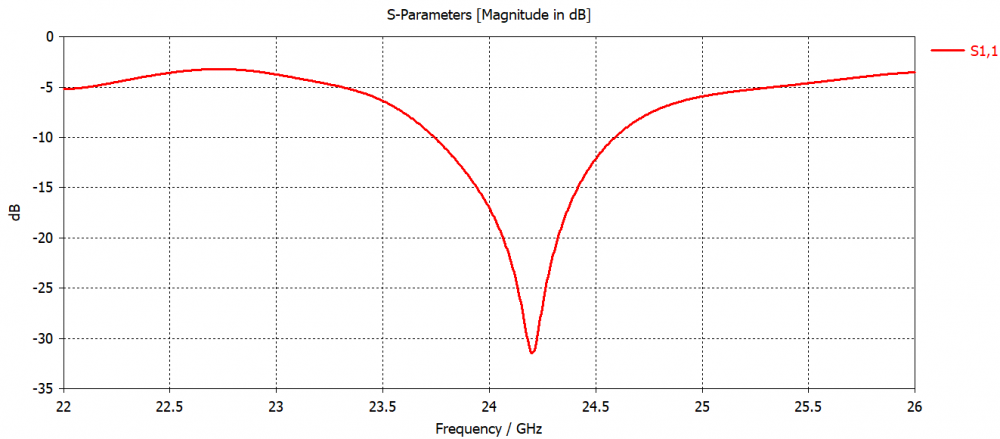

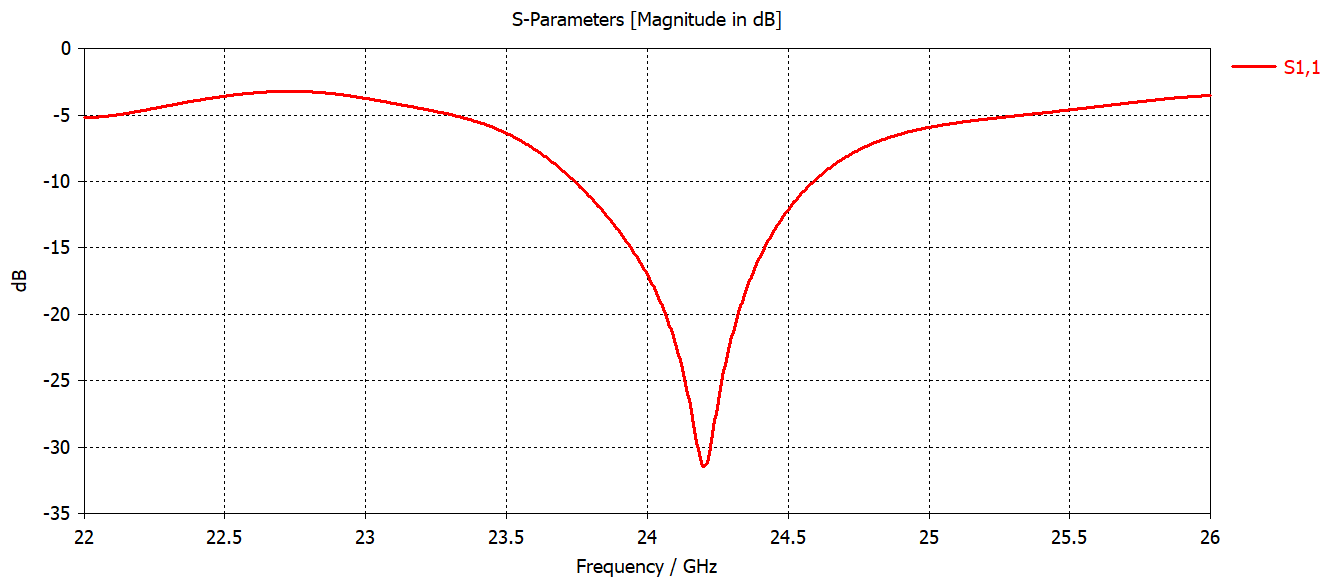

4x4 waveport S parameter.PNG

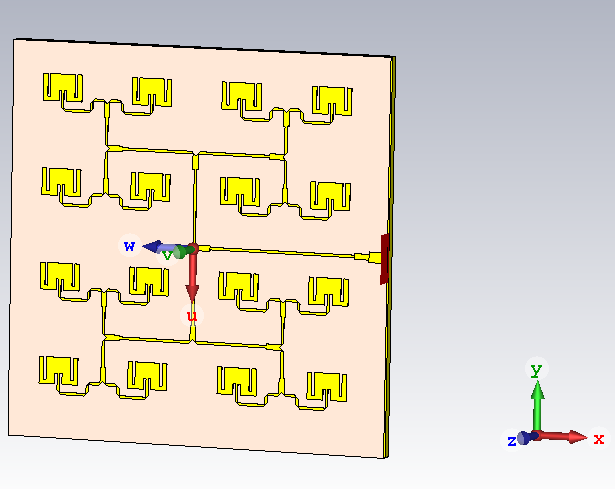

4x4 waveport.PNG

Share this post

Link to post
Share on other sites

Posted

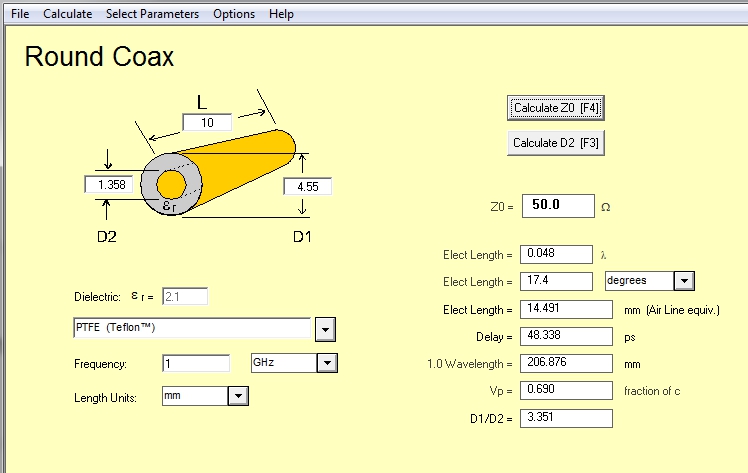

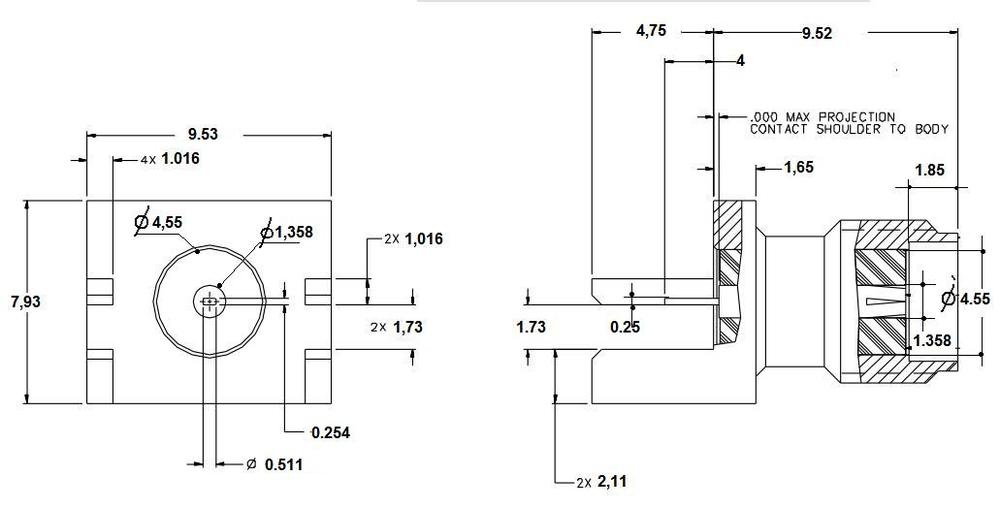

The SMA port has this configuration...???






and this is for simulation...



SMA mic.cst




1 person likes this

Share this post

Link to post
Share on other sites
