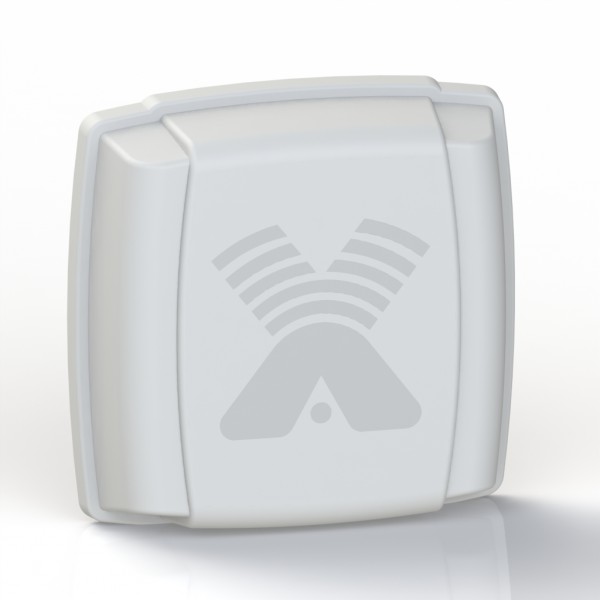

CIFRA-9 - external panel directional antenna

[Admin 2545]

Universal remote panel antenna for receiving and amplifying digital TV (DVB-T, DVB-T2) and analogue (UHF) channels. Connector type - F-female.



Electrical characteristics

Operating frequency range, MHz 470-790

Gain, dBi 7.5-9.5

The width of the days in H-plane, degrees 59÷91

Days width in E-plane, degrees 49-80

Input impedance, Ohm 75

SWR in the frequency range, not more 1.8

Polarization vertical/horizontal/inclined

Mechanical characteristics

Weight with mount, g 1840

Overall dimensions without mounting, m 0.3 x 0.3 x 0.12

Connector F-female

The mast diameter, mm 30÷52

The emitter material, the coating galvanized steel, plastic coating


Material of protective box Polycarbonate+ABS

Operating temperature range, gr. Celsius -40...+60



[Admin 2545]

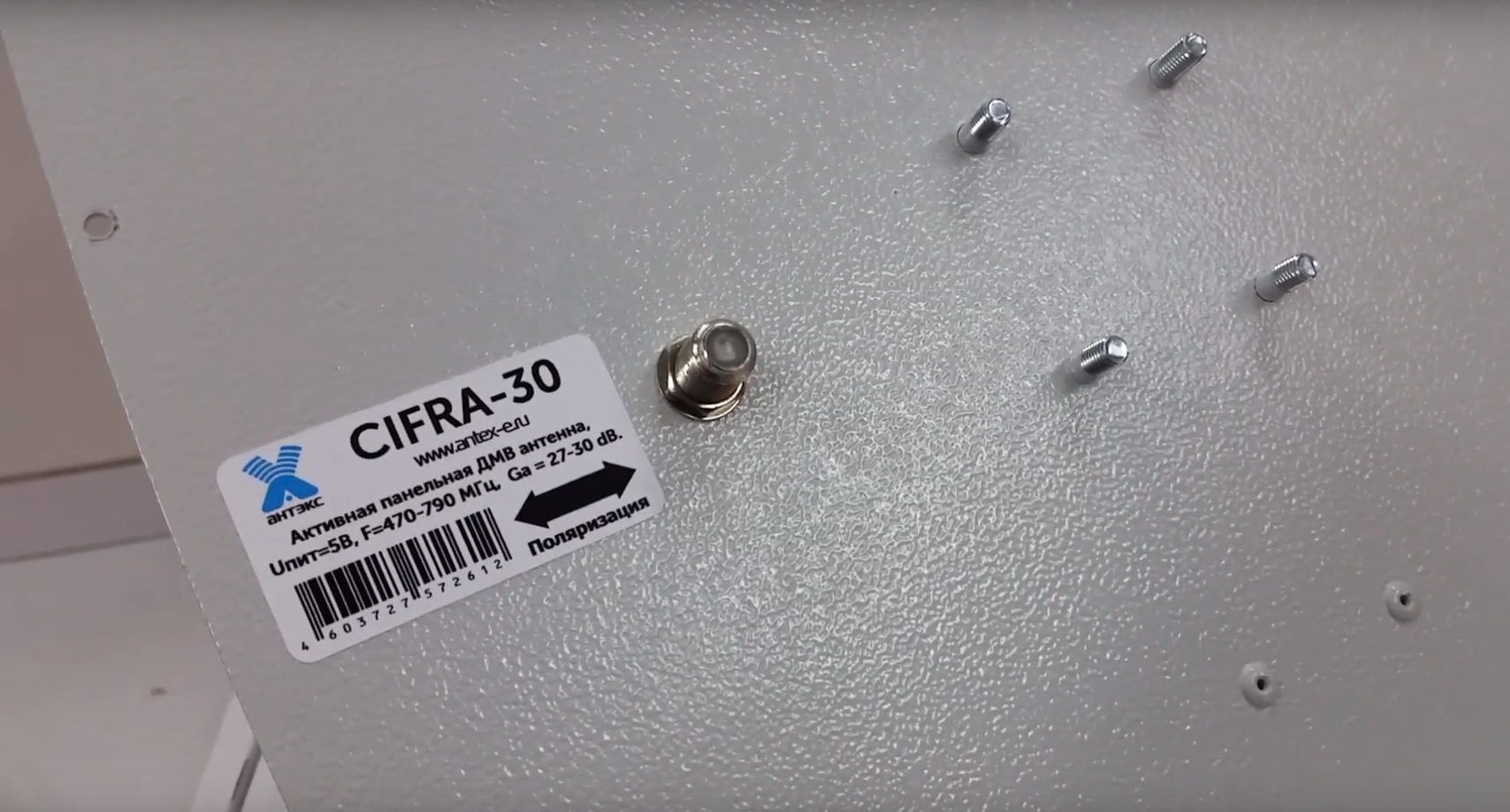

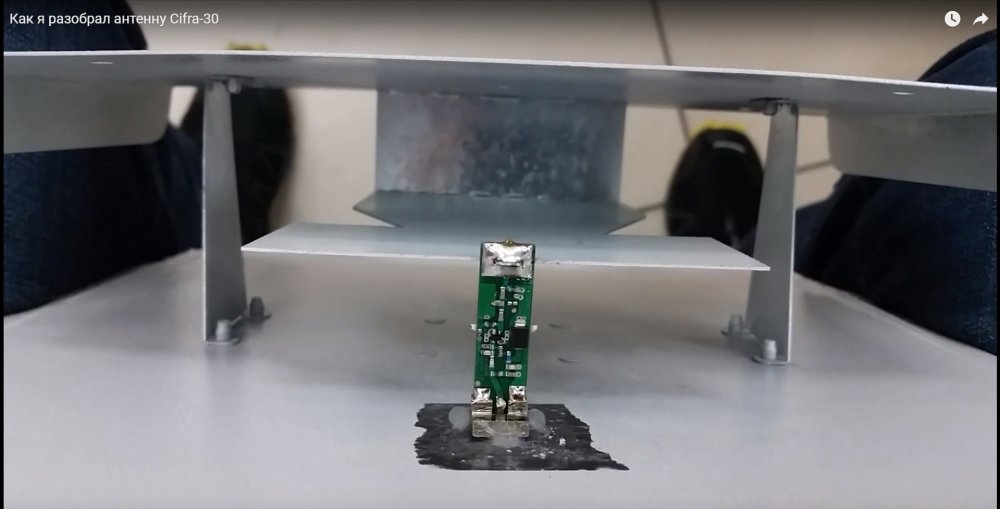

Antenna CIFRA-30 with built-in amplifier is used for receiving and strengthening of TV signals with DVB-T, DVB-T2 and analog TV UHF band. The type of the antenna-resonator. Recommended for use at distances up to 20-30 km from a TV repeater.

The antenna gain, dBi 7.5-9.5

Gain built-in amplifier, dB19÷22

[aurel 22]

What kind of amplifier is this ?

If is used BFG65 as main transistor then maybe worth something ..

but if are used anything else then ,,,is so so

[Admin 2545]

 Heart of the antenna is low noise digital amplifier, high-frequency chip Kzt67. Philips c gain 22 dB.

[vova.gumerov 23]

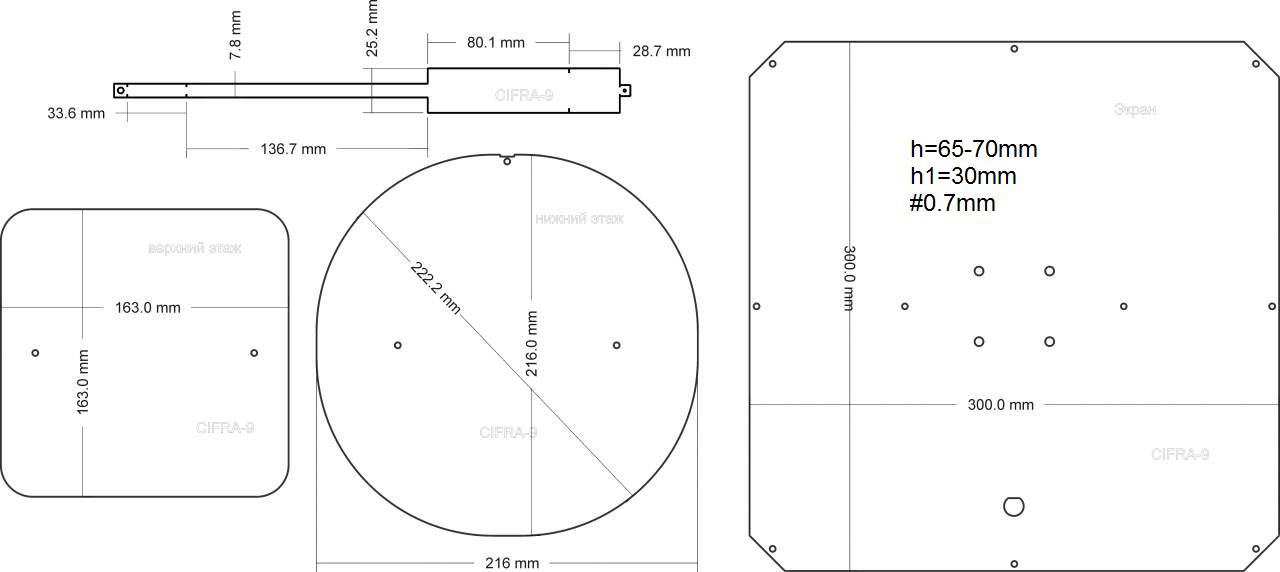

I greet you admin !!!! I want to talk about the antenna Cifra-9. You can try to do, but we need the exact dimensions!? I saw video numbers 9 but without an amplifier, an interesting thing!

[Admin 2545]

Hello my friend, I do not have the dimensions of these antennas, but I will try to simulate something similar..!!!

You have the dimensions at this antenna...??

[ErickTem 0]

"option diversity" in /etc/config/networks - works only with Atheros chip ...

---
I found solution - "antsel.c" can control output antenna
Maybe someone have a build for openwrt?

[Admin 2545]

.,,,"antsel.c" is the source code of linux/drivers/net/wireless/broadcom/brcm80211...???

[Admin 2545]

CIFRA-9-external panel directional antenna with gain up to 9.5 dBi



Universal remote panel antenna for receiving and amplifying digital (DVB-T, DVB-T2) and analog (DMV) television. The connector type is F-female.

Electrical characteristics

Operating frequency range, MHz 470-790

Gain, dBi 7.5-9.5

Bottom width in the H-plane, deg 59÷91

Bottom width in the E-plane, deg 49-80

Input impedance, Ohms 75

SWR in the operating frequency range, max. 1.9

Polarisation vertical/horizontal/inclined

Mechanical characteristics

Weight with mounting, g 1840

Overall dimensions without mounting, m 0.3 x 0.3 x 0.12

Connector F-female

The diameter of the mast, mm 30÷52

The emitter material, plating galvanized steel, polymer coating

Material of the protective box Polycarbonate+ABS

Operating temperature range, centigrade -40...+60





[Admin 2545]

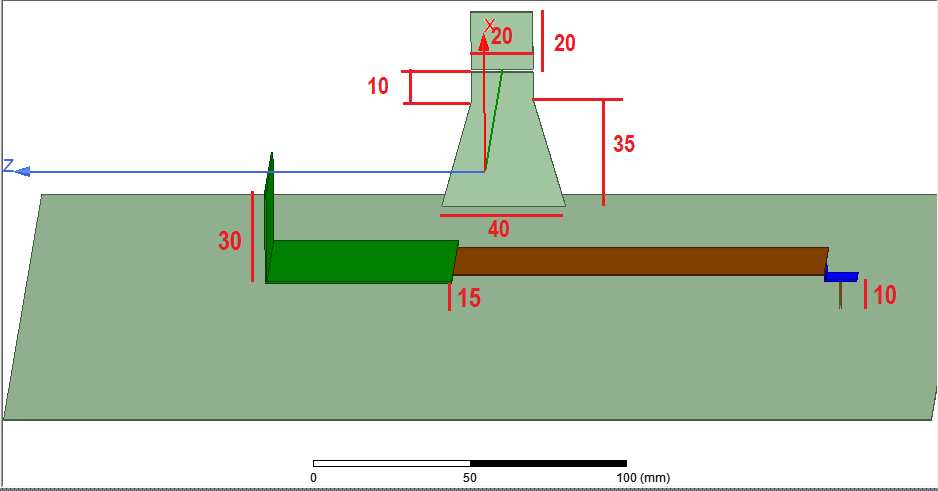

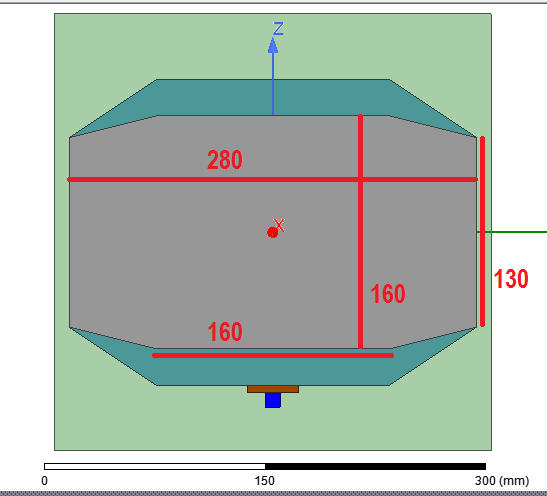

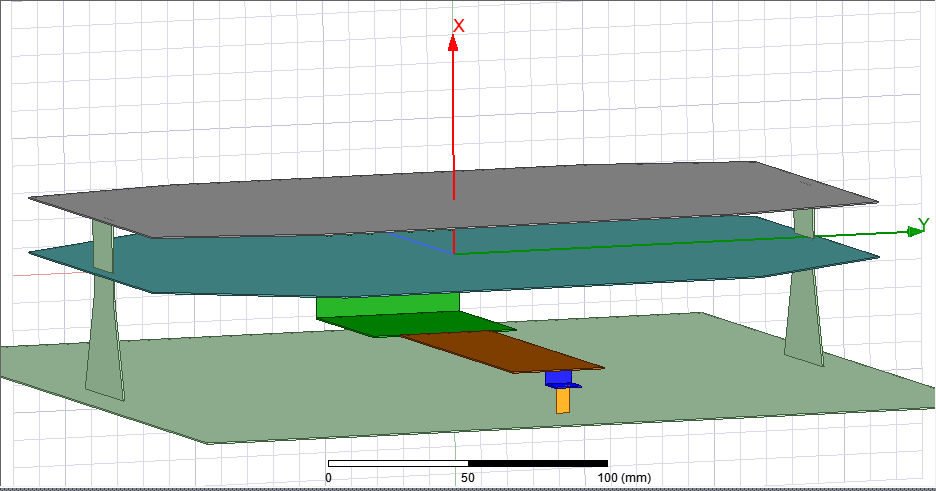

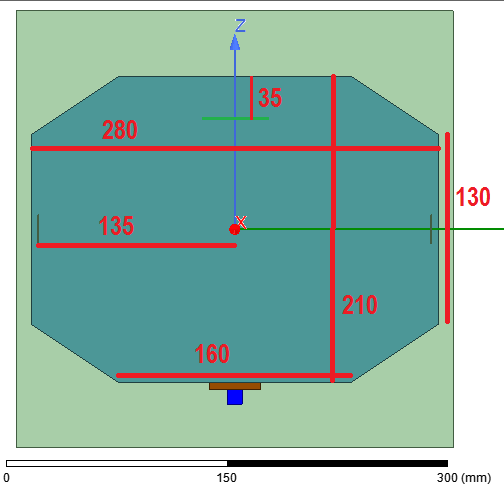

,,, user "com666", has developed a variant of this antenna (orthogonal) in a personal way by adding a directory...

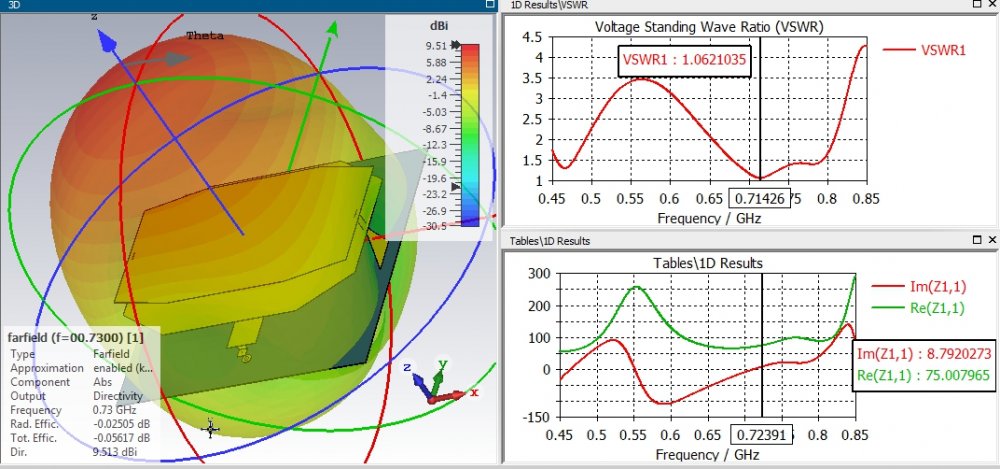

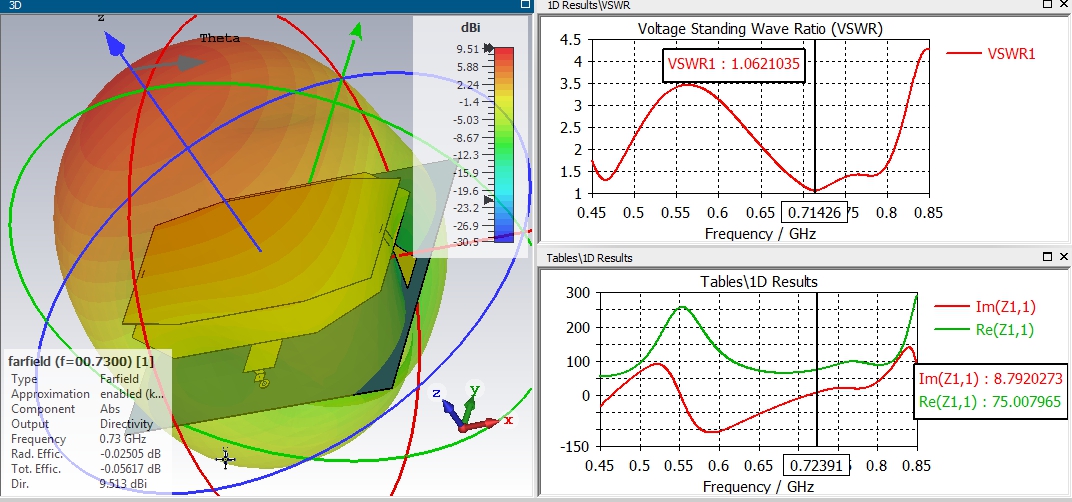

,,, and these are the results of the simulation .... !!!
