4 Rectangular Patches

Started by Admin, February 24, 2017

Posted February 24, 2017

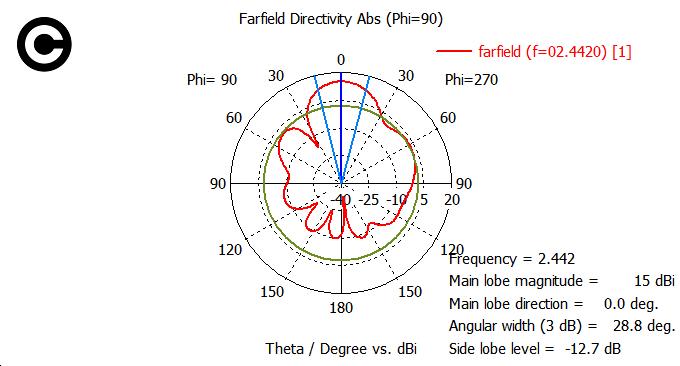

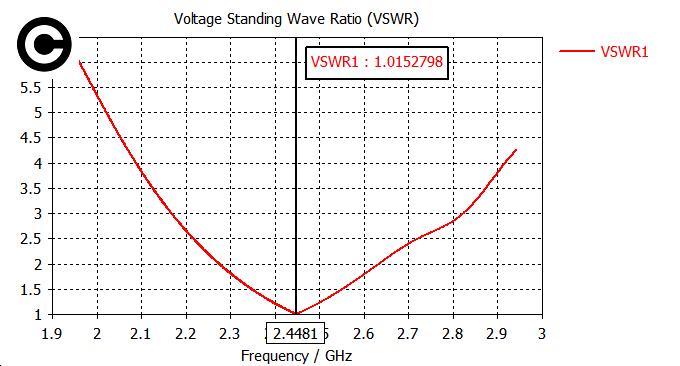

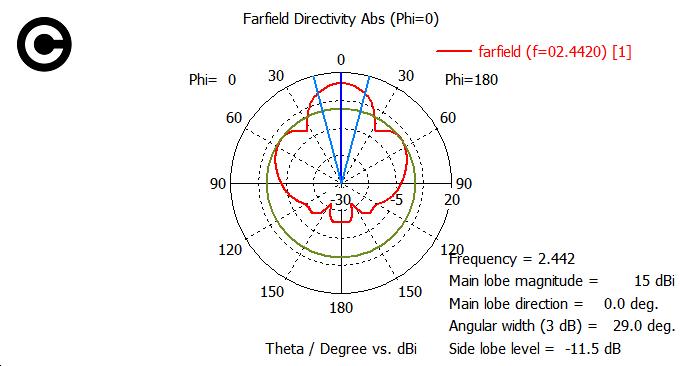

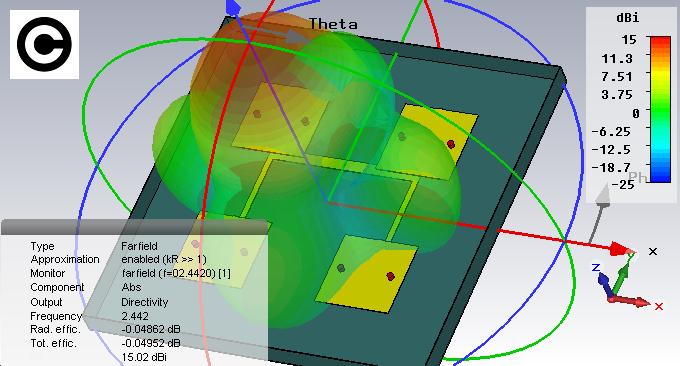

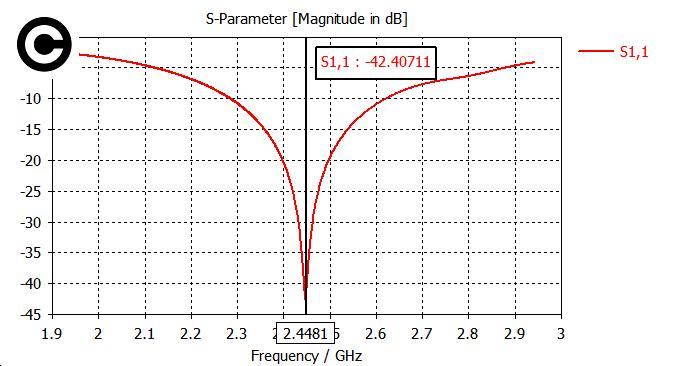

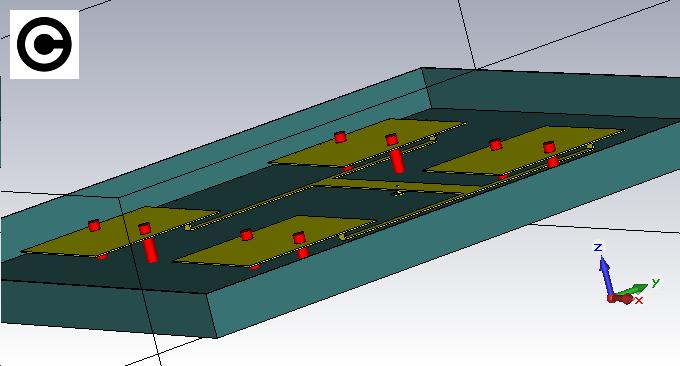

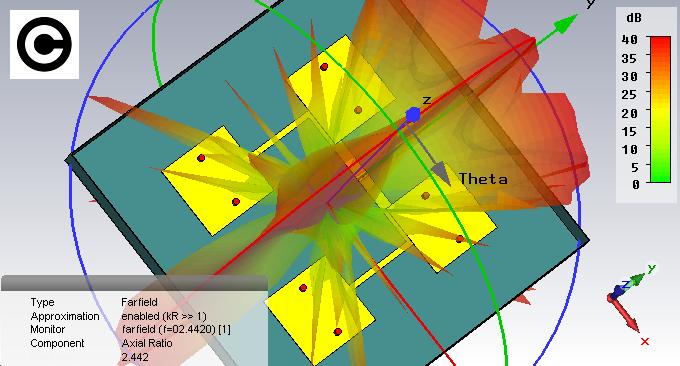

The design technique and the measured results of a planar linearly polarized subarray composed of four EMC patches are presented. A schematic layout of the four radiating elements is shown. The design and optimization of the feeding network were carried out by using a dedicated software package and experimental results in order to obtain a fine tuning of strip dimensions. Good performance in terms of gain and efficiency is shown.
