A Simple Patch Antenna

[pragata.my.id 25]

from the beginning of its production, mikrotik focus on network management, not in the wireless world,

https://betweenmeandlinux.wordpress.com/2017/03/30/mikrotik-vs-ubnt-sharing-pengalaman/

"Internal antenna mikrotik indeed several times discussed in forums because the design is less stable."

[Admin 2545]

so you want it?



[pragata.my.id 25]

 as I suspected.

the design is definitely bad.



3 hours ago, Admin said:



Edited December 15, 2017 by pragata.my.id

[Admin 2545]

,,,yes, the VSWR it"s bad...!!!!

,,, but isolation between ports and impedances is good !!! !!!

[acri 24]

On 12/15/2017 at 1:47 PM, Admin said:

,,,yes, the VSWR it"s bad...!!!!

,,, but isolation between ports and impedances is good !!! !!!

do you think it is worth using or not?

[Admin 2545]

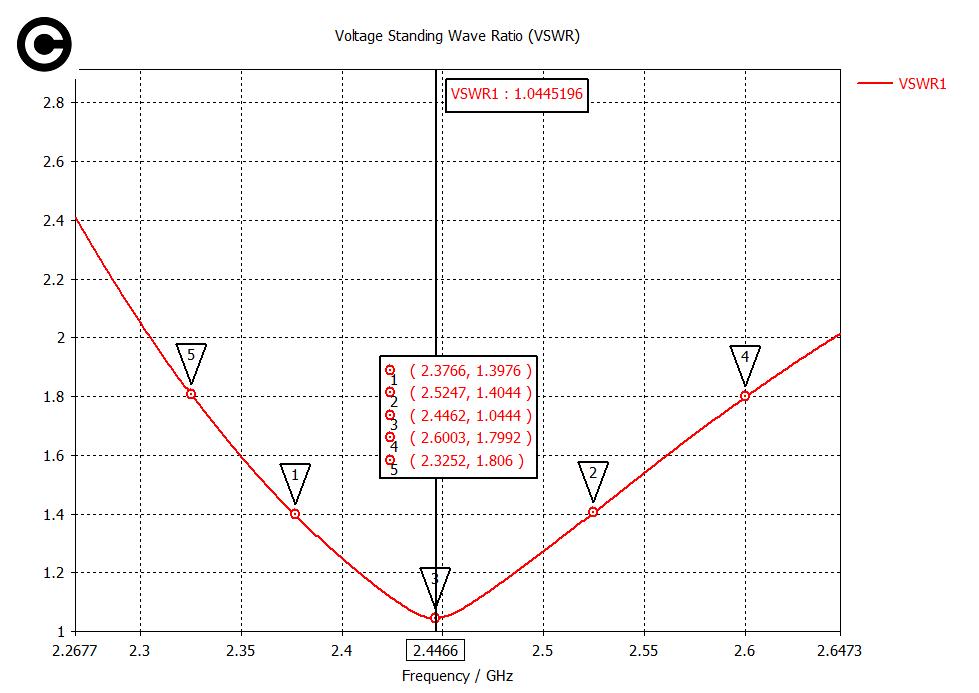

the antenna geometry must be chosen with vswr <1.5

[acri 24]

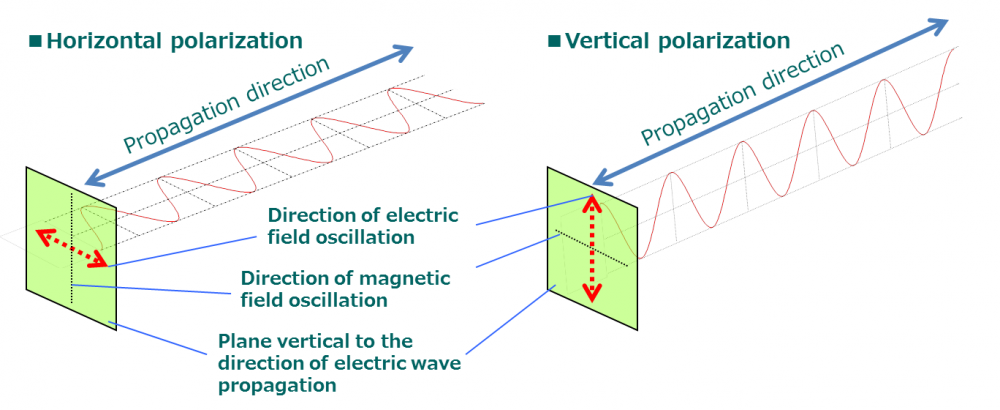

what is polarization?
vertical or horisontal?

[Admin 2545]

what do you say it is ...?

[pragata.my.id 25]





On 12/14/2017 at 11:45 PM, Admin said:



[Admin 2545]

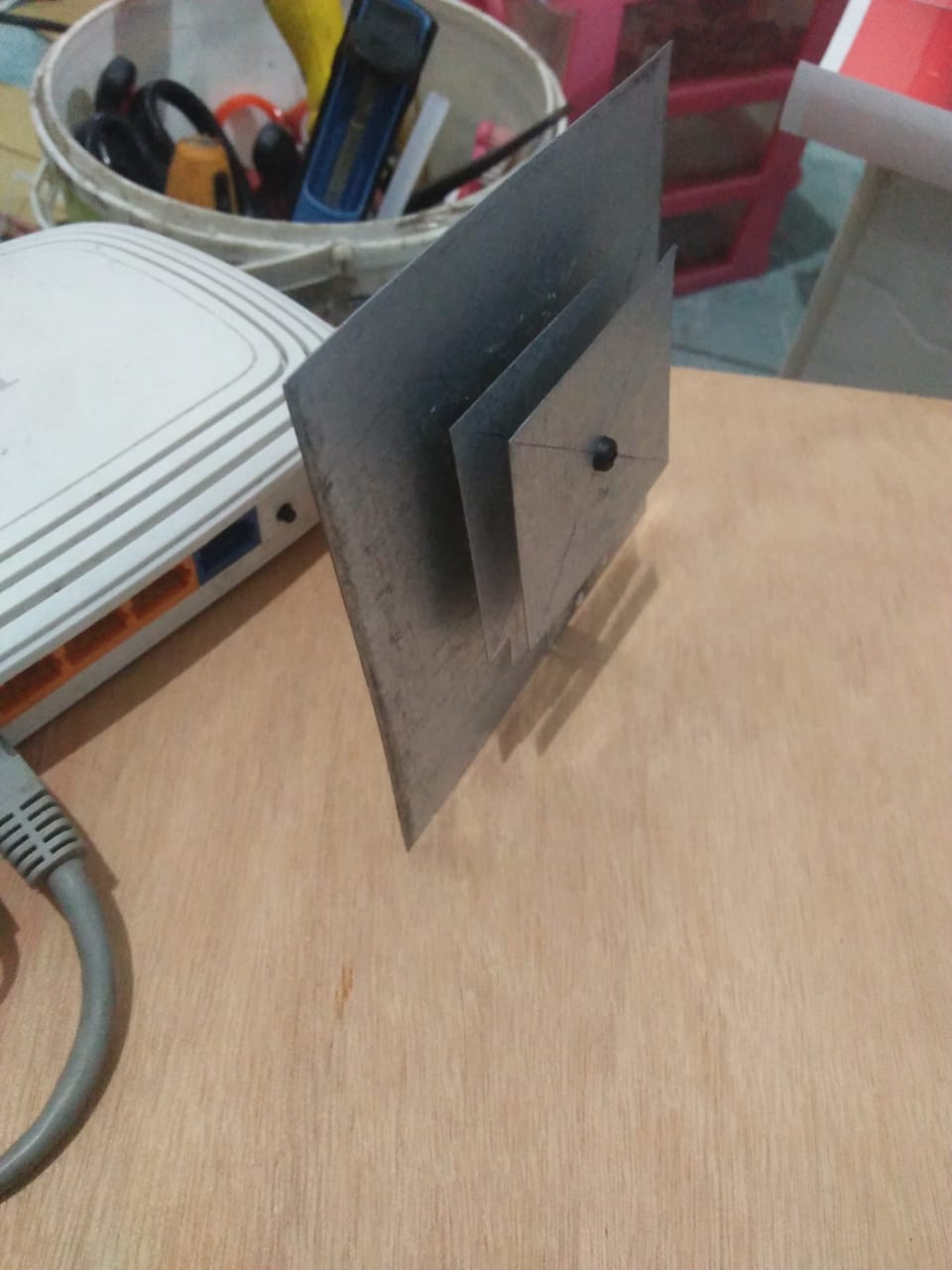

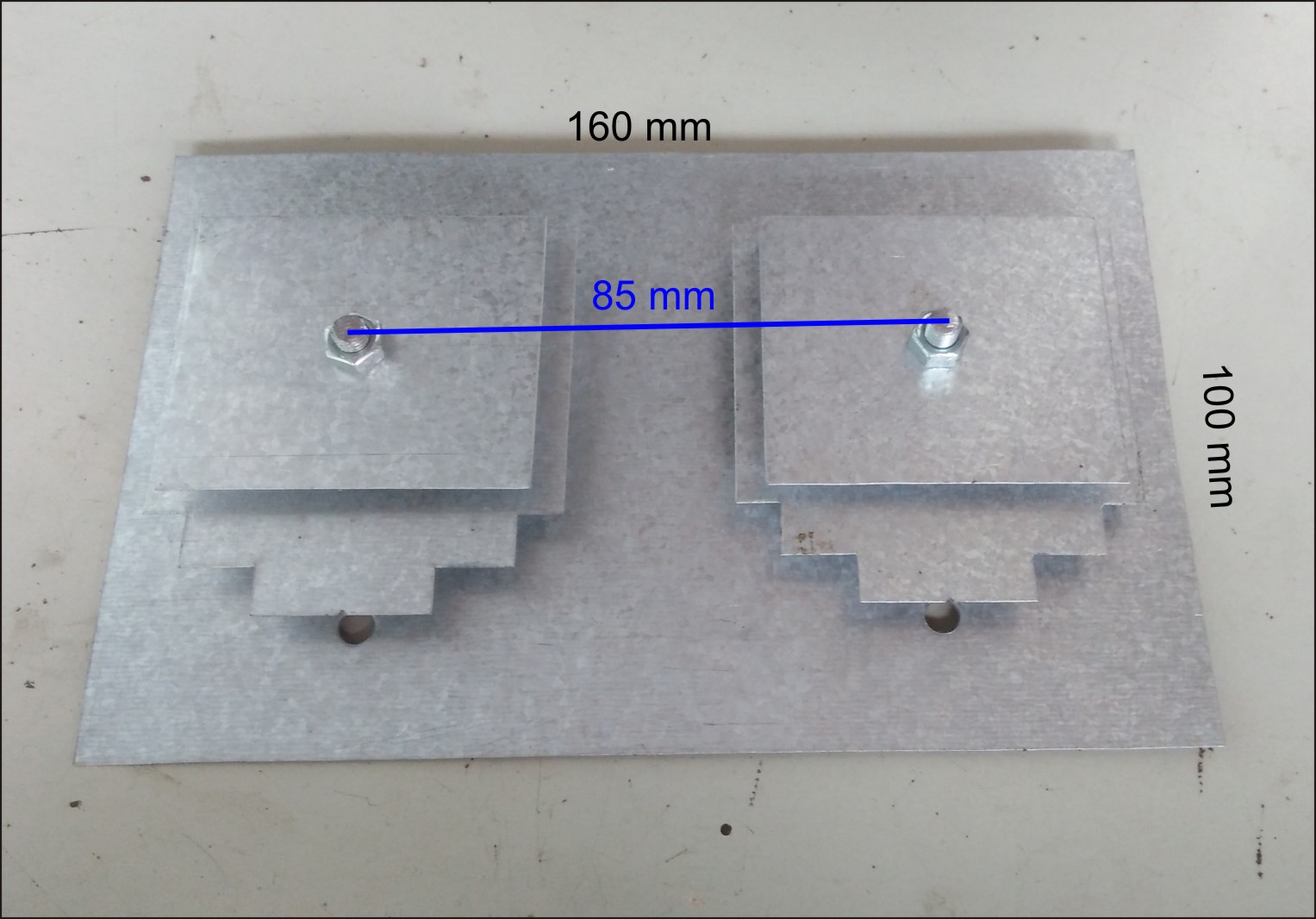

This patch antenna are cheap in cost, having low profile, and easy to fabricate. Patch antenna have three parts−patch, director and ground.for which it covers the entire frequency range for 2.4GHz

[bejonet 58]

good,,, is very good.. how about beamwidth for this antenna

[Admin 2545]

,,, beamwidth=2412-2484MHz

[bejonet 58]

  no, i mean beamwidth degree and what polarization for this antenna

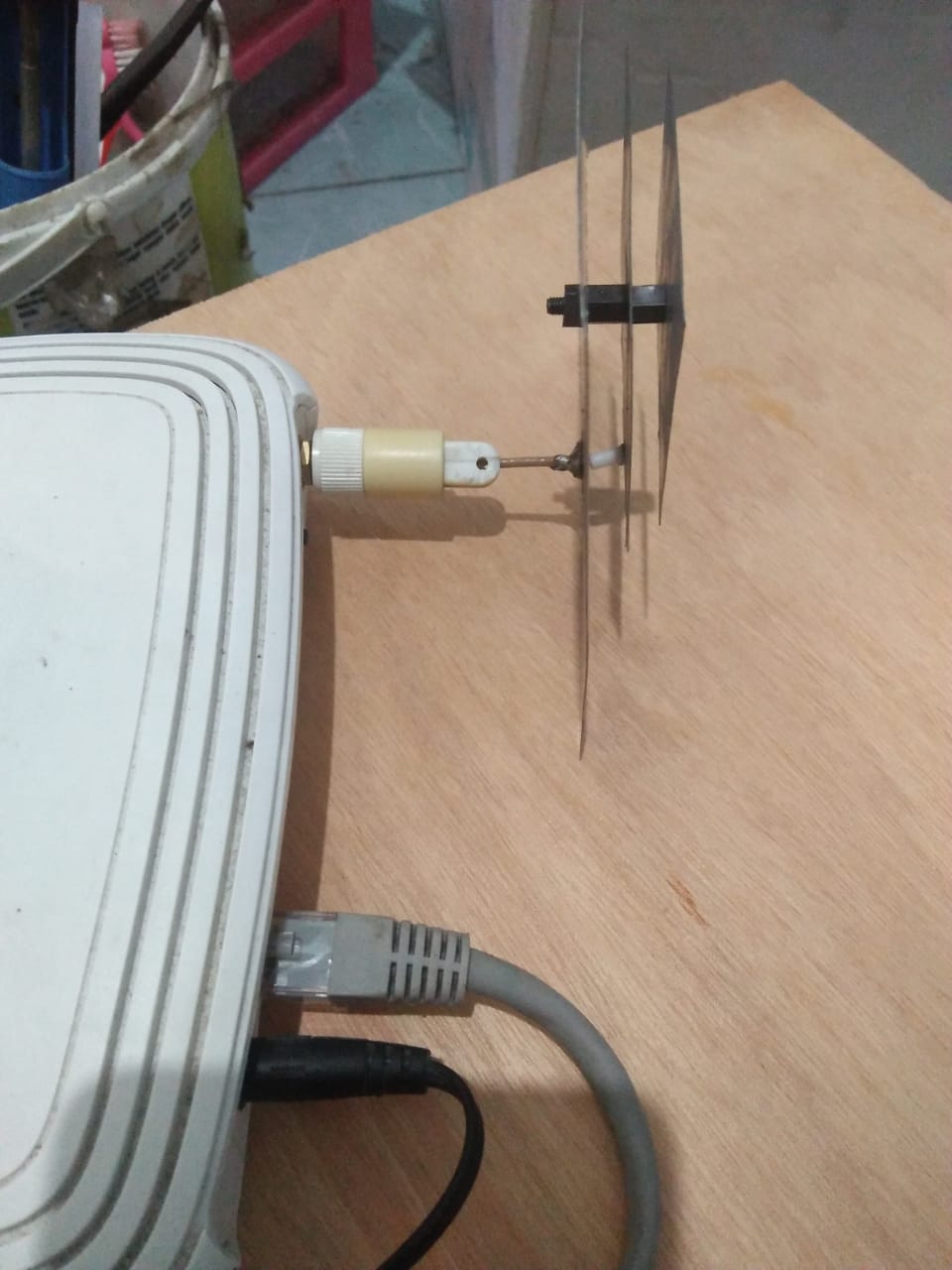

i change plastic bolt with metal bolt, it can increase the signal, good...

[Admin 2545]

,,,horizontal polarization...!!!
,,,it's good that you changed the insulating spacers...!!!

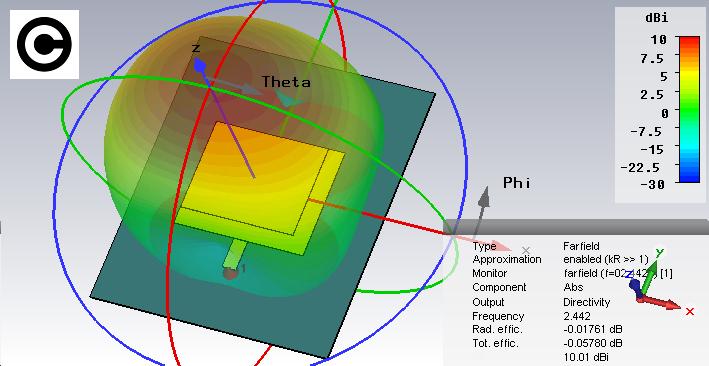

,,,I will soon present beamwidth degree...!!!

[bejonet 58]

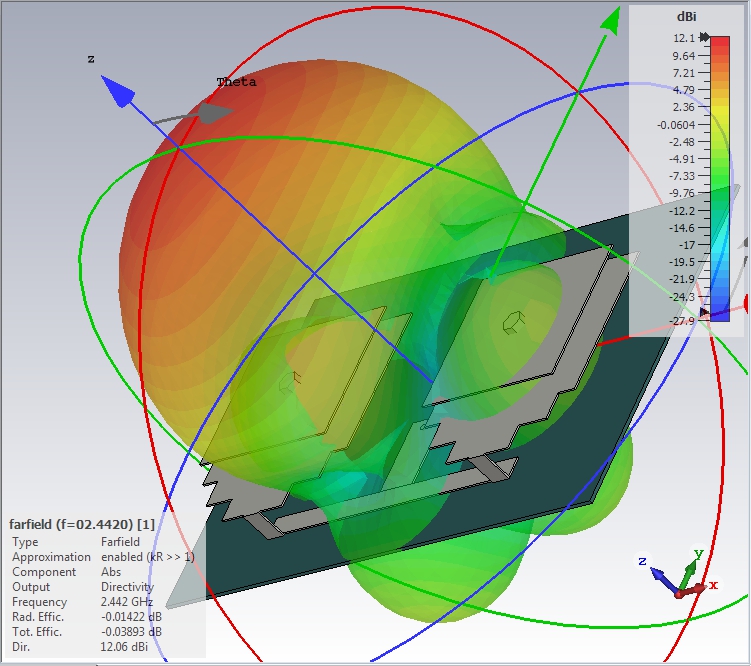

with 2 patch??... it is possible??

Edited February 27, 2019 by bejonet

[Admin 2545]

"Yes, it can, but a simulation needs to be done .with an impedance adjustment line..!!!

[bejonet 58]

ok,, waiting for simulation please,,,, i can not do it because not have in my old computer and not know how to working with simulation program,,



[Admin 2545]

,,,what kind of computer do you have...???

,,,if you want I can teach you how to work with the antenna simulation program...!!!

[bejonet 58]

yes,, i want to learn how to work with antenna simulation program, please,,,

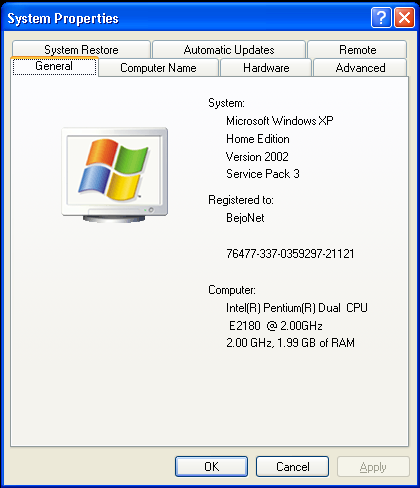

but this is my computer...

[Admin 2545]

"Yes, the computer is pretty good ... !!!
"why do not you try to look at this forum about the CST program...!!!

[Admin 2545]

,,, something like that ... !?



[bejonet 58]

how about this ?

[Admin 2545]

Yes, only if you can do this...



[bejonet 58]

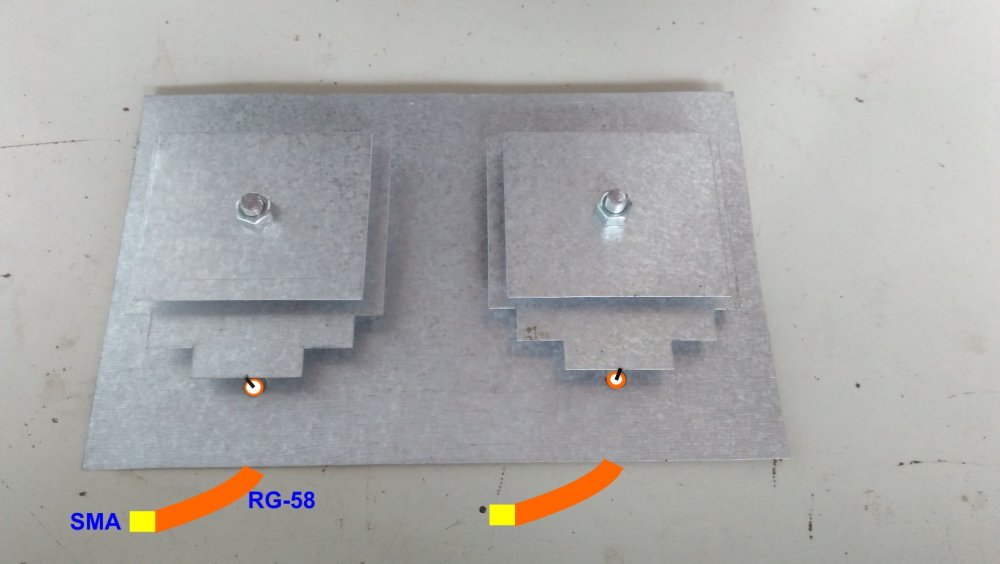

which one i must solder and not to soldered, can you give more detail

[bejonet 58]

Yes, i found stacking with coax cable on qsl.net
