A Simple Patch Antenna

[Admin 2545]

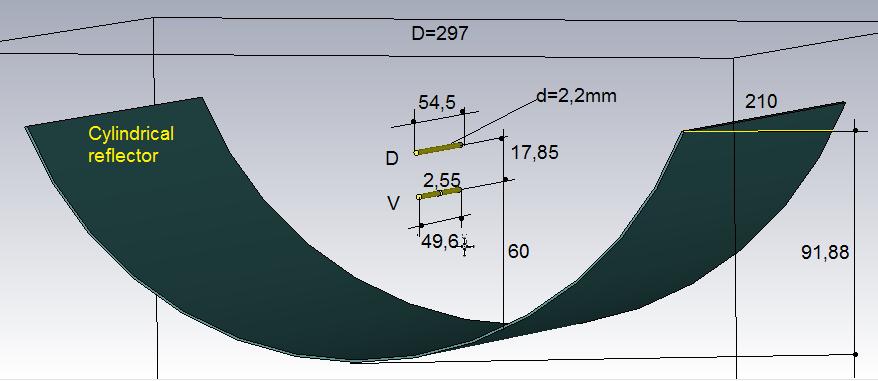

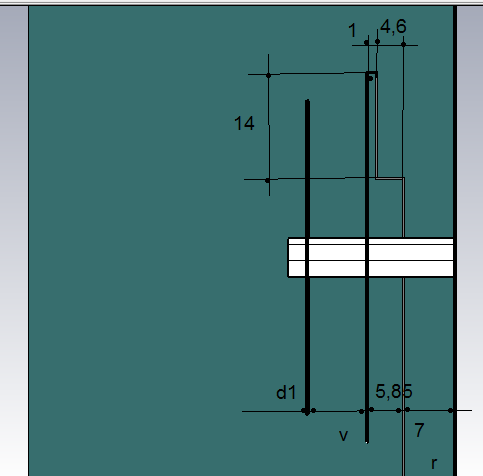

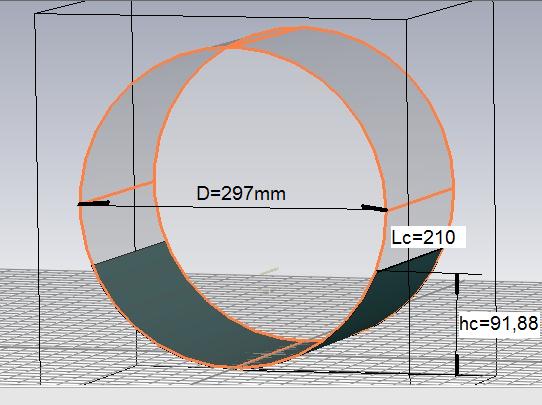

you can make a sub-reflector with these  dimensions(approx)...

[R0bb0 0]

Yes, this makes good sense but the container cannot be that big so I will stick with your single feed design, thankyou for you great advice

[R0bb0 0]

On 16/04/2019 at 9:55 PM, Admin said:

How well do you think this compares against your Dual Band Cantenna?

I only just found your cantenna design and I love the fact that it does both frequencies.... and it's small!!!



[Admin 2545]

,,,, one is a waveguide the other is a patch antenna, they differ from each other ... !!!

[R0bb0 0]

4 minutes ago, Admin said:

,,,, one is a waveguide the other is a patch antenna, they differ from each other ... !!!

Yes but performance is very similar and you have managed to get Dual frequency from the cantenna



[Admin 2545]

DB Cantena needs to be optimized..!!!

[R0bb0 0]

I thought it already was

[erossutrisno 11]

I would try to combine it in a strange way, without any deep knowledge of antennas. I don't know if this model can be improved any more.

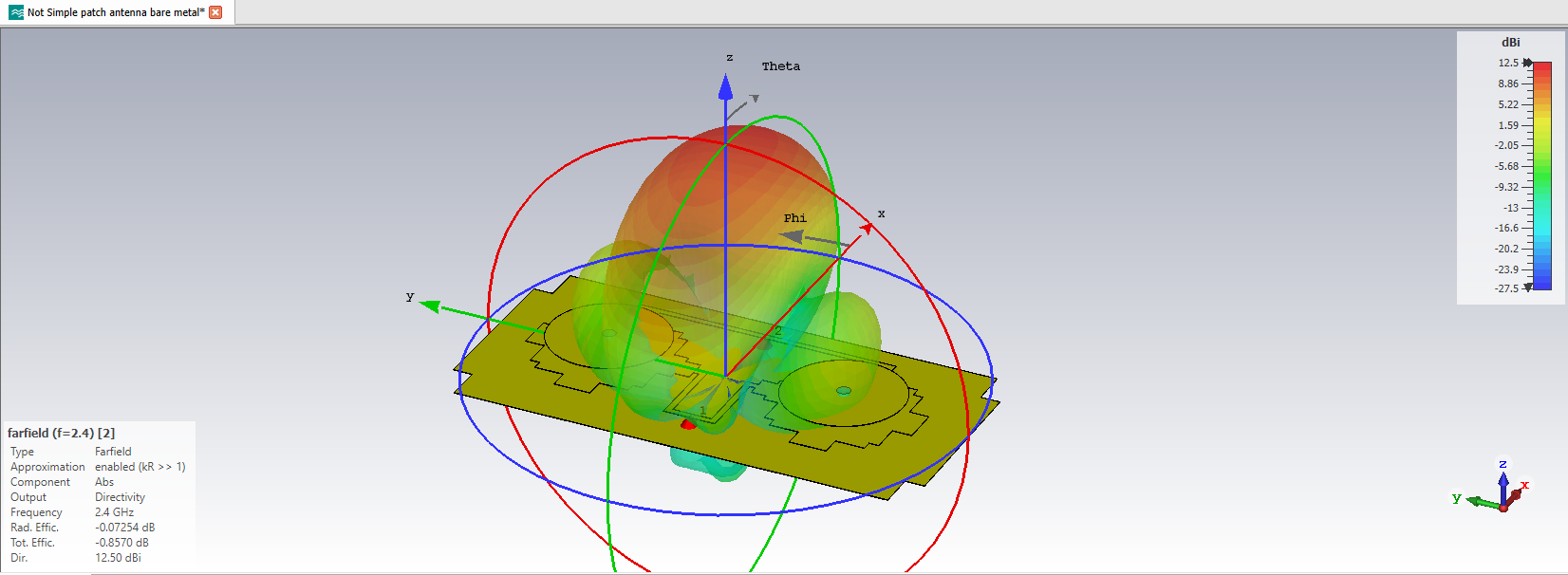

Not Simple patch antenna bare metal.cst

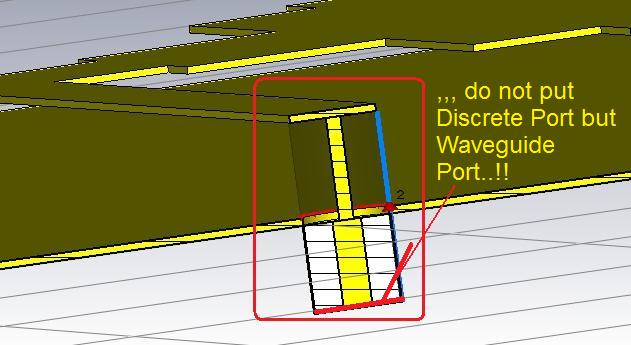

[Admin 2545]

[erossutrisno 11]

4 minutes ago, Admin said:

Aye aye, sir! thanks for the advise.

[Admin 2545]

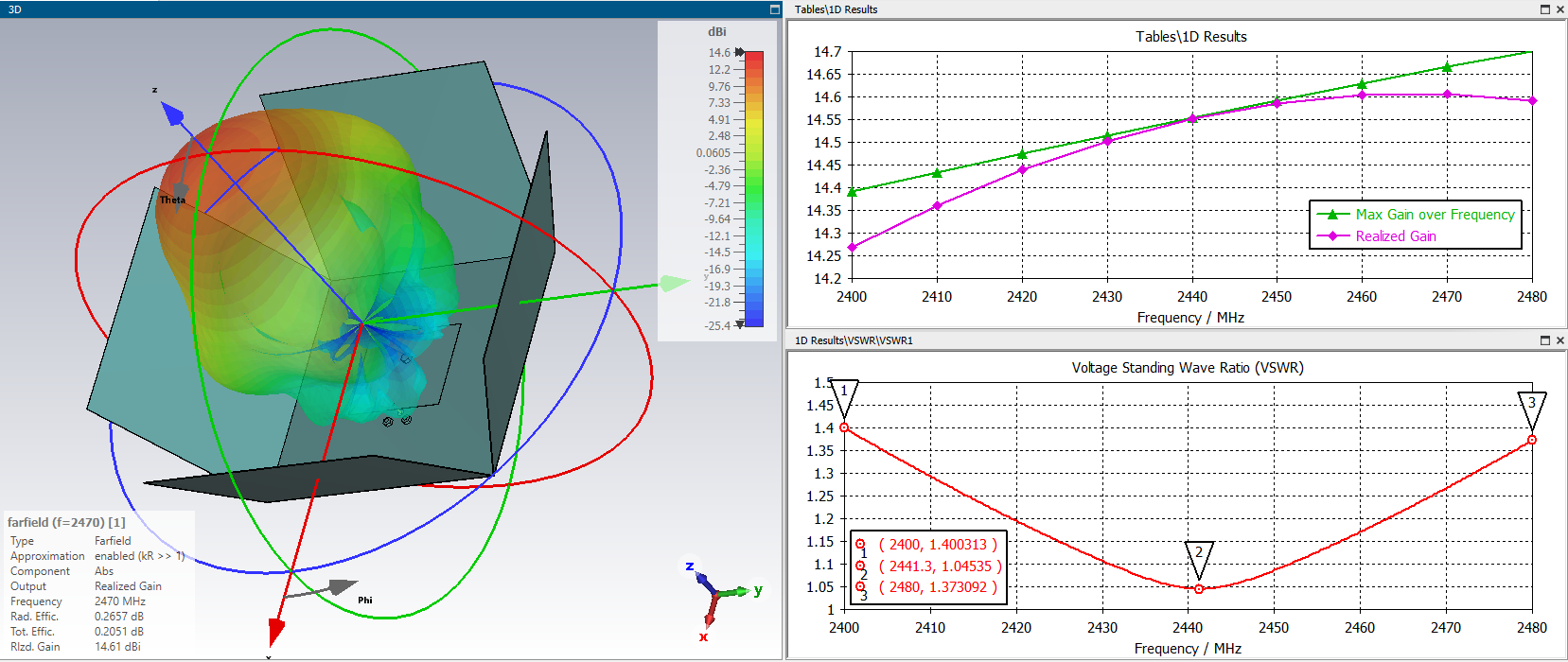

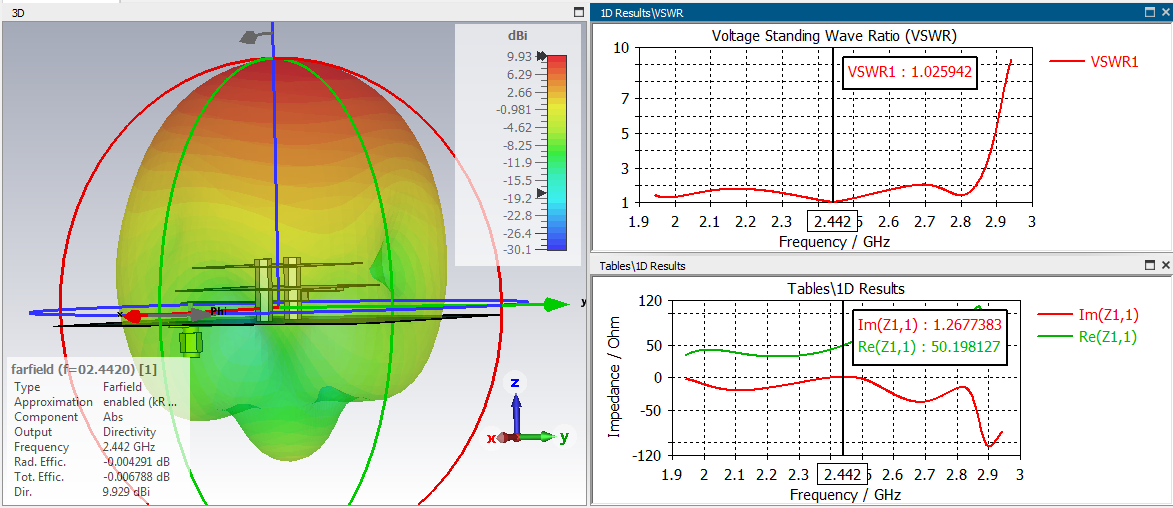

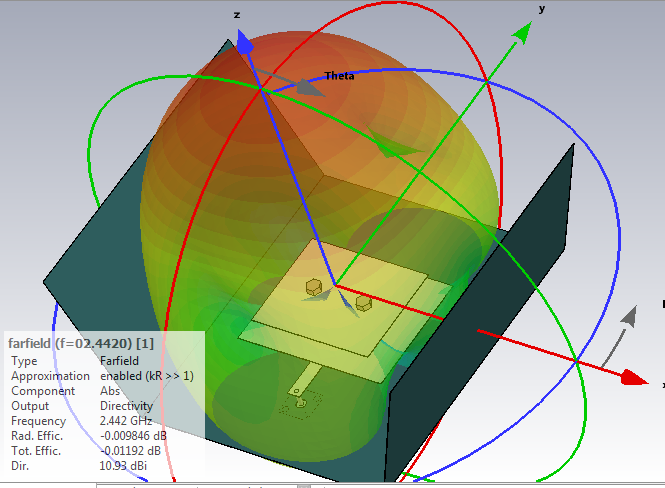

,,, modified version with bent reflector...



patch with bent line.cst

[Rio 0]

On 12/12/2017 at 1:43 PM, Admin said:

Pokoknya antena saya lebih bagus...!!!!

regards, admin, consul, I use tp link wr820n, 5volt power, less capture power wisp mode, if it spreads well, for example the antenna modif 1 to capture source / focus, what antenna model is the best, can strengthen the capture power of 1/2 bar to 3bar or 4 bar, plan to be interested in gun wifi antenna model, or something else, thank you

[Admin 2545]

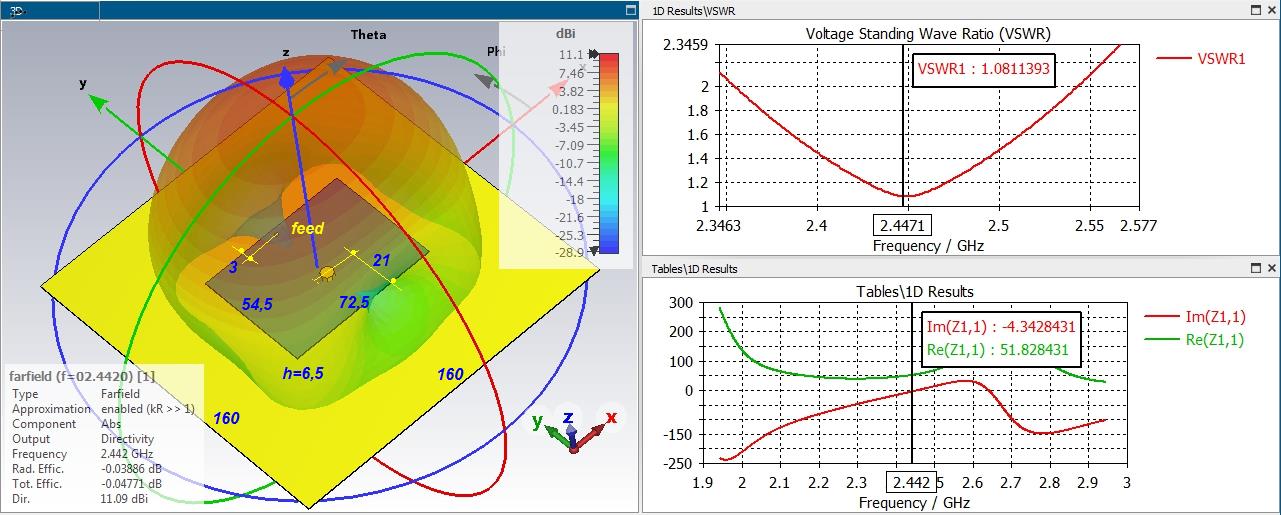

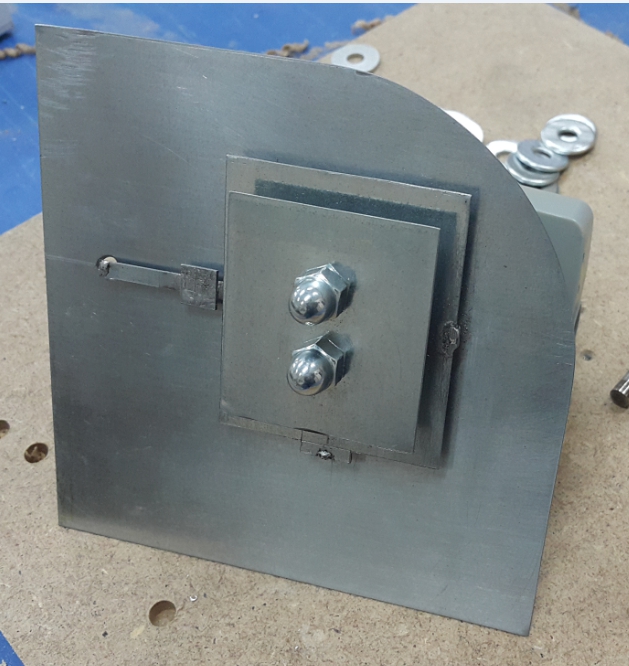

,,,a simple patch...

[Harry36 140]

[Admin 2545]

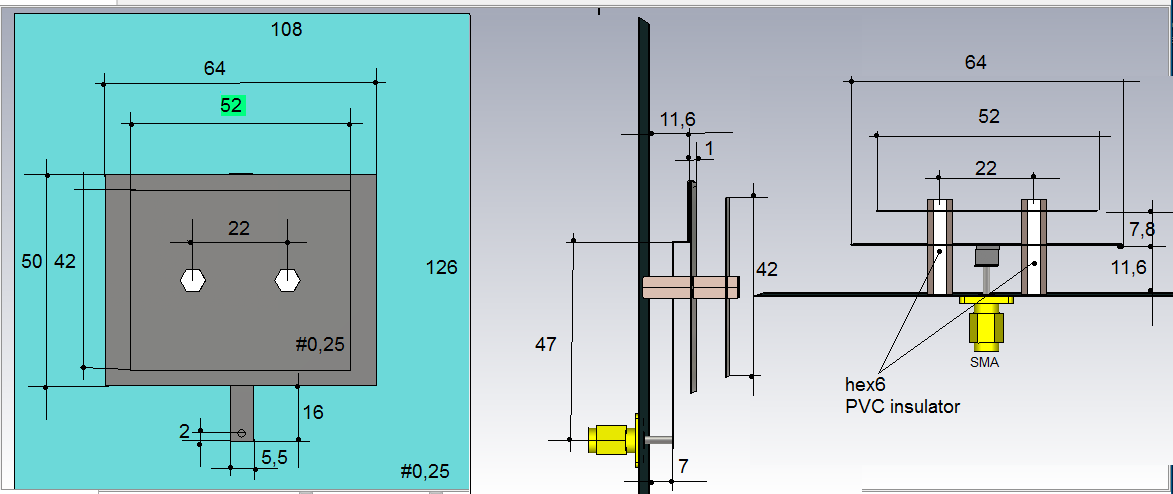

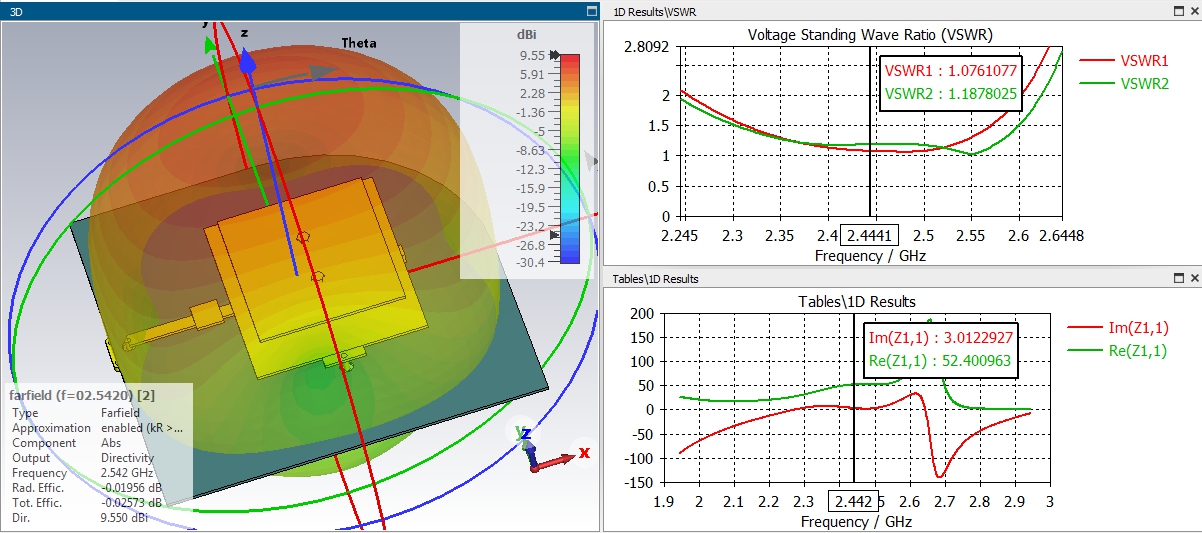

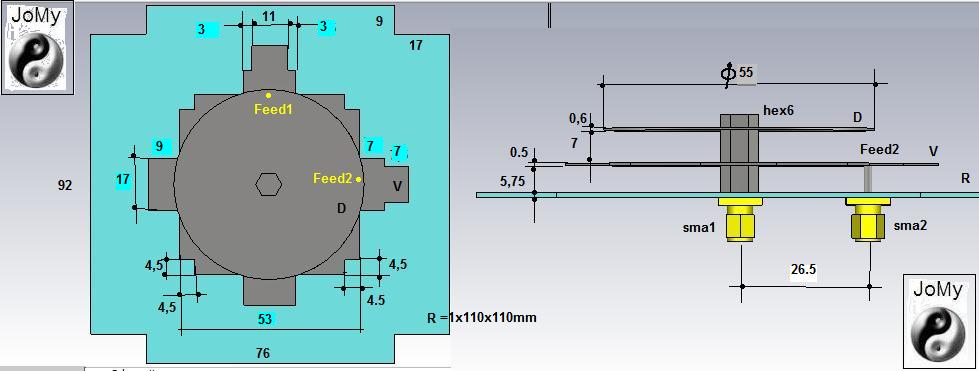

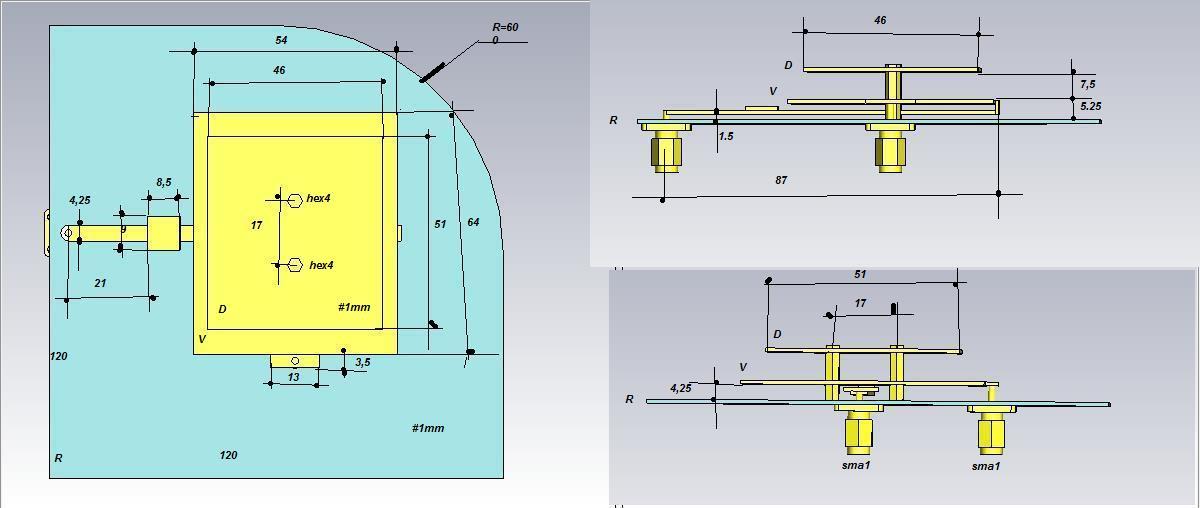

,,,another MiMo patch antenna model...

,,,TO WHOM IT MAY CONCERN...2,4ghz patch.cst

,,,sorry for the bad drawing...!!!

[Admin 2545]

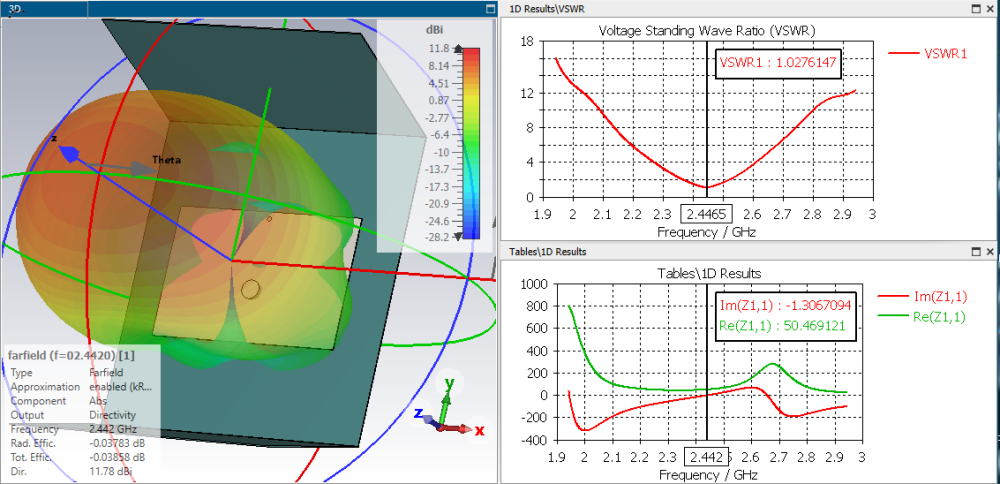

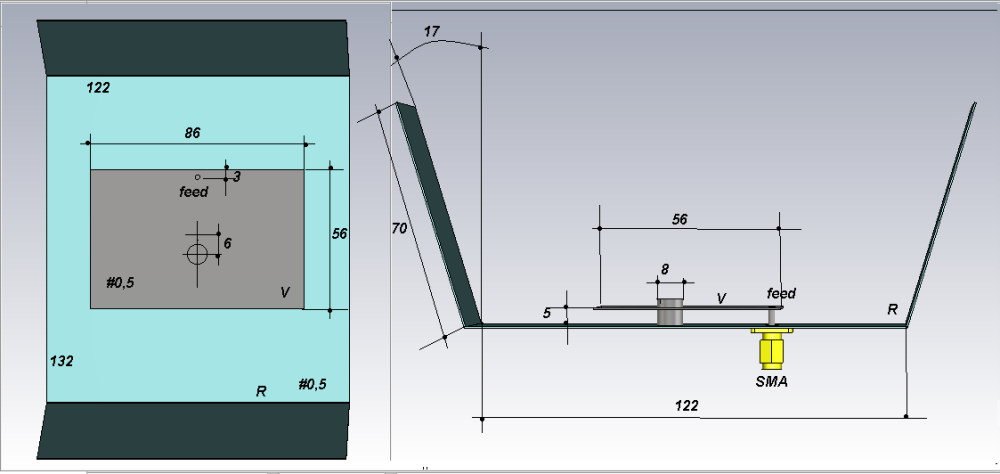

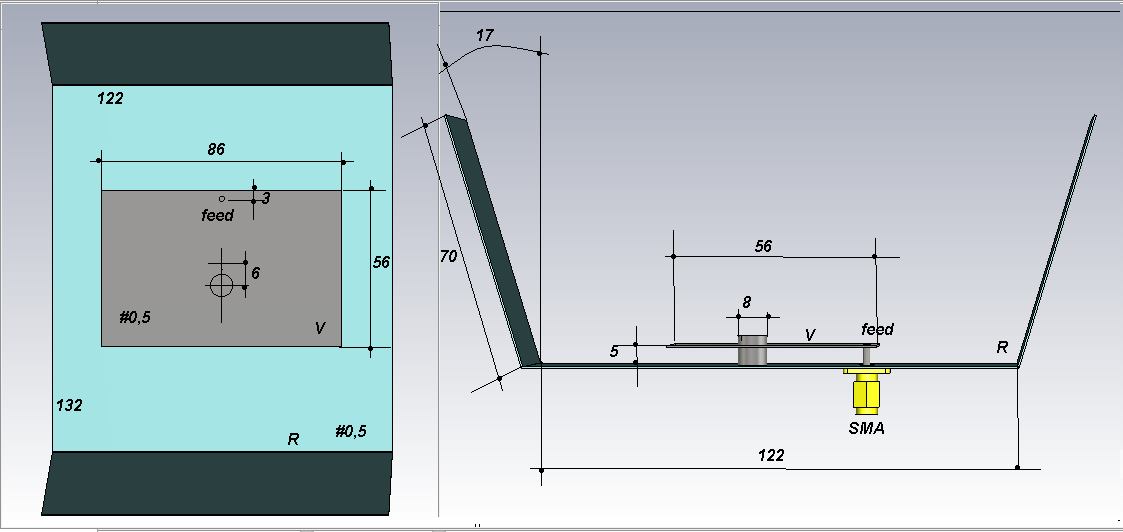

I took up the idea of a single patch with a rectangular reflector with inclined wings...
