UWB antenna

126 posts in this topic

Hello friends,

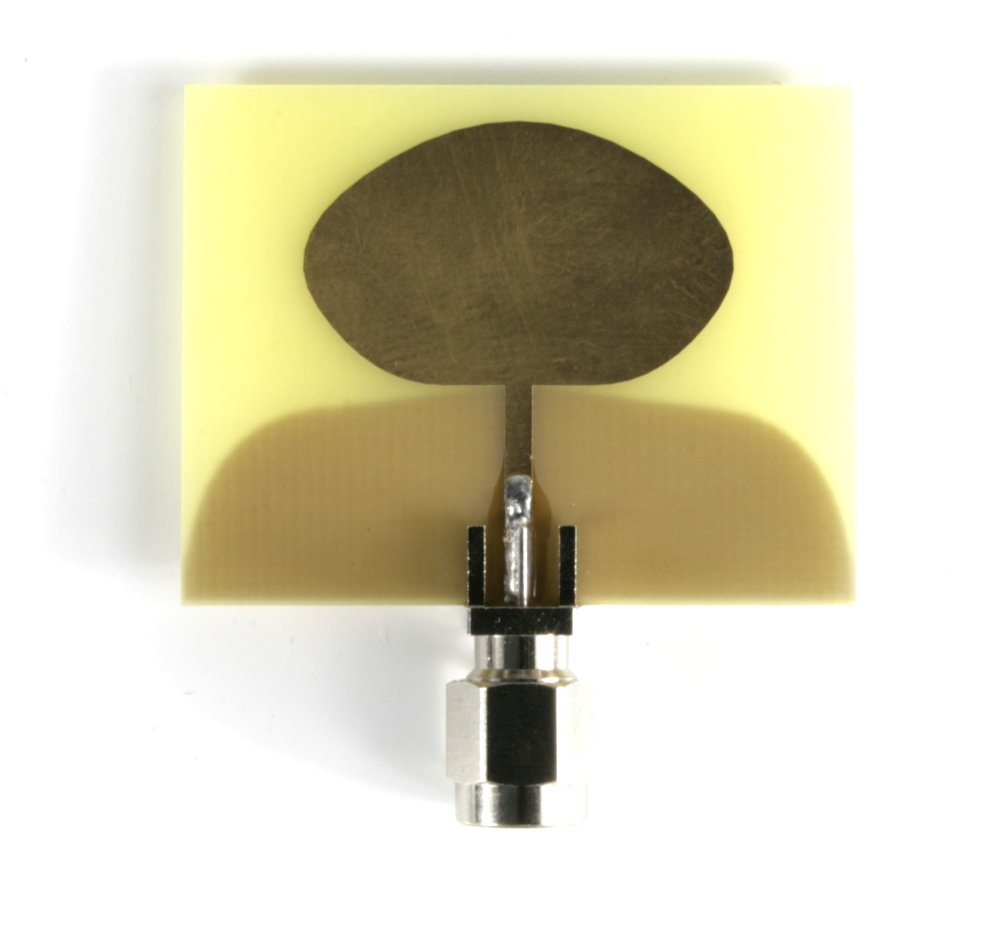

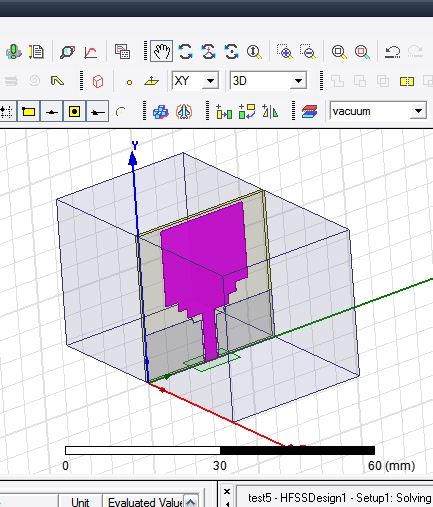

 I have designed a patch antenna shown in the attached file, I got the VSWR plot which is not identical to the one shown in the paper. How can I reproduce the exact graph in hfss. one more thing how can I plot the gain vs frequency plot given in the paper.



cao2011.pdf

test5.hfss

Share this post


Link to post
Share on other sites

Hi, thanks for ur reply.... in the gain vs frequency graph,  gain value is positive over the UWB, but in your post after 9 Ghz gain drops to negative value... I think in the paper they plotted peak gain vs frequency rather than total gain vs frequency.please correct me if i am wrong. Have you got the similar VSWR plot in the paper ?







. Untitled.png n

Share this post


Link to post
Share on other sites

even here also we are getting negative gain  around 9 to 11 GHz which is undesirable ...... can't we reproduce the exact results from base paper ?

Share this post


Link to post
Share on other sites

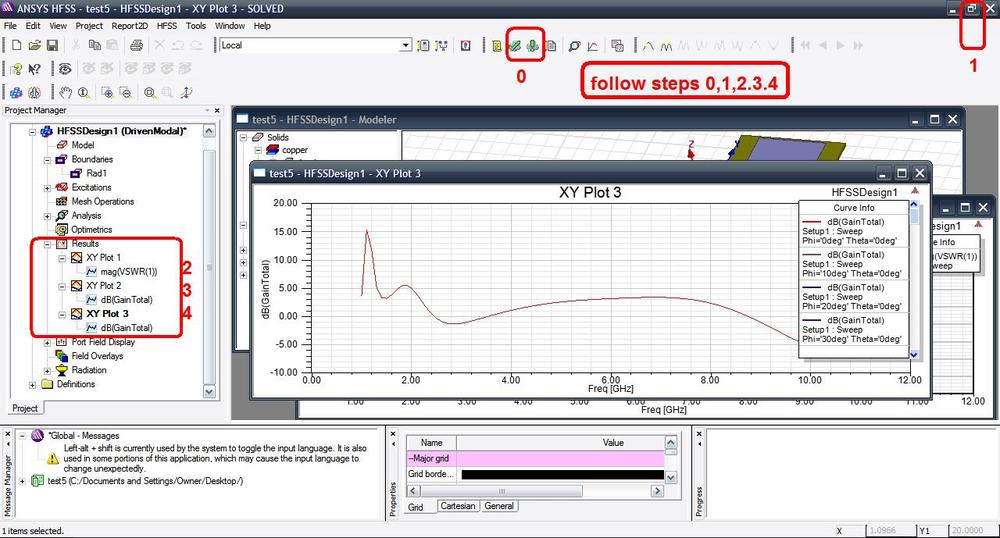

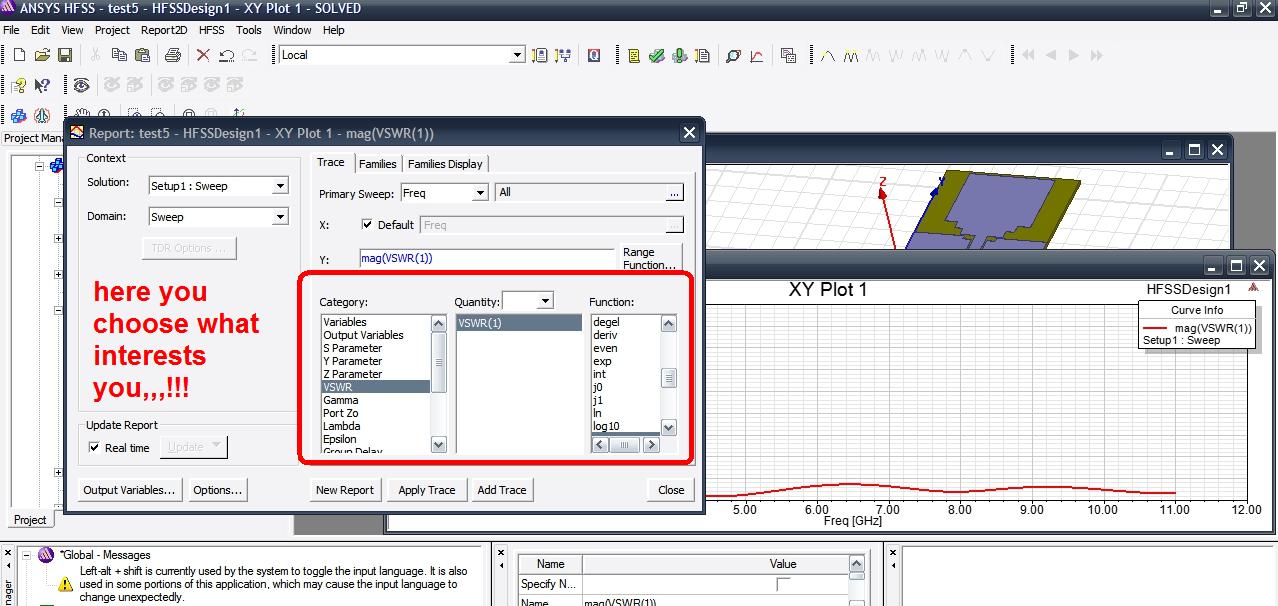

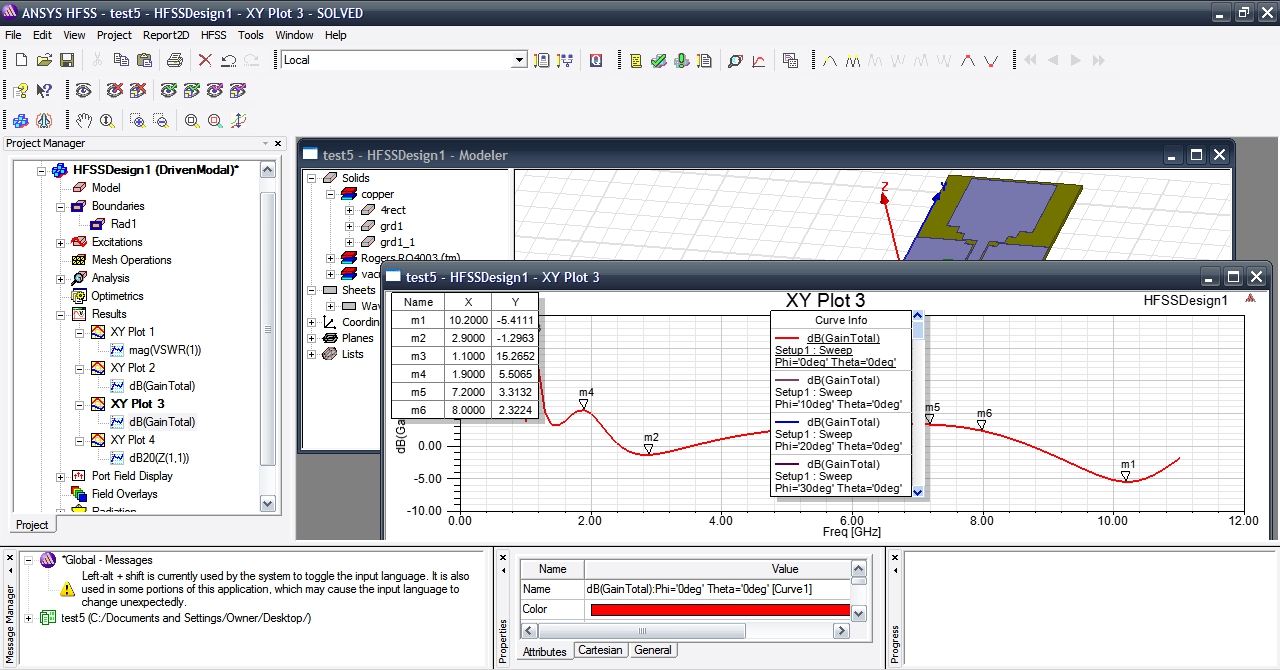

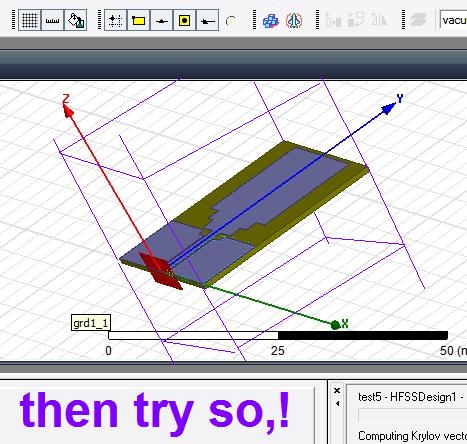

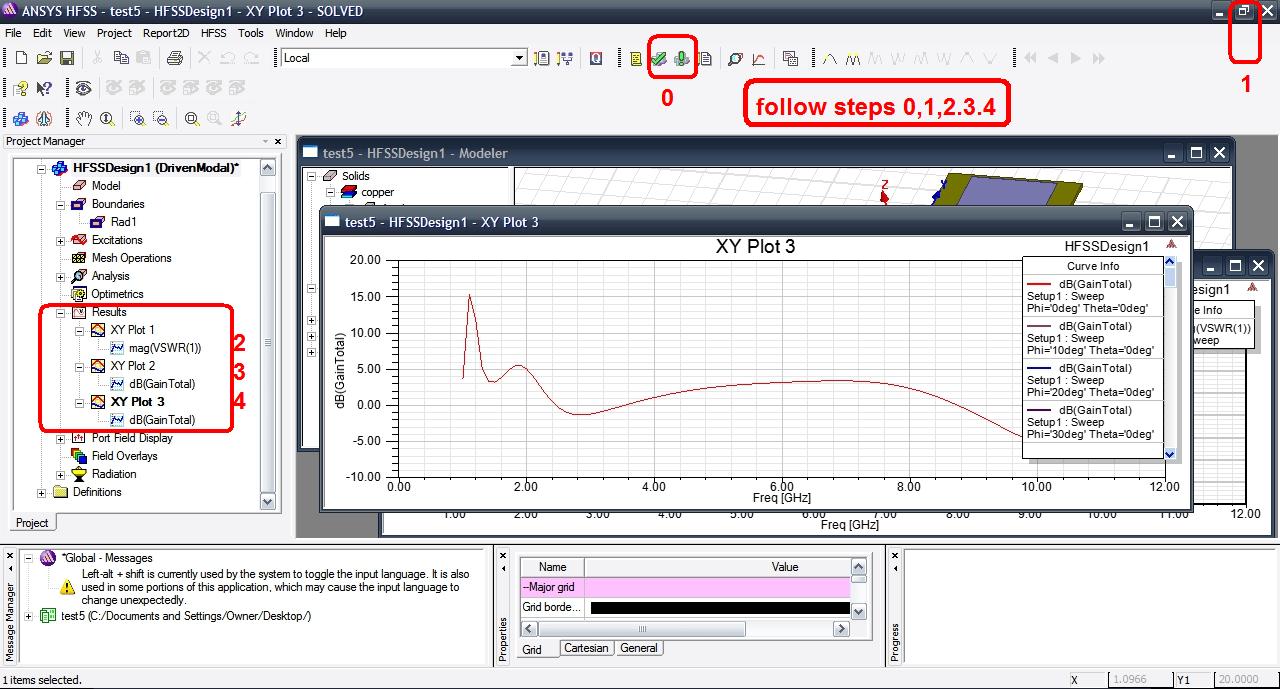

HFSS>Results>Create>,> .,>,,,,,etc

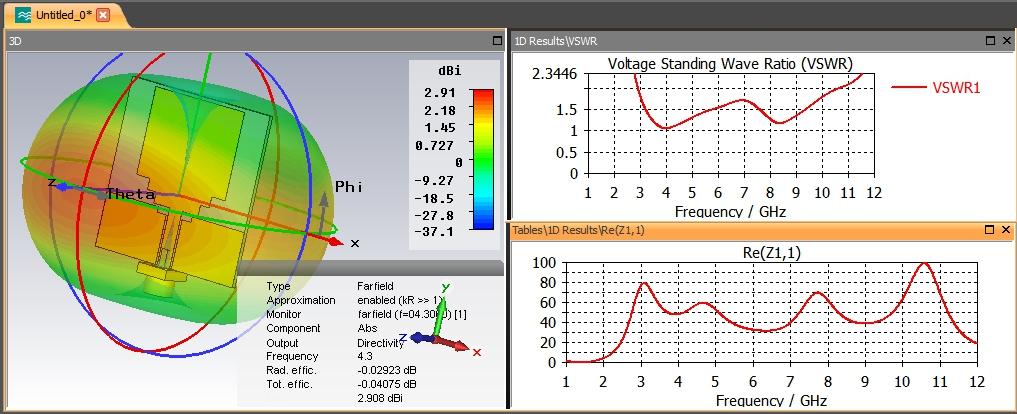

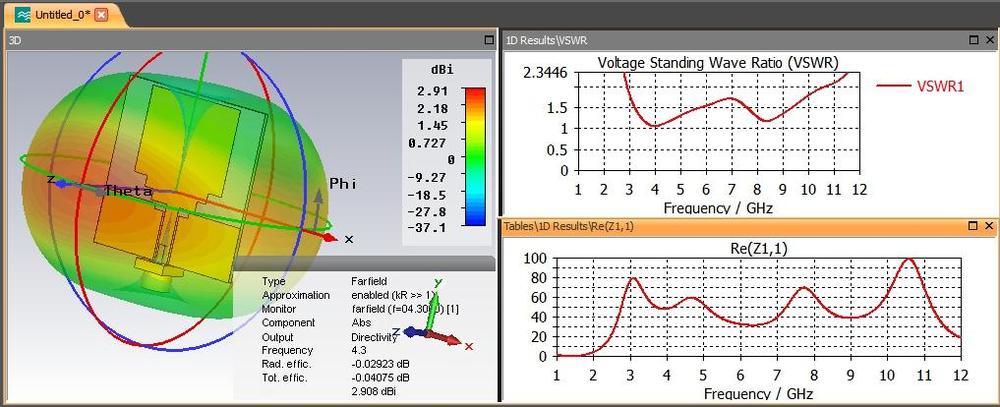

in CST is another situation,,,!!!!


Share this post


Link to post
Share on other sites

Hello,  good evening, did you find any mistakes in my antenna design steps..  if so please correct me :) .  if I  repeat the same steps to design any antenna will it give me good practical result?.

Share this post


Link to post
Share on other sites

Thank you... i will modify the design and will post it soon ...:)



Share this post


Link to post
Share on other sites

Hello, I have modified the design ...I used PEC cap on the wave port to avoid warnings from hfss because only lumped ports can be defined inside radiation box... The VSWR plot is now degraded a lot at lower frequencies ...i am attaching the file  please checkout it.

test5.hfss

Share this post


Link to post
Share on other sites

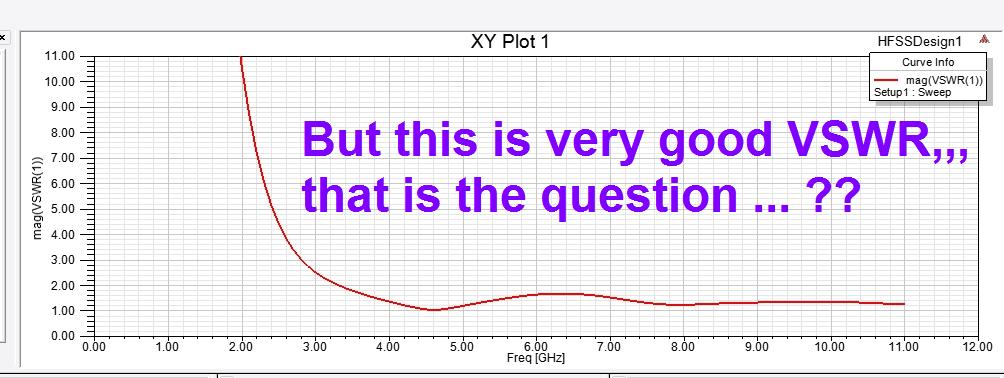

No, it's not good enough ...I have got better VSWR response when the wave port is not defined inside radiation box( the plot is available on this page only)

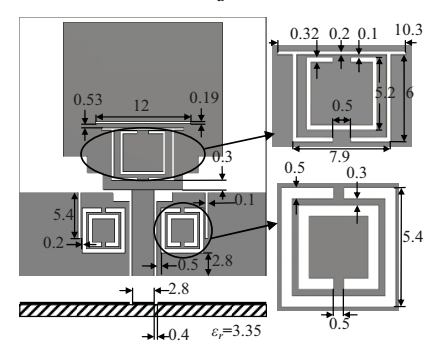

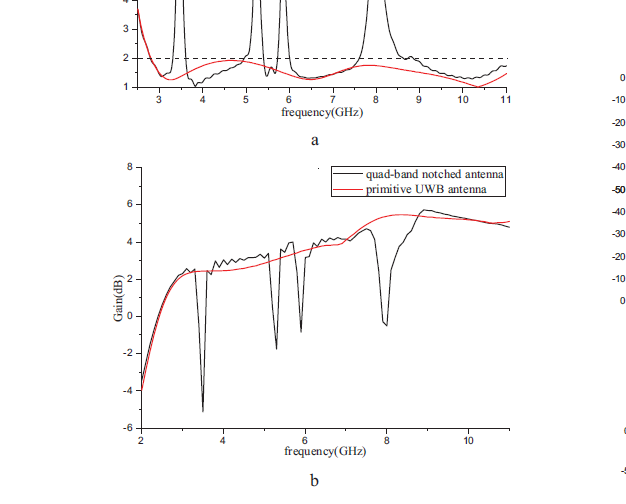

the above image is from the base paper .... there were three dips at near 3GHZ, around 6.5 GHz, and around 10.5 GHz. I want to reproduce exact VSWR response. What should i DO?

Edited by sandeepv

Share this post


Link to post
Share on other sites

,,,but this it"s CPW monopole antenna with quadruple band-notched..!!!


Share this post


Link to post
Share on other sites
48 minutes ago, sandeepv said:

so you want me to stick to the previous design ?

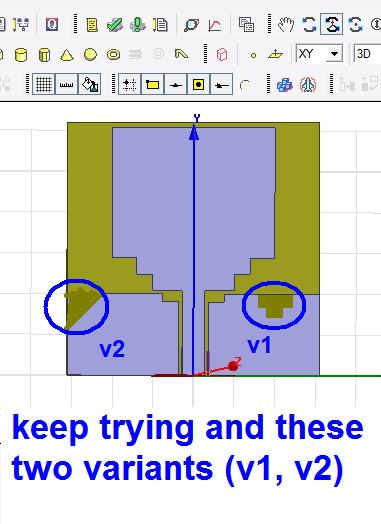

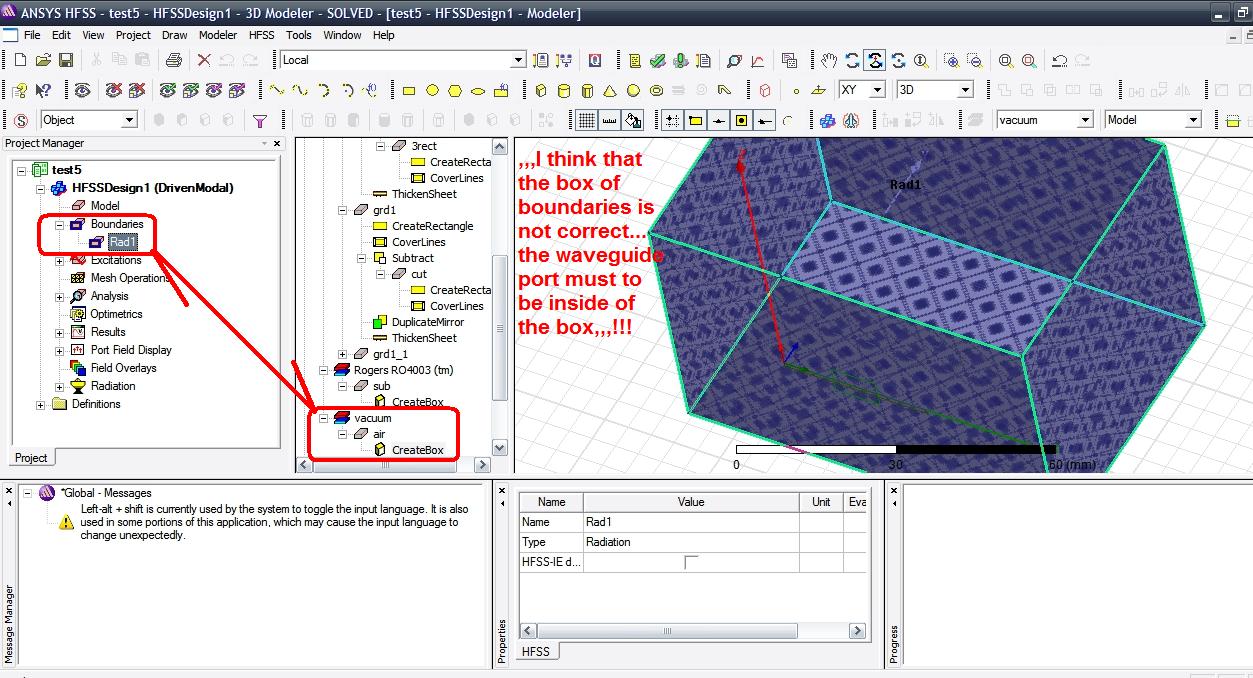

,,,no,it"s another kind of boundaries box...!!!!

Share this post


Link to post
Share on other sites

ok, ..please tell me what I have to do in order to reproduce the  base paper results................

Share this post


Link to post
Share on other sites

yes, boundaries i too agree they are important, but i am defining the boundaries as mentioned in HFSS hand book still nothing happens .

Share this post


Link to post
Share on other sites
