UWB antenna

[sandeepv 10]

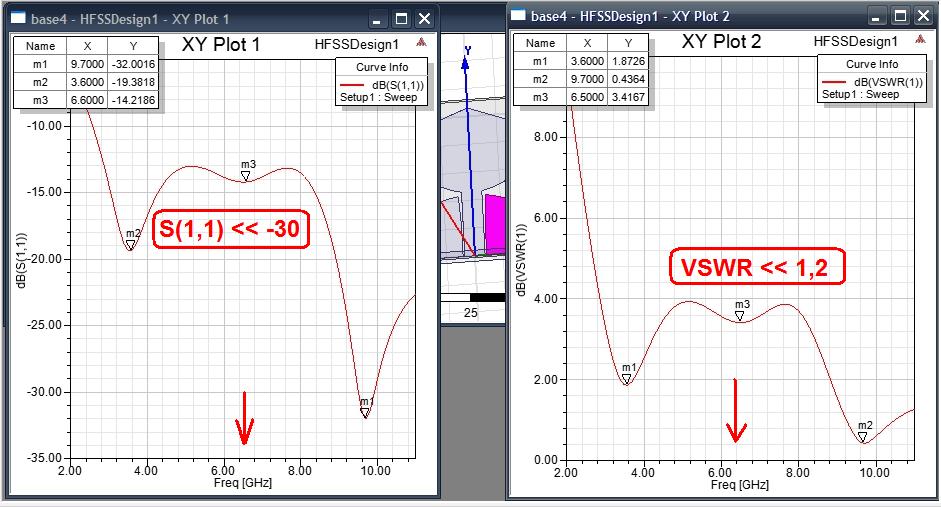

please check this out

base4.hfss

[Admin 2545]



,,,instead of trying FR4, Rogers 5880....!!!

[sandeepv 10]

 in the reference paper they took fr4 substrate. Should I consider rogers 5880.

[Admin 2545]

YES I KNOW, BUT MUST TO BE TRIED

[sandeepv 10]

Jomy can you do me a favour. can you design an SMA connector in hfss that can be used for any antenna?

[Admin 2545]

Just now, sandeepv said:

Jomy can you do me a favour. can you design an SMA connector in hfss that can be used for any antenna?

,,,for microstrip planar antenna...??  with 1.5mm  PCB thickness...??

[sandeepv 10]

Just now, Admin said:

,,,for microstrip planar antenna...??  with 1.5mm  PCB thickness...??

yes. for 1.6mm board thickness

[Admin 2545]

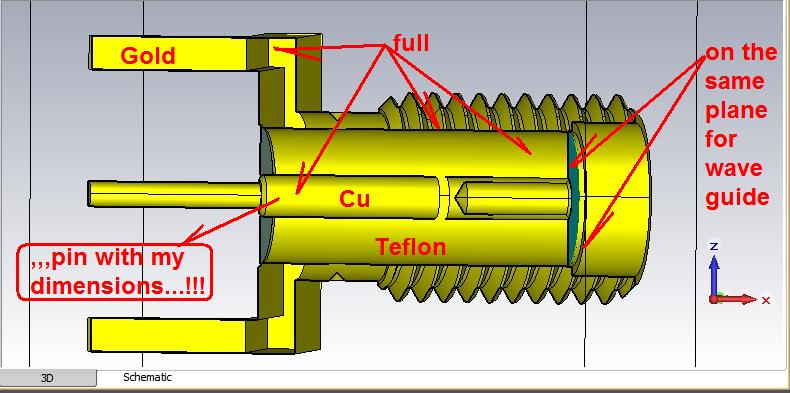

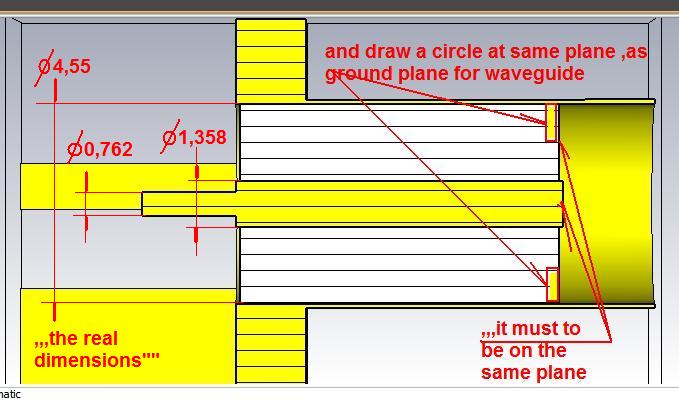

Good my friend, but you made this socket is very good, only be filled walls and is respected dimensions of pin that which I gave them.
also be made in the same plane waveguide port...



[sandeepv 10]

Please attach your sma connector file.

[Admin 2545]

[Admin 2545]

give me only gold threaded body without Teflon

[sandeepv 10]

Jomy please attach your sma connector design

[Admin 2545]

SMA_Connector.zip

[sandeepv 10]

jomy i have that file with me... i  need the sma connector u have designed in either CST or HFSS

[Admin 2545]

Just now, sandeepv said:

jomy i have that file with me... i  need the sma connector u have designed in either CST or HFSS

Ok, but not now, I gotta go...!!!!

[sandeepv 10]

Fine, but please attach ur sma connector.

[Admin 2545]

,,this can work...??

my sma.cst



oo.igs

[sandeepv 10]

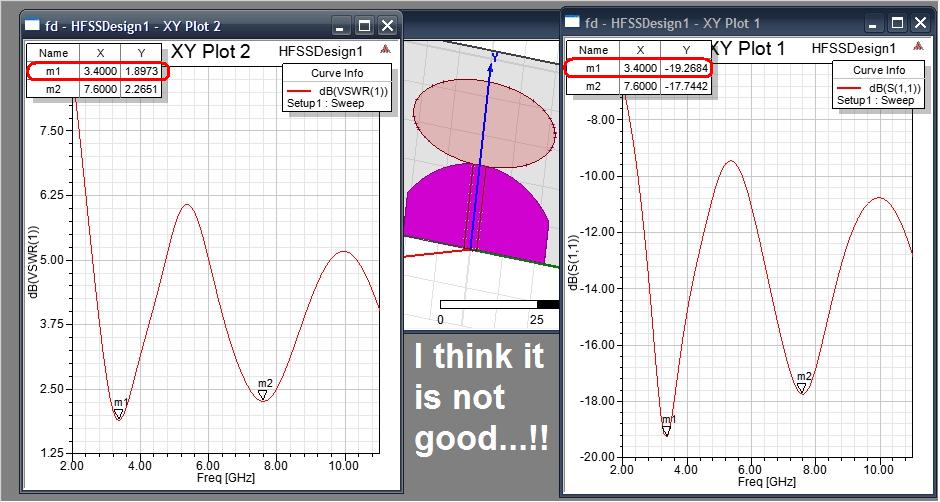

This is another antenna.....

fd.hfss

[sandeepv 10]

jomy can we do a reconfigurable antenna and an array antenna.

[Admin 2545]

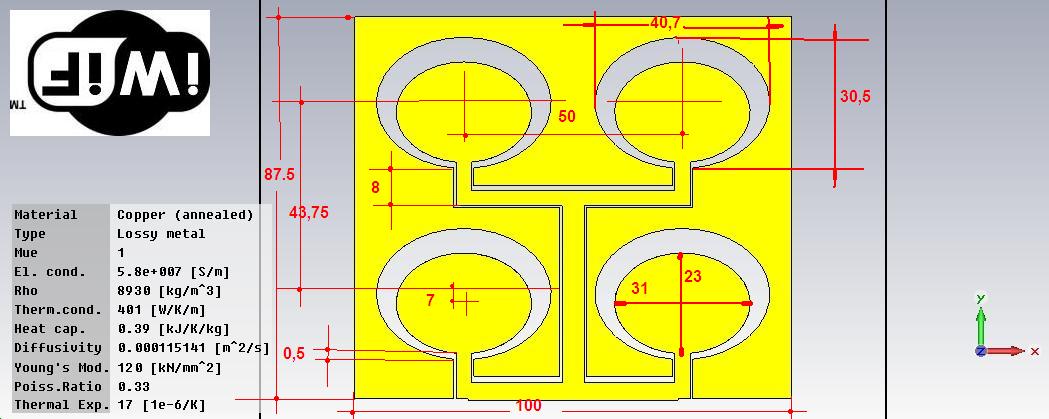

Yes, something like this...

[Admin 2545]

[sandeepv 10]

We got return loss below -10db in almost entire band... I think a small band is not useful. We can obtain by changing port dimension and airbox

[Admin 2545]

6 minutes ago, sandeepv said:

We got return loss below -10db in almost entire band... I think a small band is not useful. We can obtain by changing port dimension and airbox

,,,you can try, but me I would be interested array antenna ////

[sandeepv 10]

Ok... Can you post a simple array antenna structure . I will try.

[Admin 2545]

26 minutes ago, sandeepv said:

Ok... Can you post a simple array antenna structure . I will try.



1-s2.0-S2215098615303700-main.pdf
