Vivaldi Antenna

Started by Admin,

Posted

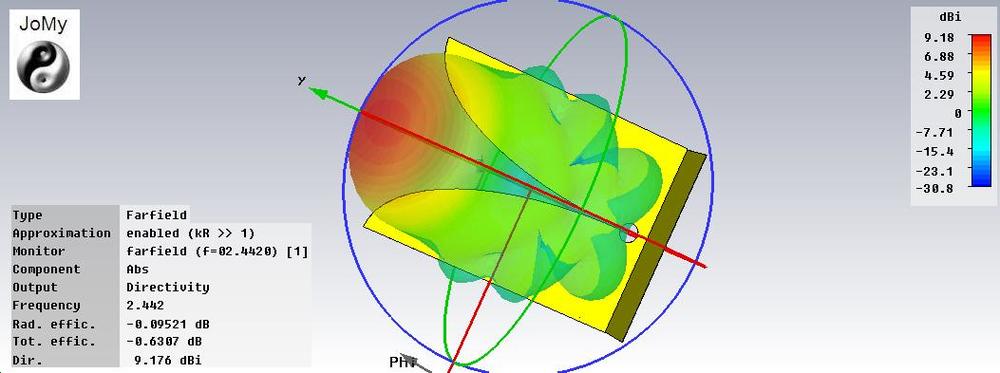

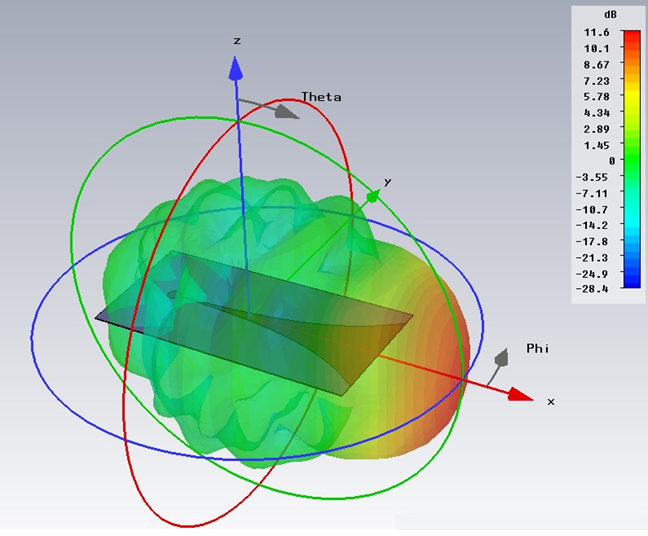

The theory of these antennas from the electrodynamic point of view is very difficult. At the moment, the parameters of such devices are selected empirically with the help of software systems electrodynamic simulation such as CST Microwave Studio...

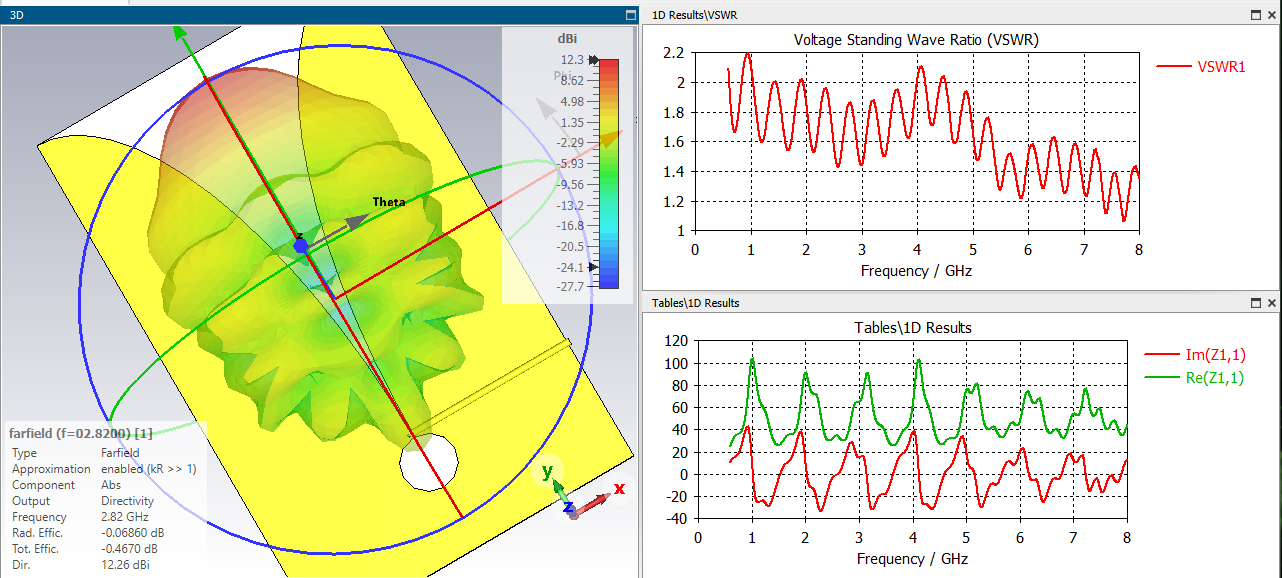

And here's one of my older projects....

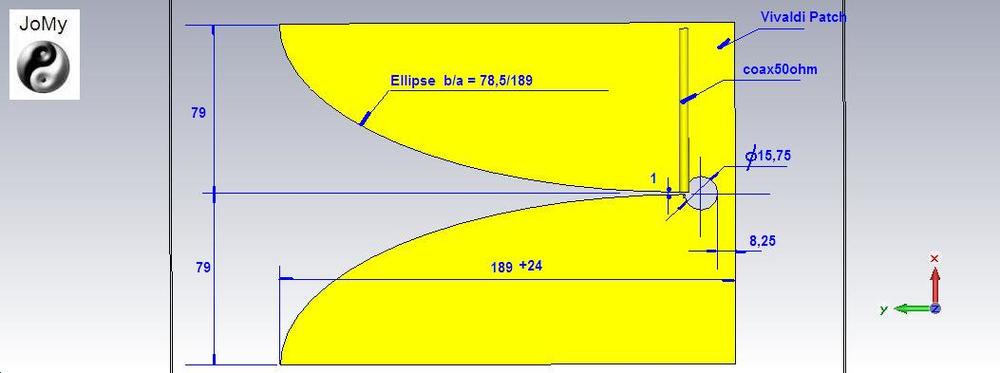

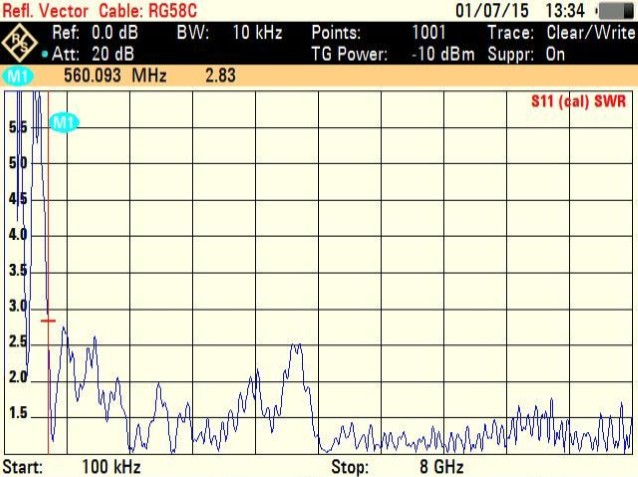

 By pasting a line of triangular adaptation can adjust impedance across the frequency range.


Share this post

Link to post
Share on other sites

Posted

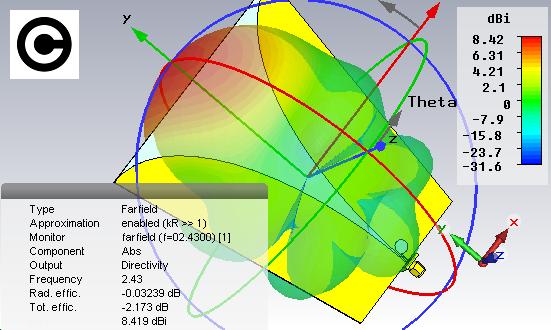

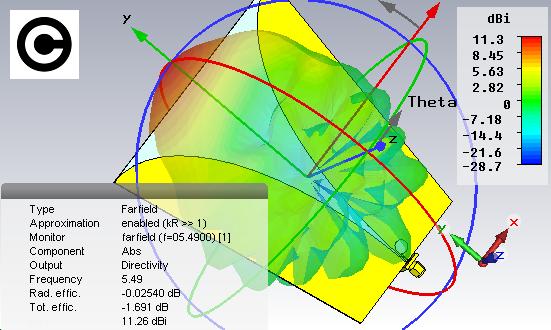

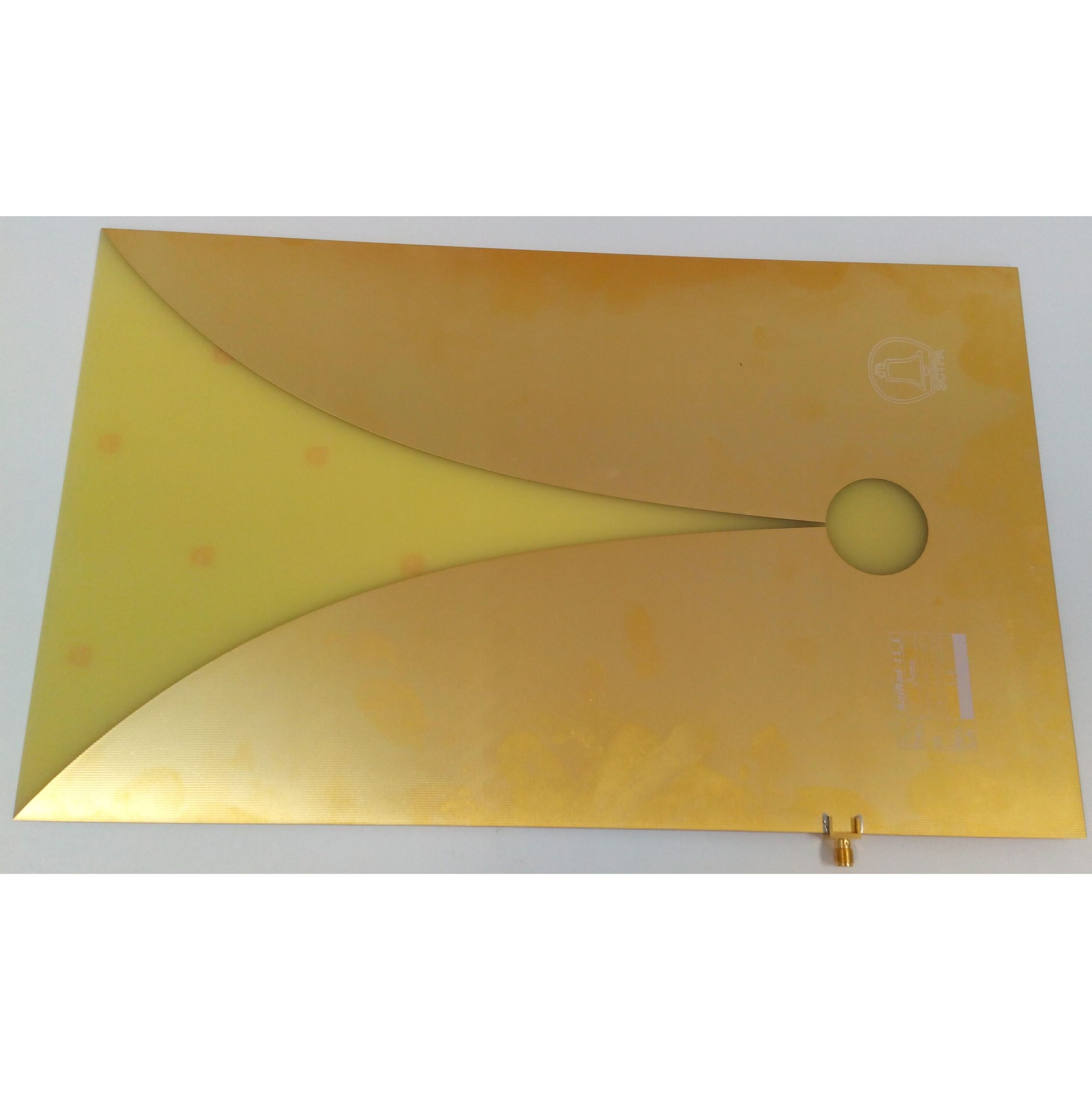

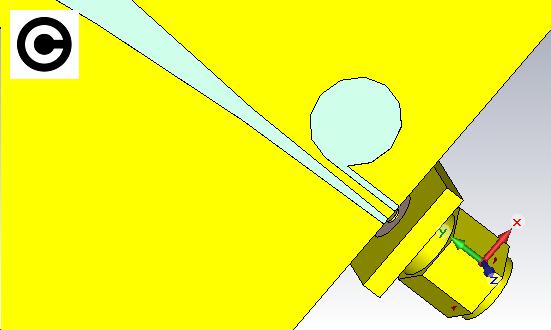

A  Vivaldi antenna dual band version on the PCB....




1 person likes this

Share this post

Link to post
Share on other sites

Posted

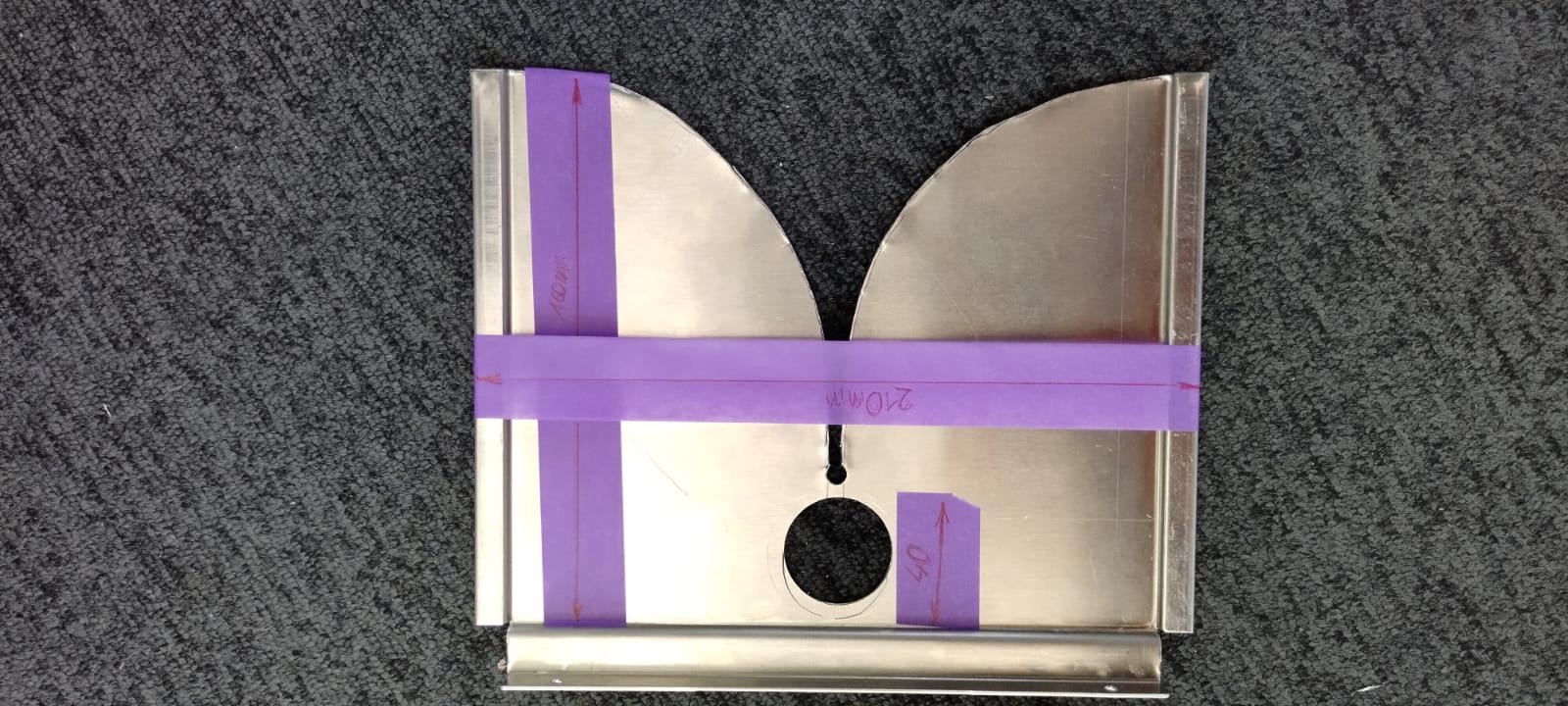

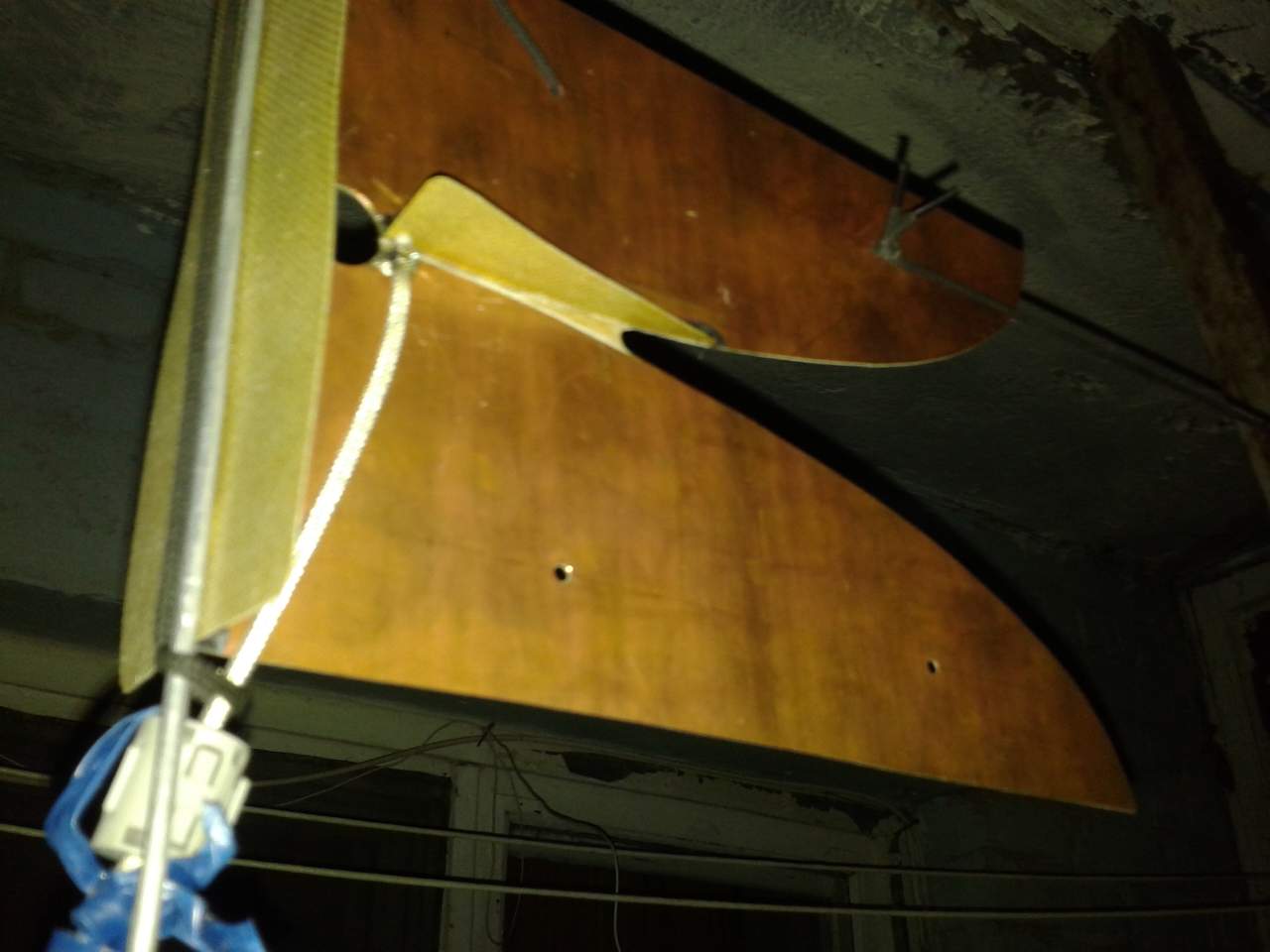

Vivaldi in progres, Im waiting for bigger drill

I do not know completely what the result will be, I make from garbage.
